Worcester Greenstar 8000 Life GR8300iW 30 R

Technical Specifications/Logs
Greenstar 8000 Life – 6720883866 (2019/04)
72
12.6 Electrical wiring

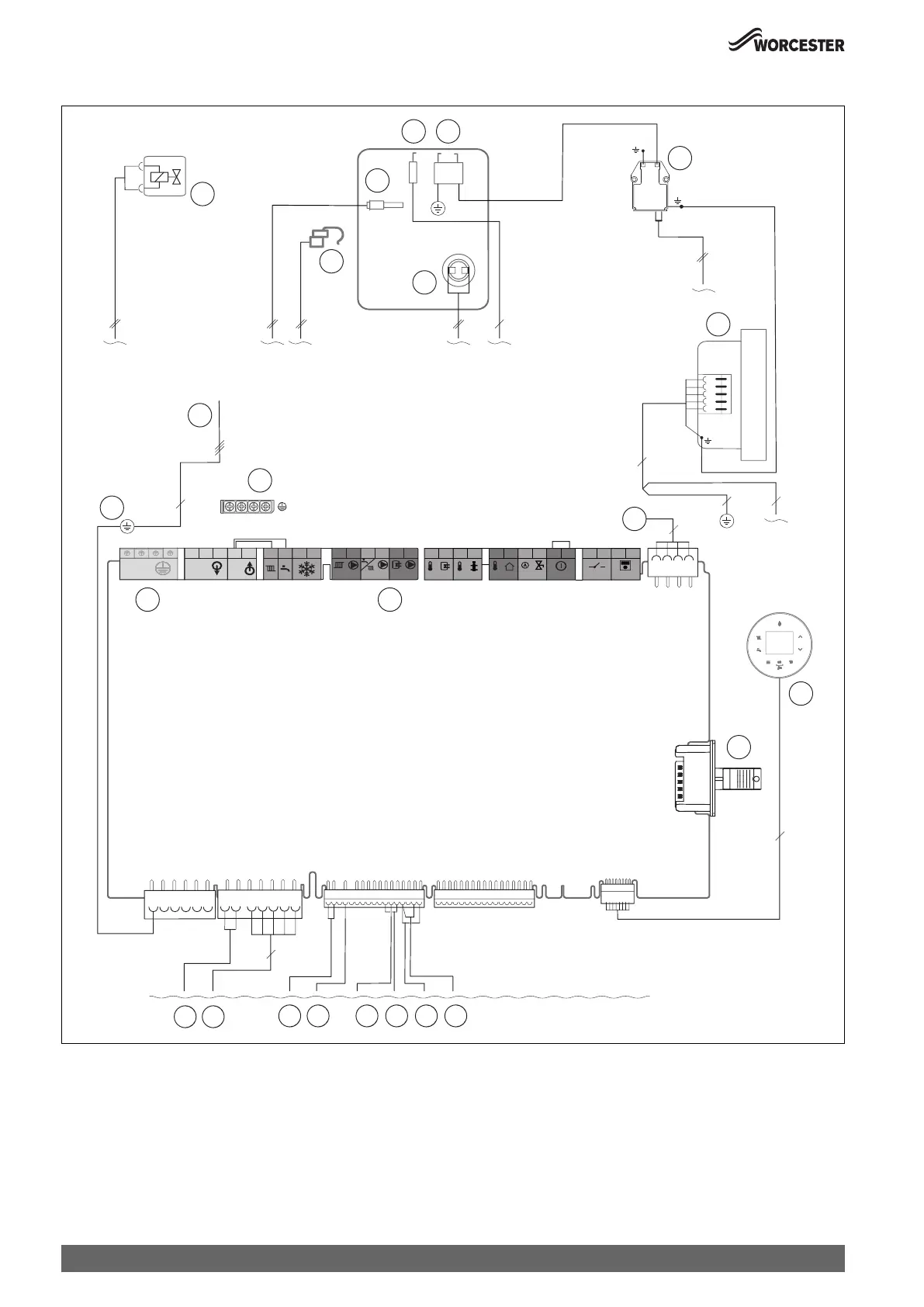

Fig. 98 Electrical wiring
[1] Air/gas ratio control valve
[2] Flow temperature sensor at flow pipe
[3] Flow temperature sensor at heating block
[4] Flame sensing electrode
[5] Ignition electrode
[6] Heating block temperature limiter
[7] Ignition transformer
[8] Fan
[9] Connecting lead for KEY slot
[10] Display
[11] Code plug
[12] Terminal strip for external accessories ( terminal assignment
Tab. 13)
[13] Connecting lead
[14] Earth (PE)
[15] Earth bar
[16] Not used
