CI62L+RTL SPECTROPHOTOMETER
12
USER INTERFACE

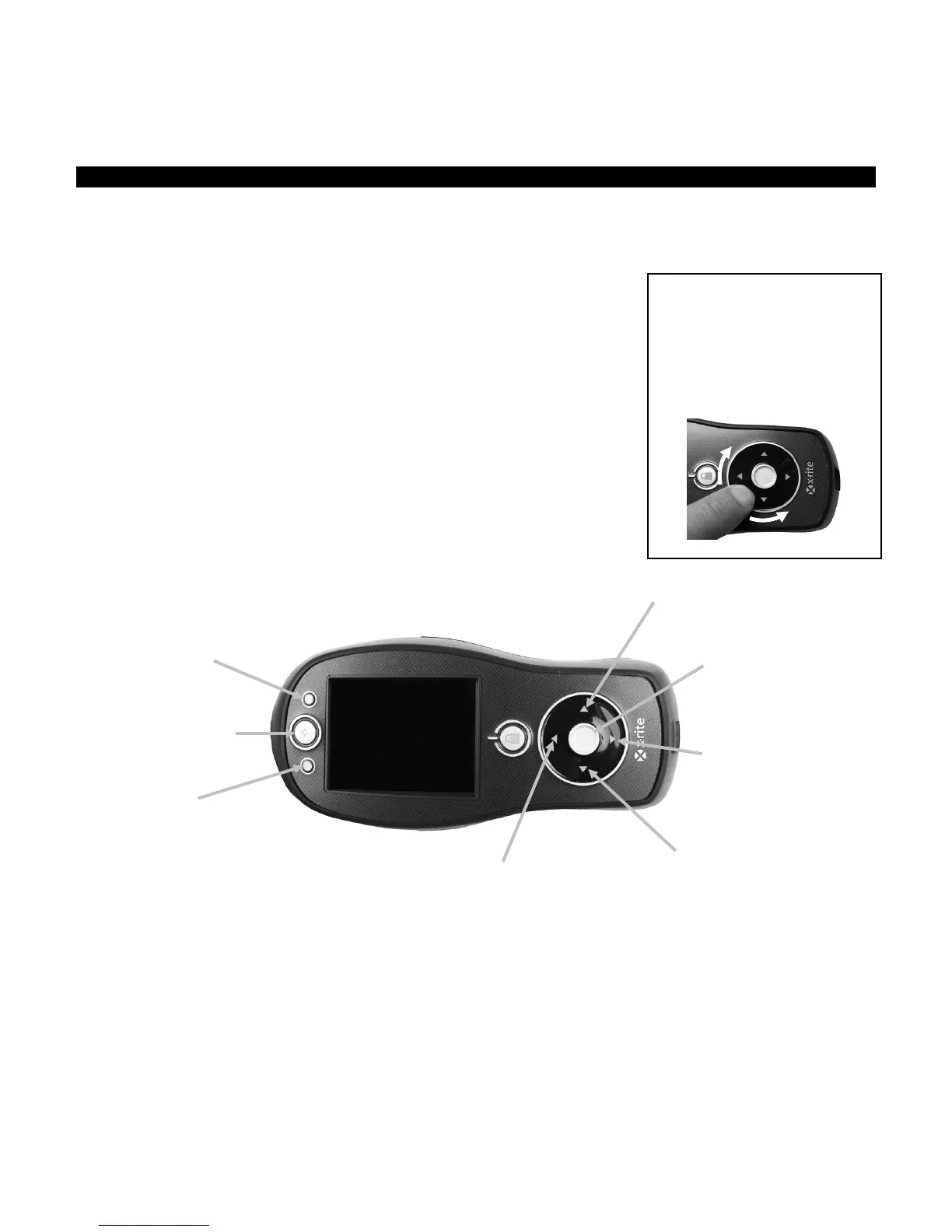

Instrument Controls
The instrument controls are used to navigate the screen, select options, and perform
measurements.
Navigation Control (up, down, left, right and center)
The navigation control moves the focus of the highlight around the
screen. Tapping on the left side moves the focus to the next
available item to the left. Tapping on the right side moves the focus
to the next available item to the right. The up and down sides
perform the same function, only in an up and down direction.
Tapping on the center of the control selects the item that has focus,
such as a mode or option.
NOTE: If at any time the navigation control become non-
responsive, turning the instrument off and then back on will reset
their operation.
Measure Button
The Measure button is located at the front of the instrument. The
button can be configured to initiate a measurement or be used in
conjunction with the read switch.
LED Indicators
Multi-color LEDs located at the front of the instrument provide visual feedback on the status of a
measurement. The LEDs will turn off after 5 seconds.
• Green: Indicates a successful measurement has taken place. Flashing green LEDs indicates
that the instrument is at an idle state waiting for a measurement.
• Amber: Indicates a measurement is in progress.
• Red: Indicates a measurement error has occurred.
You can also use the
navigation control to
rapidly scroll through a list
by touching the control
between the arrows and
circle left or right.
