Xantrex Freedom HF User Manual

Display Panel
975-0390-01-01 21
Display Panel
FREEDOM HF
Input Voltage (V)
Select
STATUS
Battery
Fault
Utility
Input Current (A)
Output Power (kW)
1
3
2
4

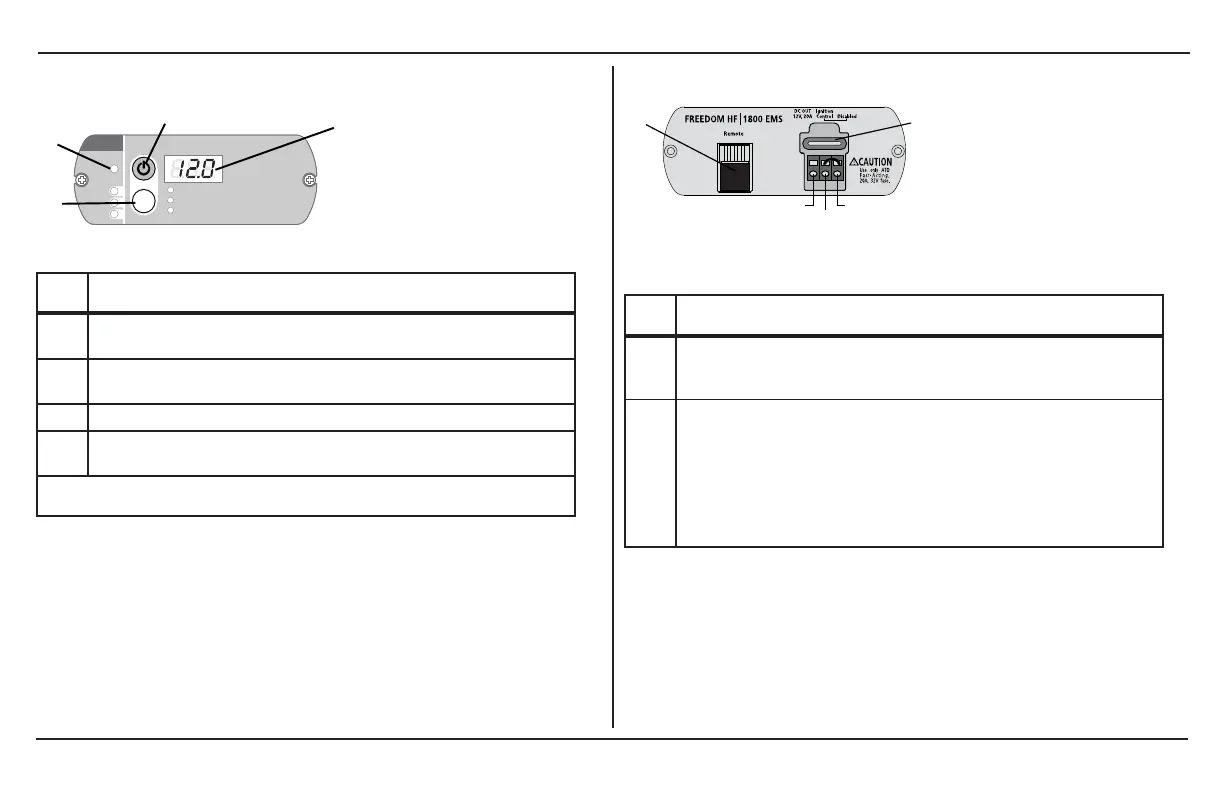

Figure 9 Display Panel (All Models)
Item Description
1 Inverter Power button is the main unit switch that turns the
Freedom HF’s inverter function ON or OFF.
2 Three-digit LED display screen shows status information and
fault codes.
3 Status LED indicates the mode of operation with a three-color LED.
4 Select button changes status information displayed on the display
screen.
IMPORTANT: See Display Panel Operation on page 29 for detailed information on operating the panel’s
buttons
Remote and Power Module Panel
1
2
a
b
c
Figure 10 Remote and Power Module Panel (Freedom HF 1055
EMS,1800 EMS)
Item Description
1 Remote jackis used for connecting the Displaypanelthat ships with
the Freedom HF 1055 EMS and 1800 EMS. Each shipment comes
with a 25-foot communications cable as well.
2 Power module has one fuse and three contactsfor wires that
connect to:
a.an auxiliary 12-volt DC OUT terminal,
b.an Ignition Control terminal, and
c.a Disable terminal.
NOTE: The Ignition Control and Disable terminals are connected by a jumper wire that acts to
disable ignition control. Removing the jumper wire will enable ignition control.
For instructions on how to enable or disable Ignition Control, see
the Installation Guide.

Xantrex Freedom HF Specifications

General

Output Voltage	120 VAC
Output Frequency	60 Hz
Input Voltage	12 VDC
Waveform	Modified Sine Wave
Surge Power	3600W
Operating Temperature	0°C to 40°C
Efficiency	90%
Protection Features	Overload, Over temperature, Short circuit
