Xantrex Freedom HF User Manual

Front Panel
975-0390-01-01 17
Front Panel
1
2
4
4
3a 3b

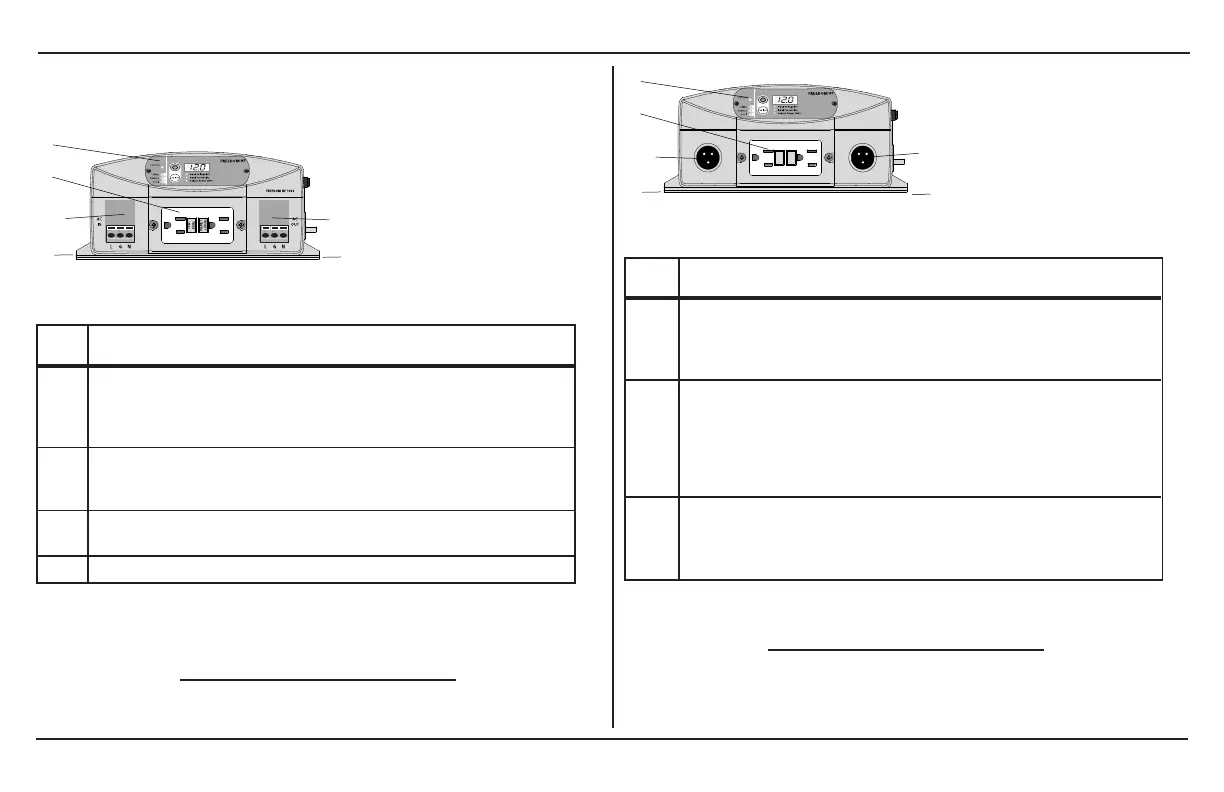

Figure 2 Front Panel (Freedom HF 1000, 1055, 1500, 1800)
Item Description
1 Display panel displays inverter status and battery status
information on the screen. The panel can be detached to expose the
dip switches behind it and to extend and mount the panelon a wallor
other location.
2 GFCI receptacles during inverter mode provide 1000 watts
(Freedom HF 1000, 1055) or 1500 watts (Freedom HF 1500) or
1800 watts (Freedom HF 1800) of power to operate AC devices.
3 WAGO
a
AC terminals for connecting AC input (3a) and AC output
(3b) wiring.
4 Mounting flange allows you to mount the inverter permanently.
a
WAGO® manufactures connection devices such as terminal blocks and related accessories. Freedom
HF models indicated above use WAGO terminal blocks as AC input and output connections.
RESET
TEST
TEST
RESET
FREEDOM HF 1800 T
1
2
4 4
3a
3b
Figure 3 Front Panel (Freedom HF 1800 T)
Item Description
1 Display panel displays inverter status and battery status
information on the screen. The panel can be detached to expose the
dip switches behind it and to extend and mount the panelon a wallor
other location.
2 GFCI receptacles provide 1800 watts of power to operate AC
devices. The GFCI unit can be detached and reinstalled to a
separate location. Replace the GFCI unit with the GFCI blanking
plate with knockout. The GFCI unit isalso removed to access the AC
wiring compartment for hard wiring the inverter to an existing AC
power system.
3
(for806-
1840-
01)
(3a) Male PTI
b
Connector for plugging in a compatible AC Input
cordset cable with a female PTI plug. (3b) Female PTI Connector
for plugging in a compatible AC Output cordset cable with a male PTI
plug.
b
The electrical cables with PTI connectors (manufactured by Phillips & Temro Industries) referred to in
this manual are custom cables that are available for the trucking industry. For Freedom HF 1800 T (806-
1840-01), use a 15A PTI custom cable with connector. For Freedom HF 1800 T (806-1840-03, 806-1840-
05), use a 20A PTI custom cable with connector.

Xantrex Freedom HF Specifications

General

Output Voltage	120 VAC
Output Frequency	60 Hz
Input Voltage	12 VDC
Waveform	Modified Sine Wave
Surge Power	3600W
Operating Temperature	0°C to 40°C
Efficiency	90%
Protection Features	Overload, Over temperature, Short circuit
