Xantrex Freedom HF User Manual

Inverter Overload Operation
975-0390-01-01 41

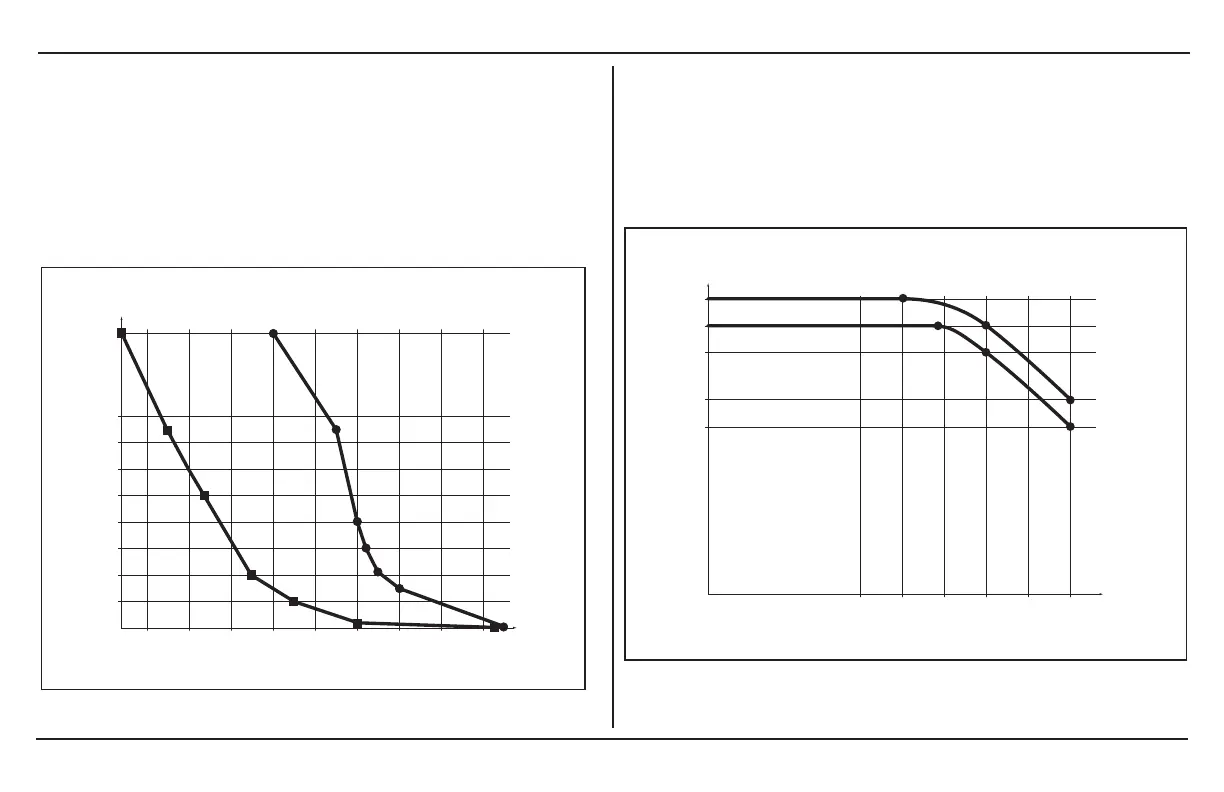

Inverter Overload Operation
This graph shows how long (measured in milliseconds) the
Freedom HF will operate for a given output current (measured in
Amps).
Both the Freedom HF 1000/1055 models and Freedom HF
1500/1800 models are represented in the illustration below.
The graph illustrates surge operation at 25 °C.
0
10 12 14 16 18 20 30 40 50
200
400
600
800
1000
1200
1400
1600
4000
Freedom HF 1000/1055 Freedom HF 1500/1800
Time (ms)
Output Current (amps)
Invert Power Derating vs.
Ambient Temperature
If the unit is in inverter mode and in elevated ambient temperature
above 25 °C, you will have to reduce power draw according to the
following chart to avoid over-temperature shutdown.
25 30 35 40 45 50
750
800
850
900
1000
@12.5 volts
30°C
900 watts
800 watts
750 watts
850 watts
~33°C
@11.5 volts
Freedom HF 1000/1055
watts
°C

Xantrex Freedom HF Specifications

General

Output Voltage	120 VAC
Output Frequency	60 Hz
Input Voltage	12 VDC
Waveform	Modified Sine Wave
Surge Power	3600W
Operating Temperature	0°C to 40°C
Efficiency	90%
Protection Features	Overload, Over temperature, Short circuit
