Xantrex Freedom HF User Manual

Front Panel
18 Freedom HF Owner's Guide
Item Description
3
(for806-
1840-
03)
(3a) Female PTI Connector
b
for plugging in a compatible AC
Output cordset cable with a male PTI plug. (3b) Male PTI
Connector for plugging in a compatible AC Input cordset cable with
a female PTI plug.
4 Mounting flange allows you to mount the inverter permanently.
RESET
TEST
TEST
RESET
FREEDOM HF 1800 T
1
2
4
4
3a 3b
FREEDOM HF
InputVoltage (V )
Select
STATUS
Battery
Fault
Utility
Input Current (A)
Output Power (kW)
5

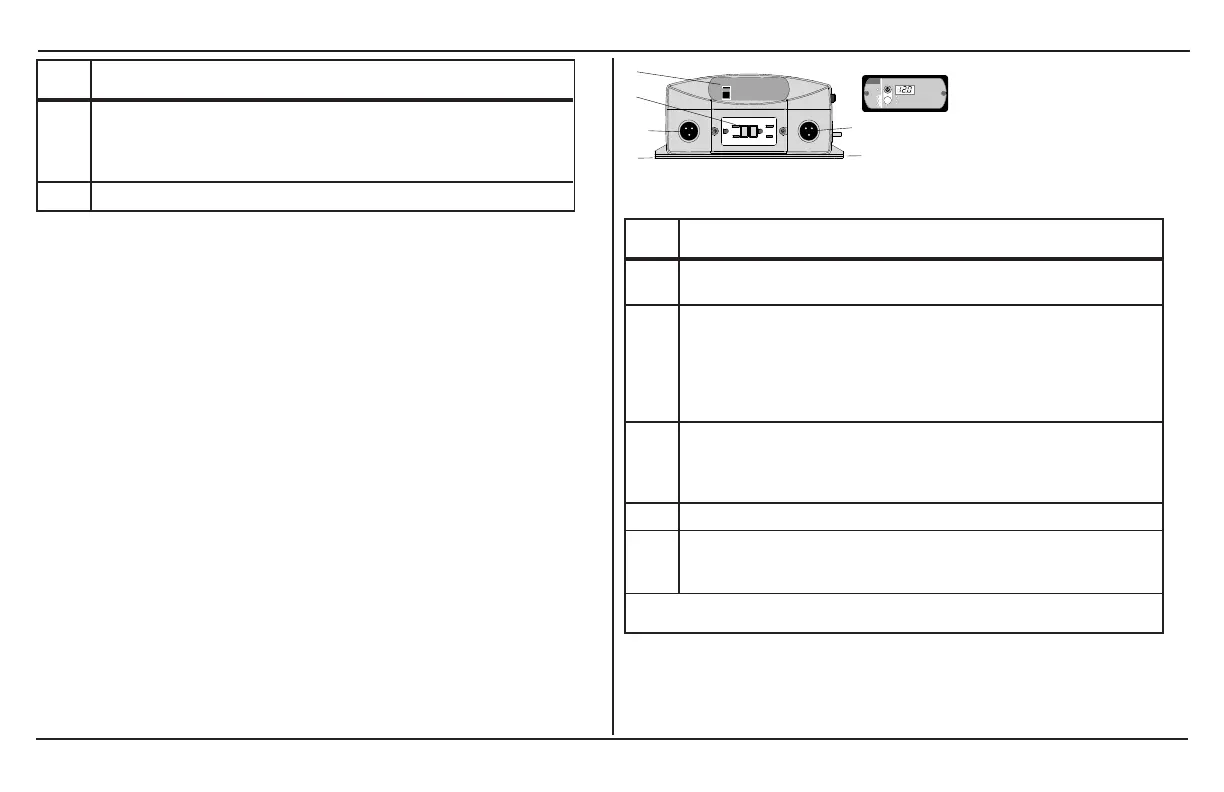

Figure 4 Front Panel (Freedom HF 1800 T)
Item Description
1 RJ12 with cover plate contains the RJ12 port for the remote
panel.
2 GFCI receptacles provide 1800 watts of power to operate AC
devices. The GFCI unit can be detached and reinstalled to a
separate location. Replace the GFCI unit with the GFCI blanking
plate with knockout. The GFCI unit isalso removed to access the AC
wiring compartment for hard wiring the inverter to an existing AC
power system.
3
(for806-
1840-
04)
(3a) Male PTI Connector for plugging in a compatible AC Input
cordset cable with a female PTI plug. (3b) Female PTI Connector for
plugging in a compatible AC Output cordset cable with a male PTI
plug.
4 Mounting flange allows you to mount the inverter permanently.
5 Remote panel with bezel contains the display panel which shows
inverter status and batterystatus information on the screen. Mount
the remote panel on a wall or other location.
NOTE: Freedom HF 1800 T (806-1840-04) comes with the remote panel with bezel and no other spare
parts in the package.

Xantrex Freedom HF Specifications

General

Output Voltage	120 VAC
Output Frequency	60 Hz
Input Voltage	12 VDC
Waveform	Modified Sine Wave
Surge Power	3600W
Operating Temperature	0°C to 40°C
Efficiency	90%
Protection Features	Overload, Over temperature, Short circuit
