Xantrex Freedom HF User Manual

Front Panel
975-0390-01-01 19
RESET
TEST
TEST
RESET
FREEDOM HF 1800 T
1
2
4 4
3a
3b

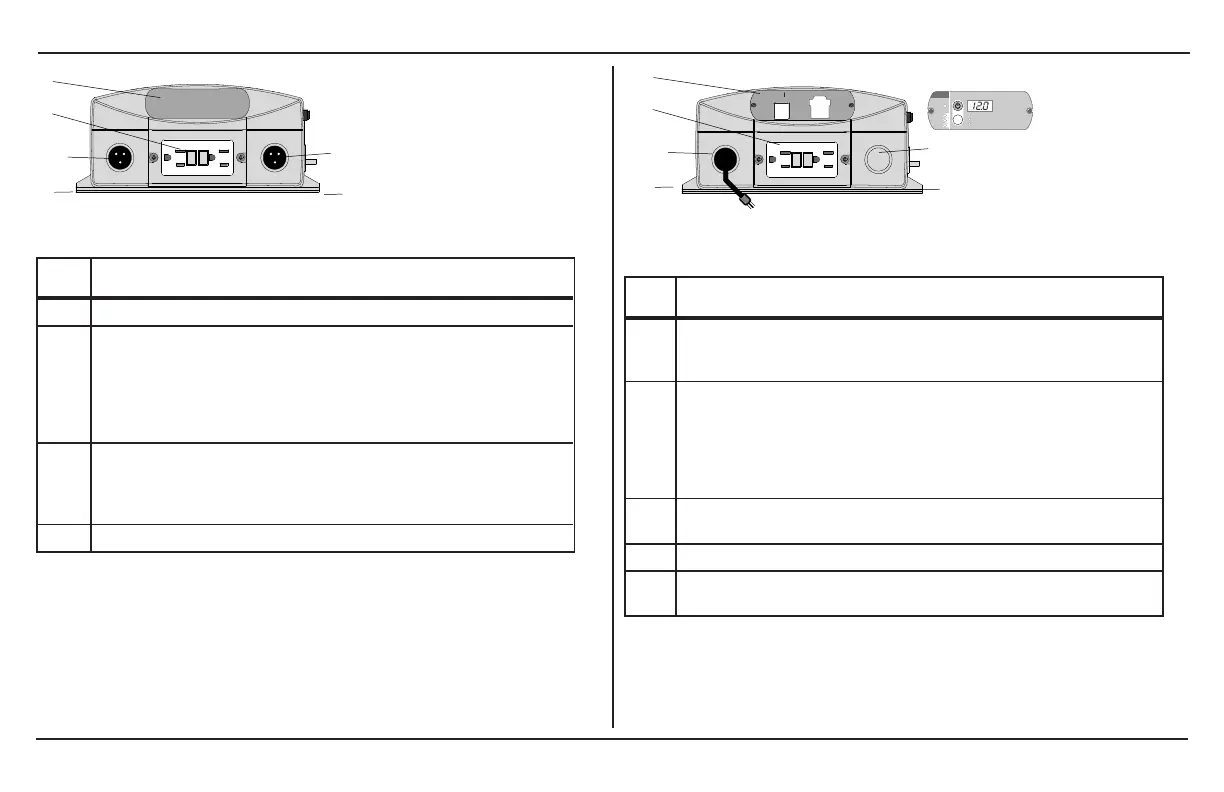

Figure 5 Front Panel (Freedom HF 1800 T)
Item Description
1 Cover plate.
2 GFCI receptacles provide 1800 watts of power to operate AC
devices. The GFCI unit can be detached and reinstalled to a
separate location. Replace the GFCI unit with the GFCI blanking
plate with knockout. The GFCI unit isalso removed to access the AC
wiring compartment for hard wiring the inverter to an existing AC
power system.
3
(for806-
1840-
05)
(3a) Female PTI Connector
b
for plugging in a compatible AC
Output cordset cable with a male PTI plug. (3b) Male PTI
Connector for plugging in a compatible AC Input cordset cable with
a female PTI plug.
4 Mounting flange allows you to mount the inverter permanently.
RESET
TEST
TEST
RESET
FREEDOM HF 1800 EMS
12V
Power
12V
Enable
Ignition
Control
Remote
FREEDOM HF 1800 EMS
FREEDOM HF
Input Voltage( V)
Select
STATUS
Battery
Fault
Utility
Input Current (A)
Output Power (kW)
1
2
4 4
5
3a 3b
Figure 6 Front Panel (Freedom HF 1055 EMS,1800 EMS)
Item Description
1 Power module contains 12-volt DC terminals for ignition controls,
an auxiliary power source, and a remote port for attaching the display
panel using a communications cable.
2 GFCI unit receptacles provide 1000 watts (1055 EMS) and 1800
watts (1800 EMS) of power to operate AC devices. The GFCI unit
can be detached and reinstalled to a separate location. Replace the
GFCI unit with the GFCI blanking plate with knockout. The GFCI unit
is also removed to access the AC wiring compartment for hard wiring
the inverter to an existing AC power system.
3 (3a) 18-inch (0.45m) AC Input electrical cord with 3-prong plug.
(3b) Knockout for routing AC output wiring.
4 Mounting flange allows you to mount the inverter permanently.
5 Display panel displays inverter status and battery status
information on the screen. Mount the panelon a wallor other location

Xantrex Freedom HF Specifications

General

Output Voltage	120 VAC
Output Frequency	60 Hz
Input Voltage	12 VDC
Waveform	Modified Sine Wave
Surge Power	3600W
Operating Temperature	0°C to 40°C
Efficiency	90%
Protection Features	Overload, Over temperature, Short circuit
