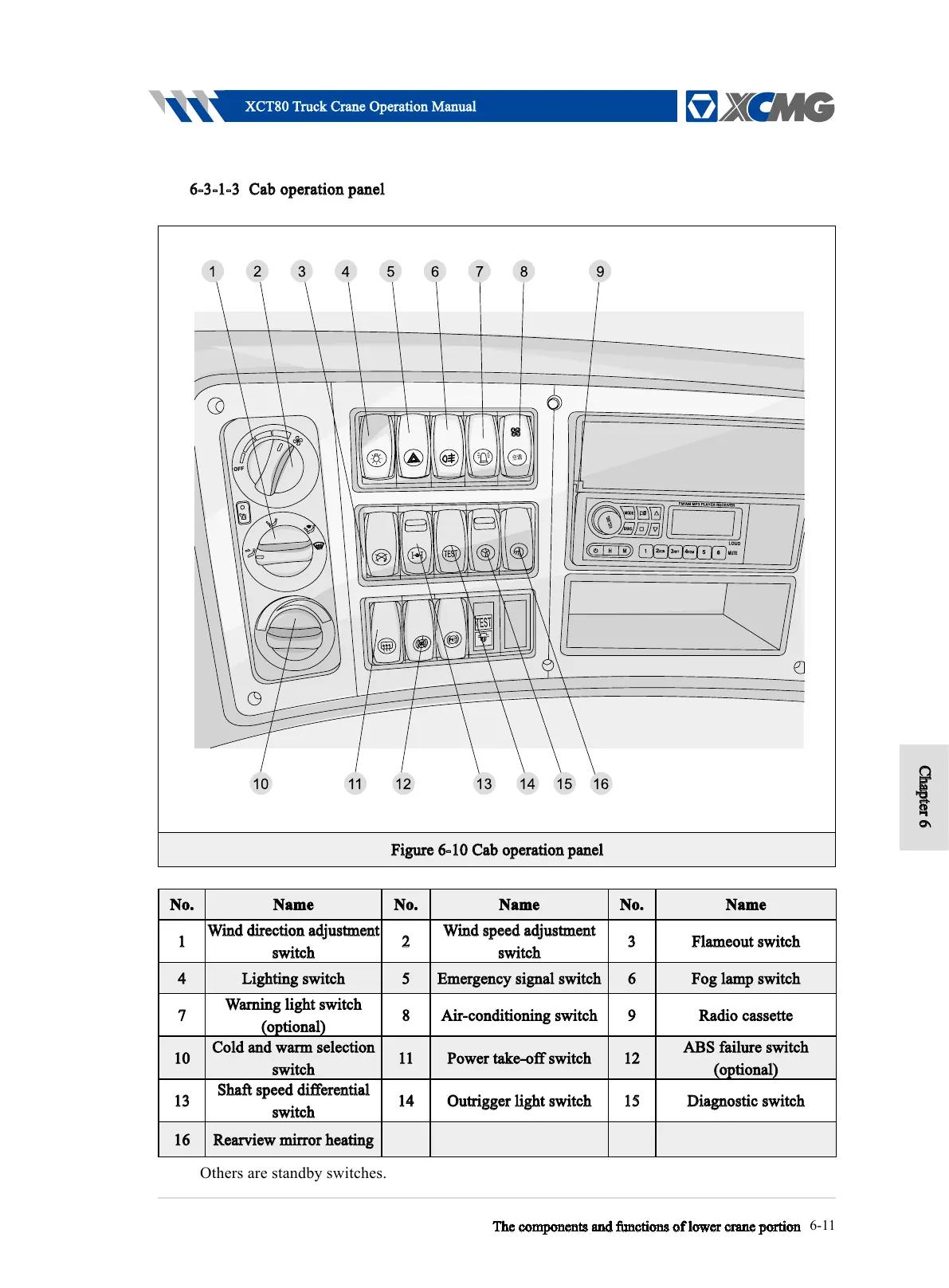

Figure 6-10 Cab operation panel
6-3-1-3 Cab operation panel
Others are standby switches.
The components and functions of lower crane portion
Chapter 6
No. Name No. Name No. Name
1
Wind direction adjustment
switch
2
Wind speed adjustment
switch
3 Flameout switch
4 Lighting switch 5 Emergency signal switch 6 Fog lamp switch
7
Warning light switch
(optional)
8 Air-conditioning switch 9 Radio cassette
10
Cold and warm selection
switch
11 Power take-off switch 12
ABS failure switch
(optional)
13
Shaft speed differential
switch
14 Outrigger light switch 15 Diagnostic switch
16 Rearview mirror heating
