Maintenance
198
Xerox
®
WorkCentre
®
7220/7220i/7225/7225i Co
lor Multifunc
tion Printer
User G
uid
e

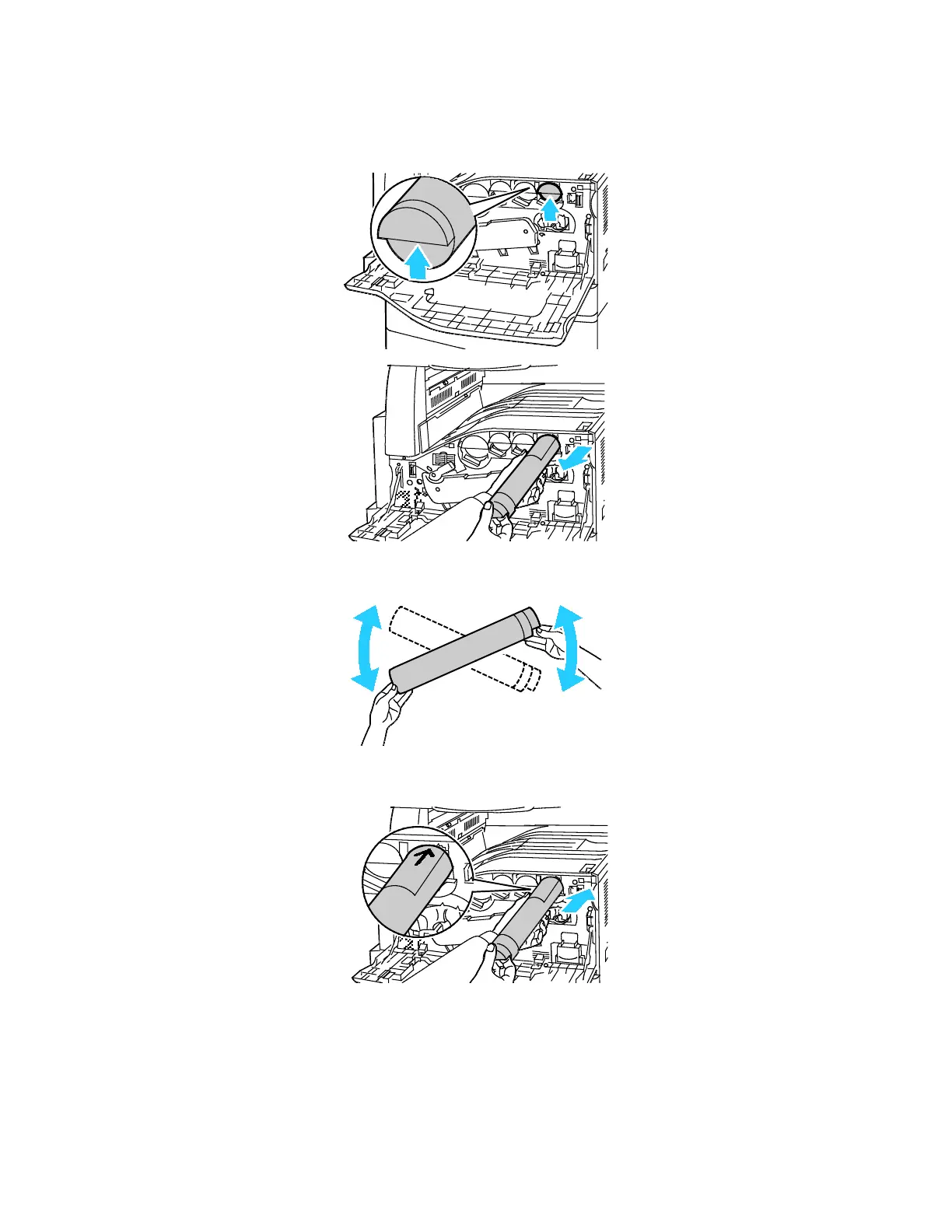

2.
Place your fing
ers under the lip of the to
ner cartridge,
then pull the toner cartri
dge straight out o
f
the
p
rin
ter
.
3.
Remove the new toner cartridge from the packaging. Tilt the cartridge up and down, then left and
right 10 tim
es.
4.
Hold the new toner cartri
dge with the arro
w facing up, then
push the cartridge
in slowly until it
stops.
197
199
