242
Xerox
®
WorkCentre
®
7220/7220i/7225/7225i Co
lor Multifunc
tion Printer
User G
uid
e
Clearing
Jams
in the O
ffic
e Fini
sher LX
Clearing
Jams Un
de
r the
Finishe
r Top
Cove
r

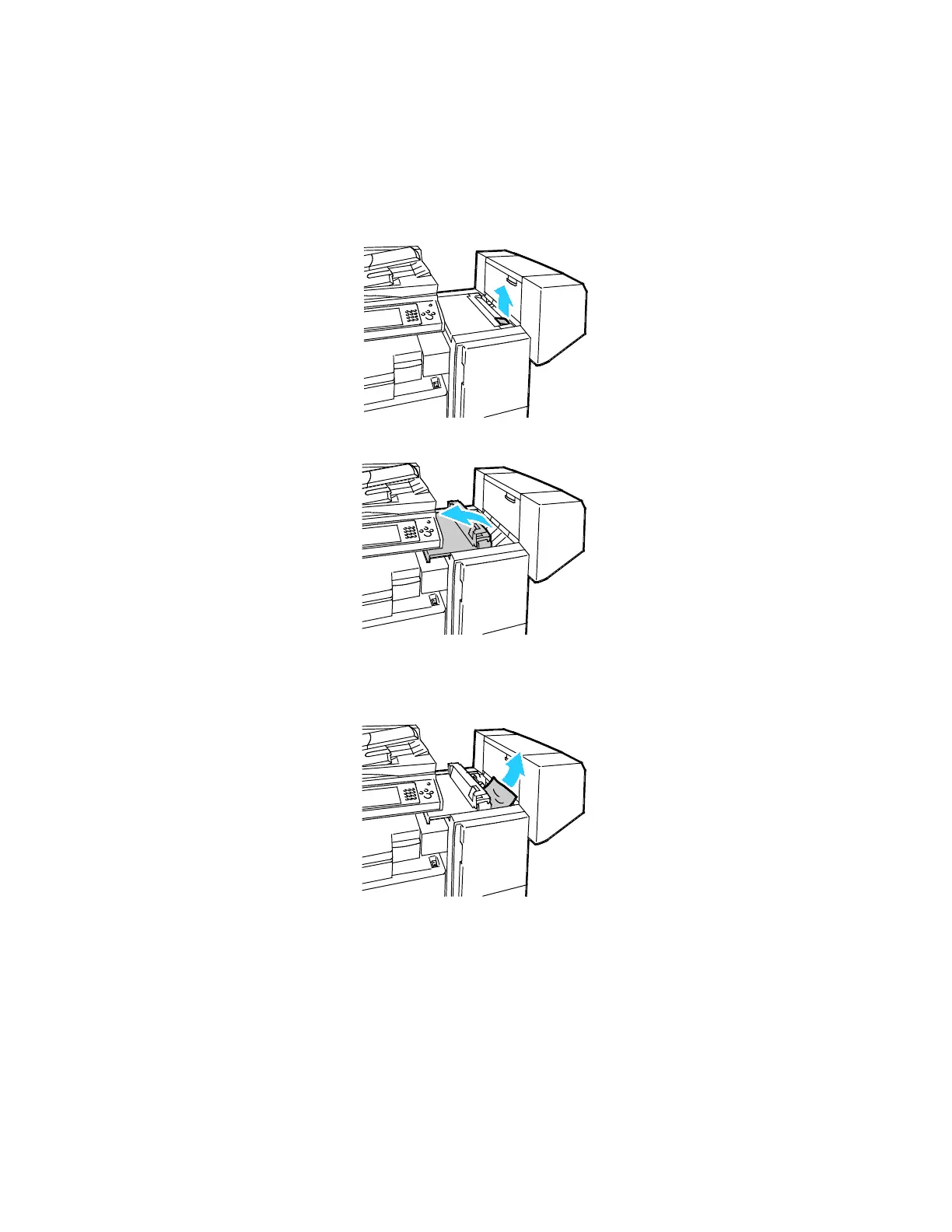

1.
Pull up the lever o
n the top cover.
2.
Open the top cover by rotating it to the le
ft.
3.
Remove the ja
mmed paper.
Note:
If the paper is tor
n, remove all torn pieces fro
m the finisher.
4.
Close the top cover of the finisher.
