1. Setting up the DocuColor 2006 Installing the Sorter/Stacker
1-64 Xerox DocuColor 2006

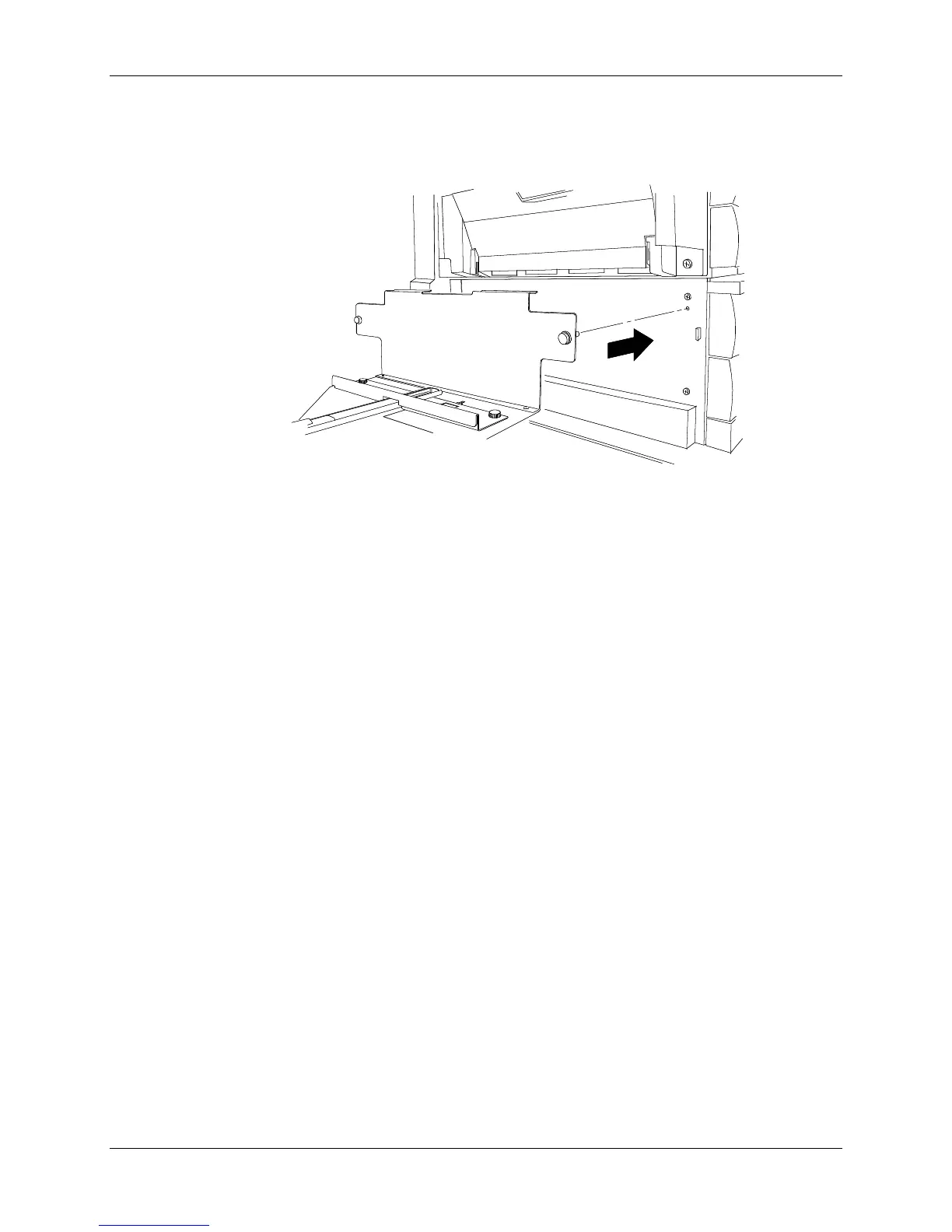

5. Align the Sorter/Stacker with the left side of the DocuColor 2006 so the
thumbscrews on the plate align with the holes in the left cover of the
copier/printer. The upper horizontal edges of the alignment plate should
fit under Jam Clearance Area 5.
6. Tighten the thumbscrews on the front and rear of the alignment plate.
