Xerox DocuMate 3125 User Manual

Xerox DocuMate 3125
User’s Guide
173
Replace the ADF Pad Assembly
The ADF pad will wear out and is designed to be a user-replaceable part. Problems with documents
feeding into the ADF is an indication that the pad is wearing thin. See the Xerox DocuMate 3125 Parts
List on page 185 for ordering information.

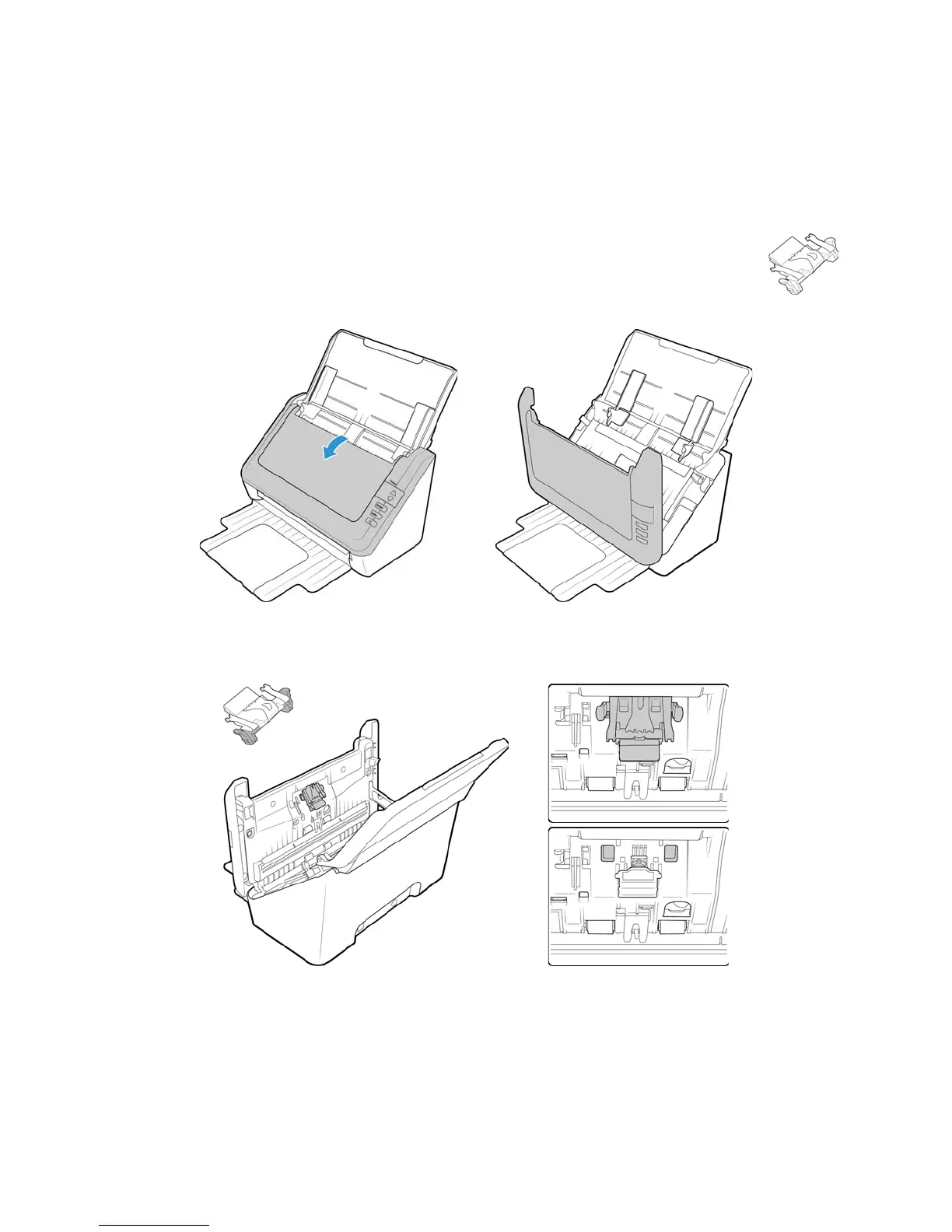

1. Open the Automatic Document Feeder cover.
2. Squeeze the plastic clamps that hold the pad assembly in place and lift the pad up and out. Reverse the
procedure to replace the new pad into its slots.

Xerox DocuMate 3125 Specifications

General

Grayscale levels	8
Maximum scan area (ADF)	216 x 965 mm
Minimum scan area (ADF)	51 x 74 mm
Cables included	AC, USB
Built-in display	No
USB port	Yes
USB version	2.0
