Xerox DocuMate 3125 User Manual

Xerox DocuMate 3125
User’s Guide
27

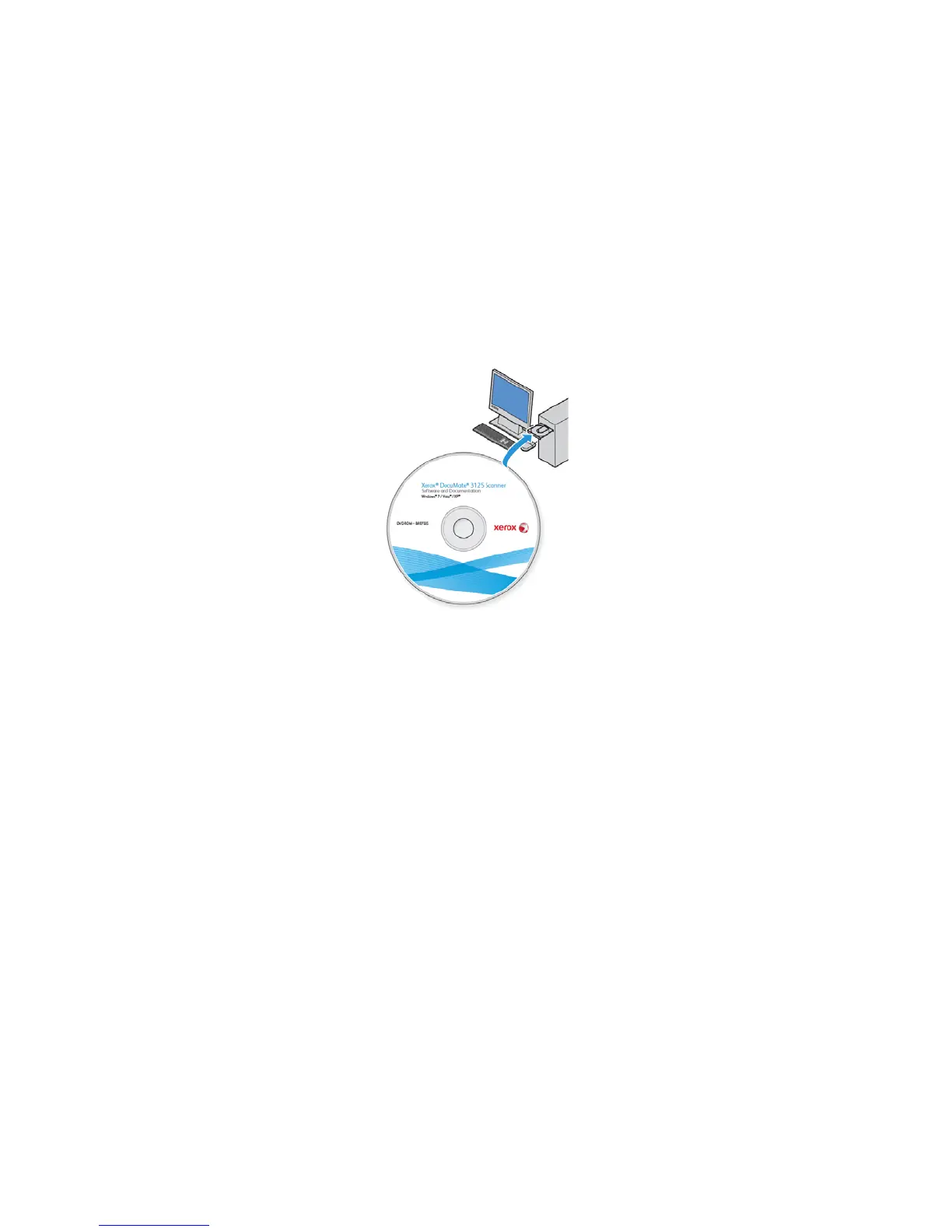

Install the Software and Connect the Scanner
The installation disc contains the necessary driver, and scanning software, to use your Xerox scanner.
To install the software:
1. Start Microsoft Windows and make sure that no other applications are running.
2. Insert the installation disc into your computer’s DVD-ROM drive.
The disc automatically starts.
3. The Select Language window opens. Click the drop-down menu arrow and select the language to use. Click OK.
4. The disc’s Main nenu window opens.
Note: If the disc does not start, check the following:
• Make sure the disc drive’s door is completely shut.
• Make sure the disc was inserted in the drive in the proper direction (label side up).
To la u nc h the d is c m an u al l y:
• Open the Windows options for your computer’s disc drives.
• Double-click the icon for your DVD-ROM drive.
• The Installation menu for the disc should now open.
If the menu does not open:
• From the list of files on the disc, double-click the file named frontend.exe.

Xerox DocuMate 3125 Specifications

General

Grayscale levels	8
Maximum scan area (ADF)	216 x 965 mm
Minimum scan area (ADF)	51 x 74 mm
Cables included	AC, USB
Built-in display	No
USB port	Yes
USB version	2.0
