3. Carefully angle the roller out and away from the ADF cover.
4. Discard the roller. It cannot be re-used nor repaired.
5. Insert the left end of the new roller assembly into the hole in the ADF cover.
6. Angle the roller into the scanner.
7. Align the tab on the green lock flange with the slot in the ADF cover, then rotate the tab on the
lock into the scanner.
8. Press down on the lock flange to lock the roller into the scanner.
9. Close the ADF cover when you are finished.

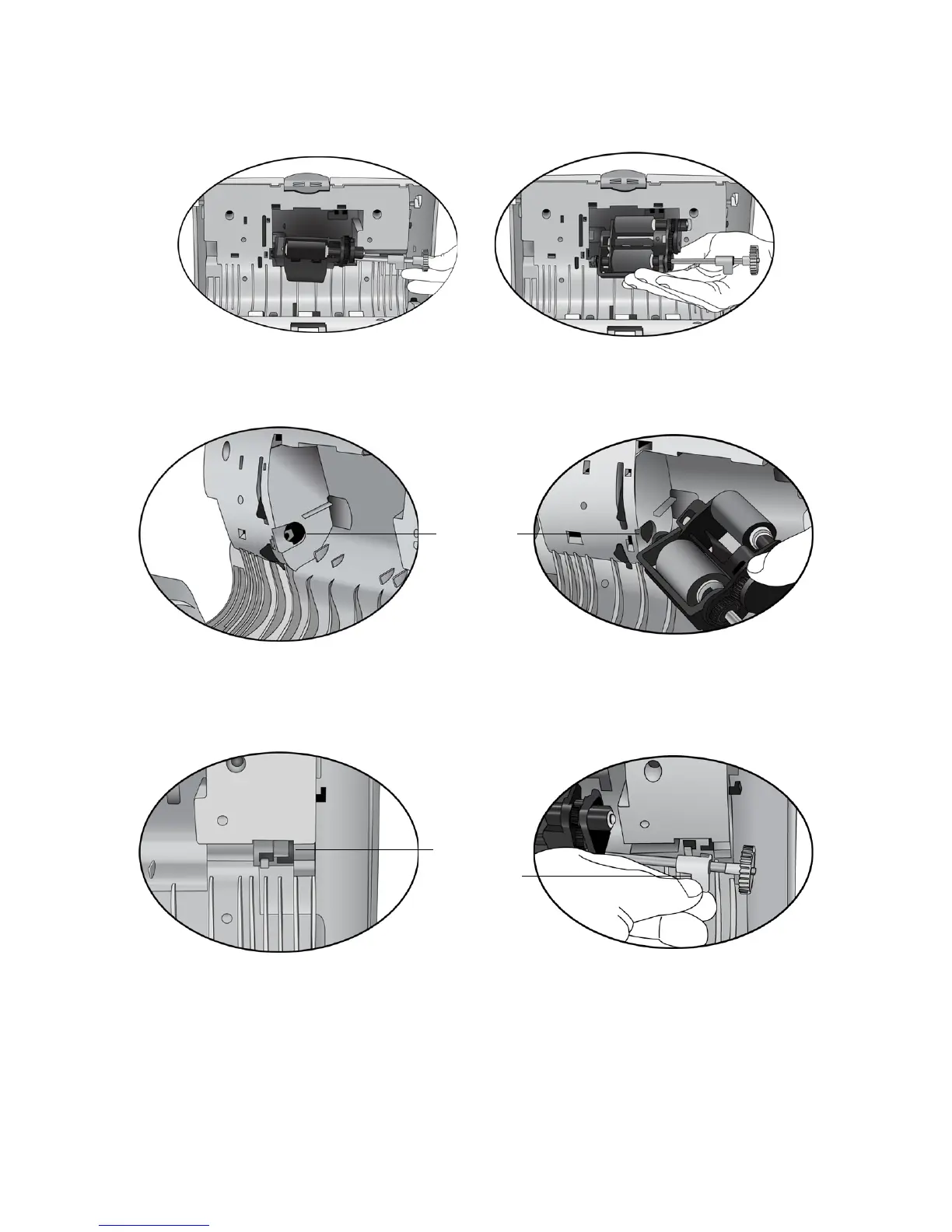

Slot for the
roller assembly
Slot for the lock
flange
Lock flange
