Xerox Phaser 3260 - 5.2 Lower Fuser

June 2014
5-14
Xerox® Phaser® 3052/3260 Service Manual
PL 5.2
Parts Lists

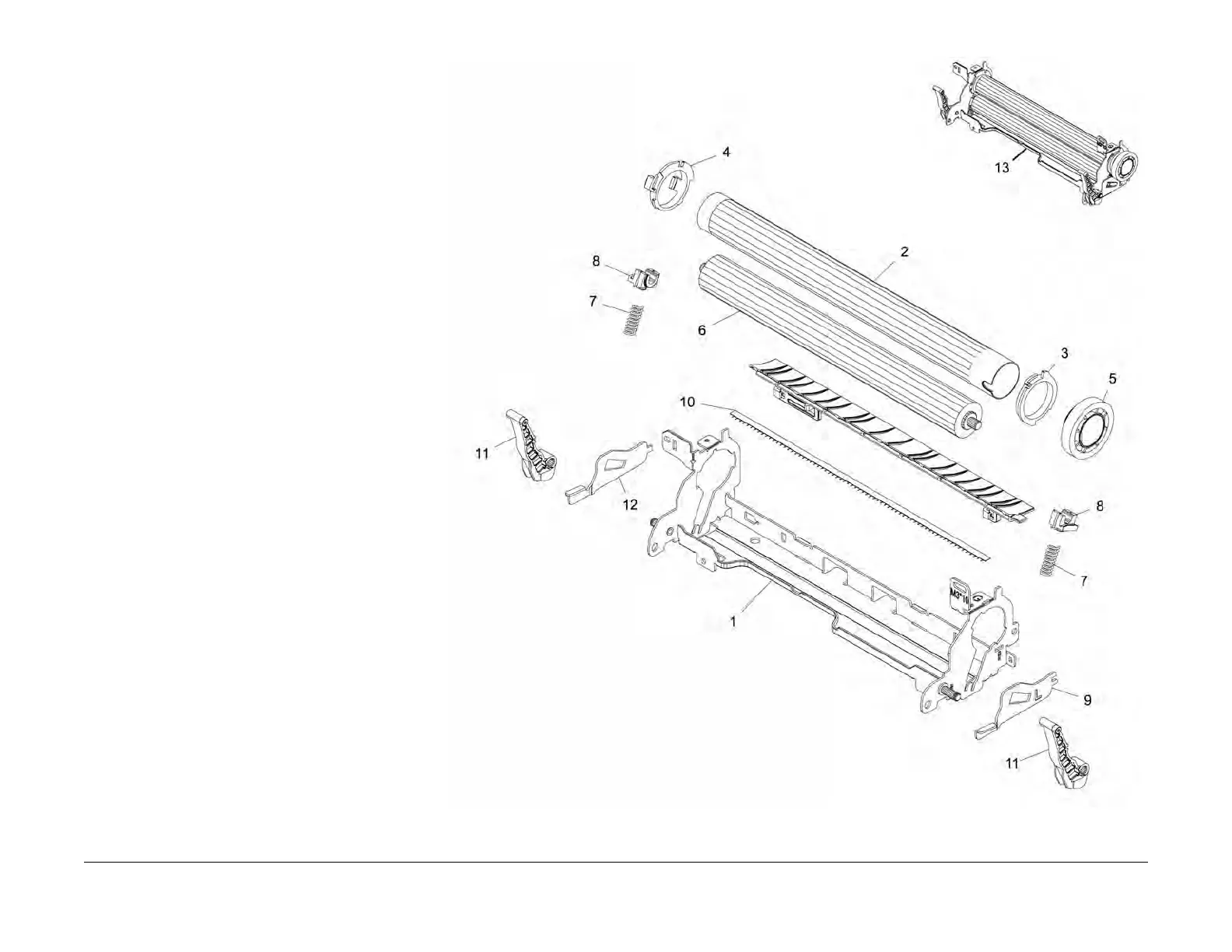

PL 5.2 Lower Fuser
Item Part Description
1 – Fuser Frame
2 – Heat Roller
3 – Left Bushing
4 – Right Bushing
5 – Gear
6 – Roller
7– Spring
8– Bushing
9 – Left Jam Lever Link
10 – Antistatic Brush
11 – Jam Lever
12 – Right Jam Lever Link
13 – Lower Fuser Assembly
