Xerox Phaser 3260 User Manual

June 2014
4-31
Xerox® Phaser® 3052/3260 Service Manual
REP 1.20, REP 1.21
Repairs

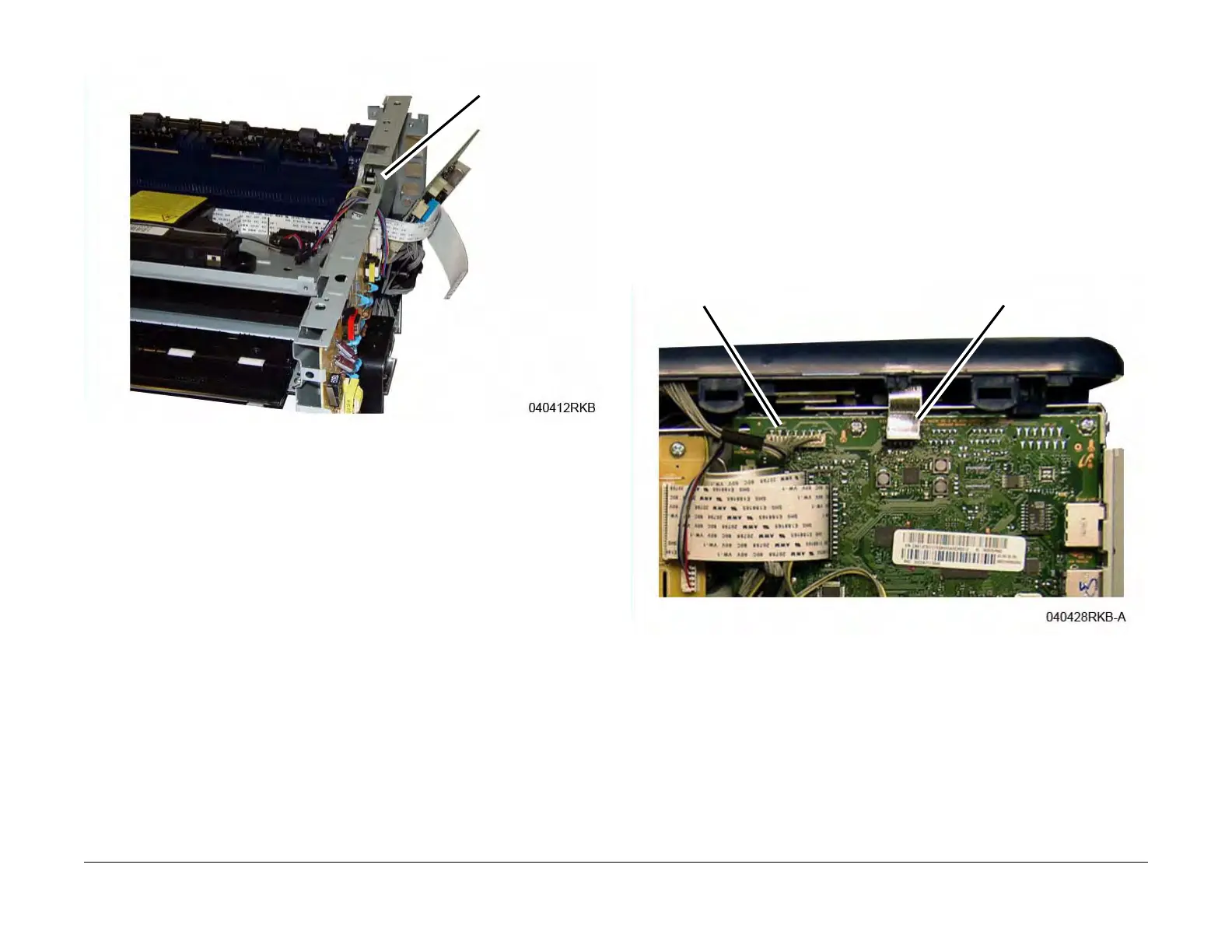

Figure 2 Output Tray Full Sensor (Top Right View)
Replacement
NOTE: When re-installing the Main PWB make sure the ground screw, with large head, is rein-
stalled in the correct location.
Install the components in the reverse of removal.
REP 1.21 WNPC (WiFi) PWB
Parts List on PL 1.1
Removal
1. Switch Off the Printer and disconnect the Power Cord.
2. Remove the following covers:
a. Remove the Left and Right Side Covers (REP 1.2).
b. Remove the Rear Cover (REP 1.4).
c. Remove the Top Cover (REP 1.3).
3. Disconnect the following connectors from the Main PWB (Figure 1):
a. Control Panel Connector.
b. WNPC PWB Connector.
Figure 1 Main PWB Connectors to Disconnect
Output Tray Full Sensor
WNPC Connector
Control Panel Connector

Xerox Phaser 3260 Specifications

General

Print Technology	Laser
Print Speed	Up to 29 ppm
First Page Out	As fast as 8.5 seconds
Duplex Printing	Automatic
Monthly Duty Cycle	Up to 30, 000 pages
Output Capacity	150 sheets
Processor Speed	600 MHz
Memory	128 MB
Supported Operating Systems	Windows, Mac OS, Linux
Connectivity	USB 2.0
Input Capacity	250 sheets
Media Sizes Supported	A4, A5, A6, B5, Executive, Folio, Legal, Letter, Oficio
PDL	PCL 6, PCL 5e, PostScript 3
