Xerox® Phaser® 3052/3260 Service Manual
REP 1.25, REP 1.26
Repairs
Replacement
NOTE: Tapered Plastic Screws and Round Machine Screws are used to hold the cover to the
frame. Make sure that the Plastic Screws go into plastic components and Machine Screws go
into the metal frame.
Install the components in the reverse of removal.
1. When replacing the Drive Roll in the Feed Assembly lower half make sure the flat on the
bushing aligns with the flat on the assembly
2. After installing the Feed Assembly upper half; install the Feed Assembly bottom screws
(2) first, and route the wires through the frame (Figure 6).
REP 1.26 Registration Roll
Parts List on PL 4.4
Removal
1. Switch Off the Printer and unplug the Power Cord.
2. Remove the following covers:
a. The Front Cover (REP 1.1).
b. The Top Cover (REP 1.3).
3. Remove the Bottom Bar and Duplex Assembly (Figure 1).
a. Remove the screws (2) and the Bottom Bar.
b. Press the Green Tabs (2) to unlatch the Duplex Assembly.
Remove the Duplex Assembly through the rear of the printer.

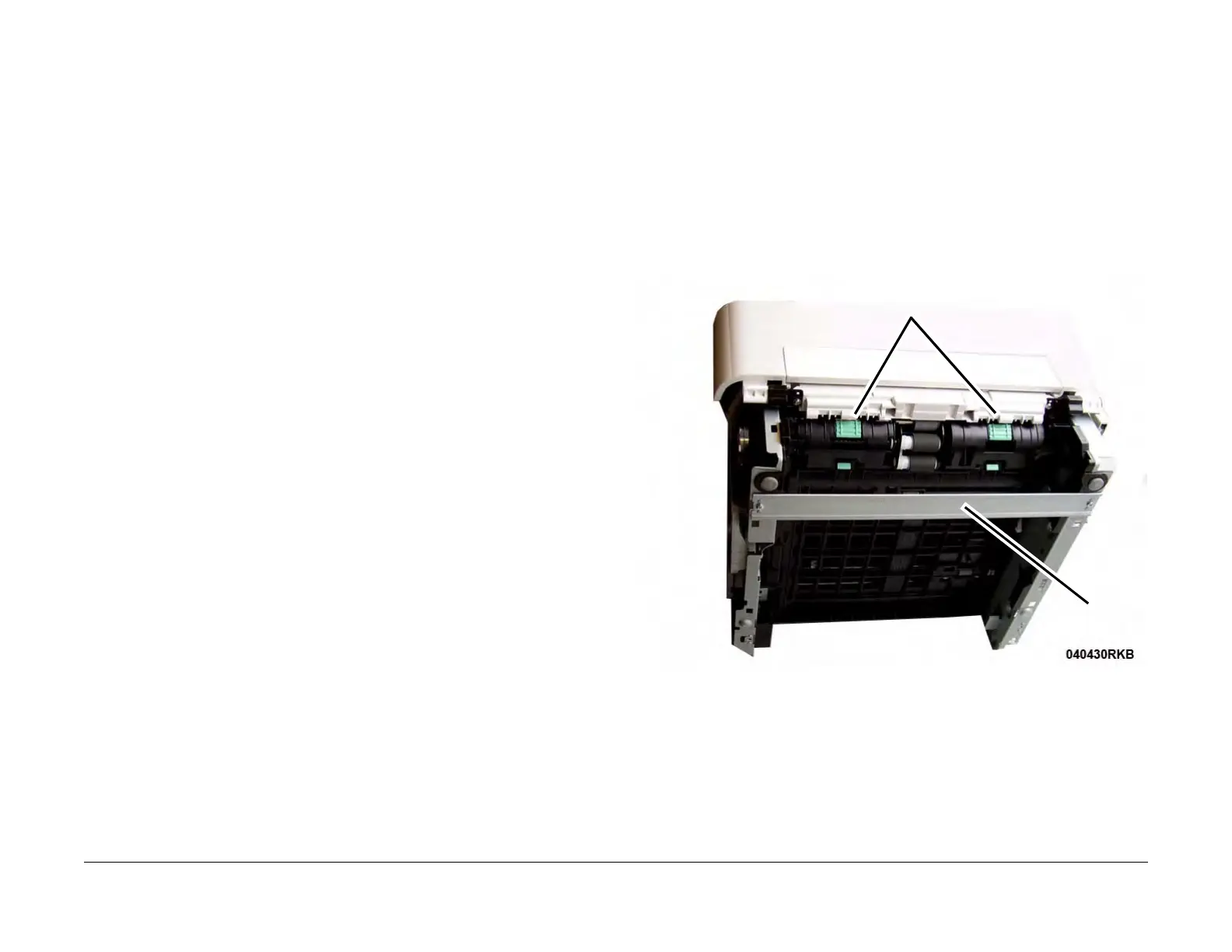

Figure 1 Bottom Bar and Duplex Assembly (Bottom View)
4. Remove the Fuser Module (REP 1.17).
Duplex Tabs
Bottom Bar

Xerox Phaser 3260 Specifications

General

Print Technology	Laser
Print Speed	Up to 29 ppm
First Page Out	As fast as 8.5 seconds
Duplex Printing	Automatic
Monthly Duty Cycle	Up to 30, 000 pages
Output Capacity	150 sheets
Processor Speed	600 MHz
Memory	128 MB
Supported Operating Systems	Windows, Mac OS, Linux
Connectivity	USB 2.0
Input Capacity	250 sheets
Media Sizes Supported	A4, A5, A6, B5, Executive, Folio, Legal, Letter, Oficio
PDL	PCL 6, PCL 5e, PostScript 3
