4-19
Xerox® Phaser® 3052/3260 Service Manual
REP 1.10, REP 1.11
Repairs

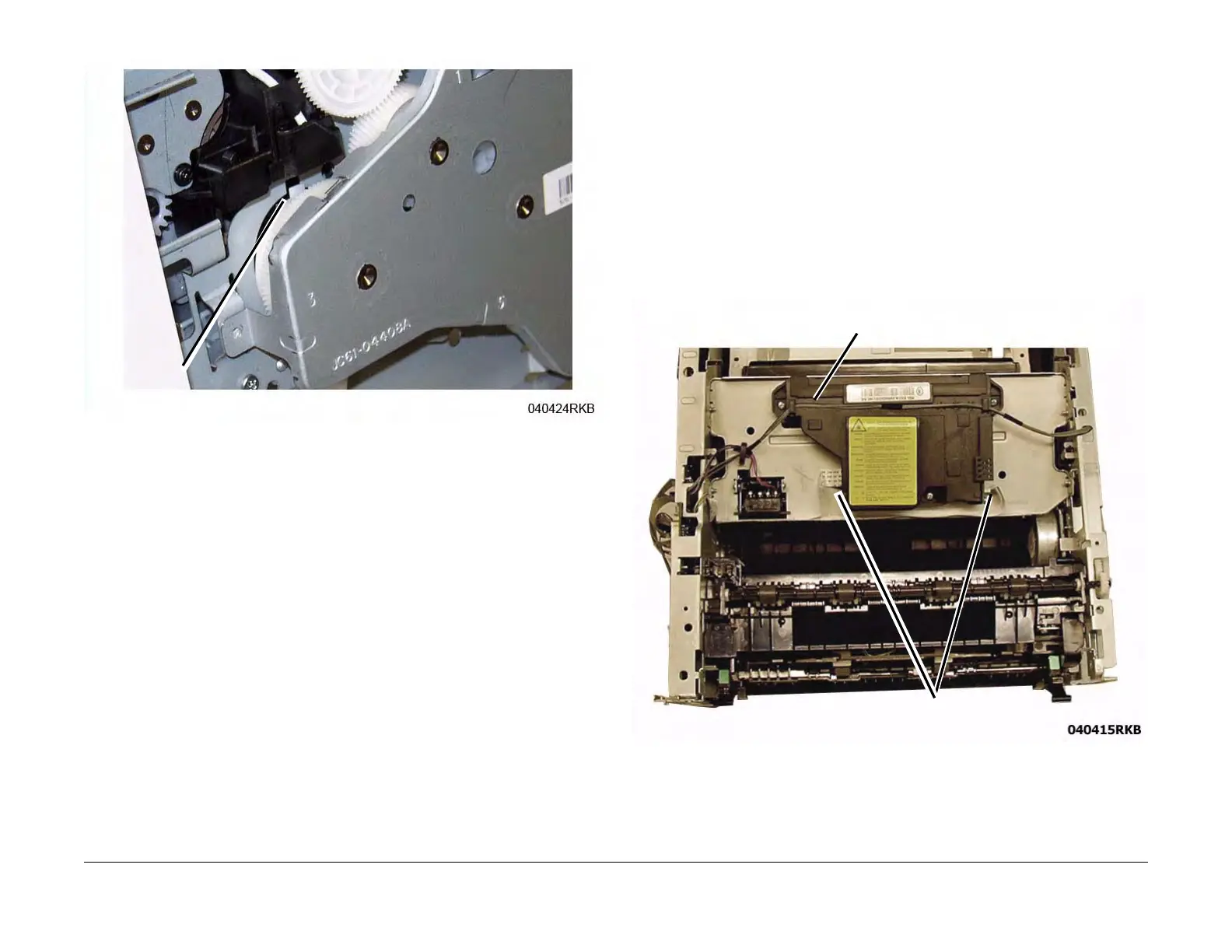

Figure 3 Locking Lever Tab and Frame Cutout
REP 1.11 LSU and Cables
Parts List on PL 4.1
Removal
1. Switch Off the Printer and disconnect the Power Cord.
2. Remove the following covers:
a. Remove the Left and Right Side Covers (REP 1.2).
b. Remove the Front Cover (REP 1.1).
c. Remove the Rear Cover (REP 1.4).
d. Remove the Top Cover (REP 1.3).
3. To replace the LSU Cables: (Figure 1).
a. Disconnect the cable connector at the LSU.
b. Disconnect the cable connector at the Main PWB.
Figure 1 LSU Cable Connectors and Wire Harness (Top View)
NOTE: The Flat Cable may be adhered to the LSU. Detach it from the LSU and reinstall it
on the new LSU in the same location.
4. To replace the LSU:
Locking Lever
Tab and Cutout
Connector
Wire Harness

Xerox Phaser 3260 Specifications

General

Print Technology	Laser
Print Speed	Up to 29 ppm
First Page Out	As fast as 8.5 seconds
Duplex Printing	Automatic
Monthly Duty Cycle	Up to 30, 000 pages
Output Capacity	150 sheets
Processor Speed	600 MHz
Memory	128 MB
Supported Operating Systems	Windows, Mac OS, Linux
Connectivity	USB 2.0
Input Capacity	250 sheets
Media Sizes Supported	A4, A5, A6, B5, Executive, Folio, Legal, Letter, Oficio
PDL	PCL 6, PCL 5e, PostScript 3
