4-29
Xerox® Phaser® 3052/3260 Service Manual
REP 1.18, REP 1.19
Repairs

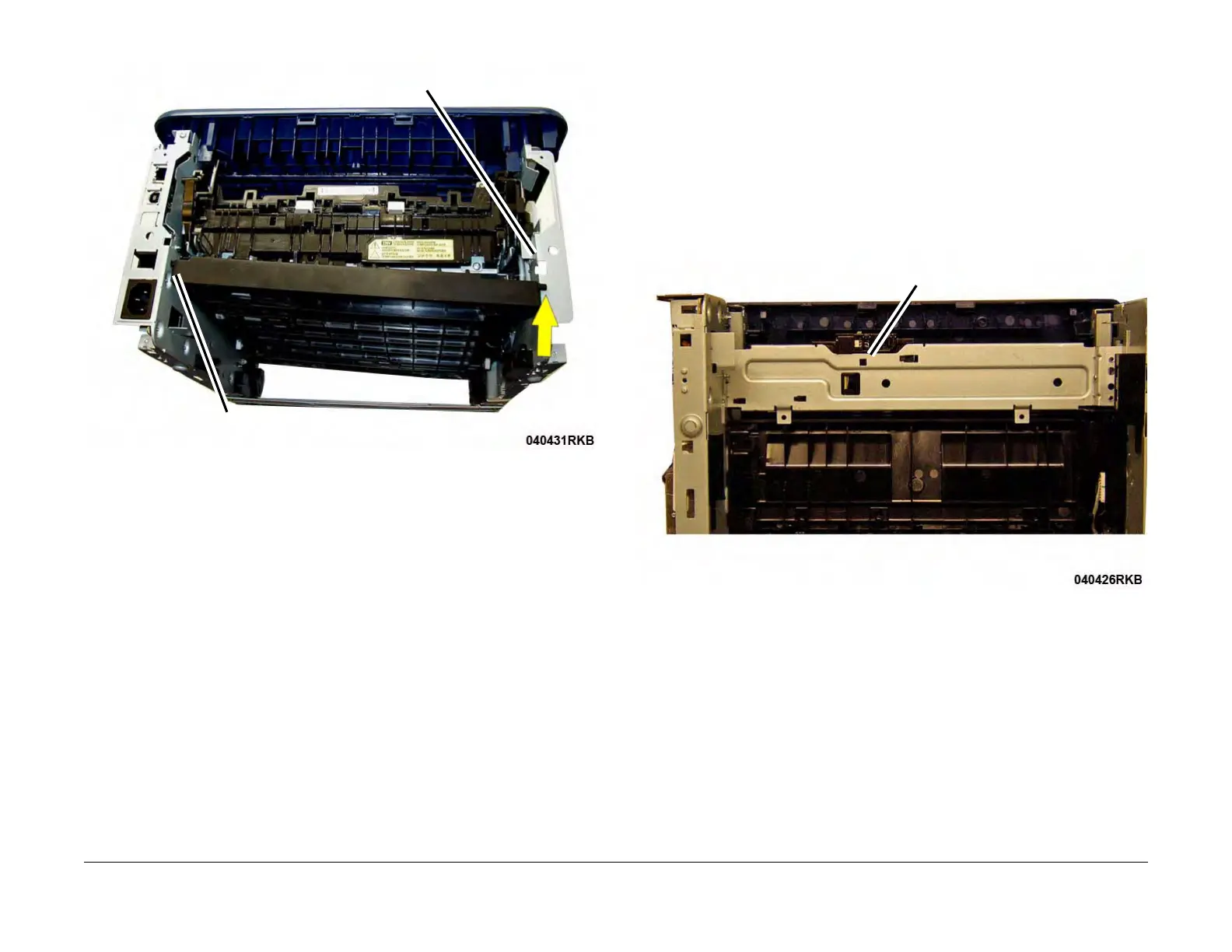

Figure 2 Duplex Assembly Pivots (Rear View)
Replacement
Install the components in the reverse of removal.
1. Insert the pivot on the left side into the hole.
2. Insert the right pivot into the frame cutout.
3. Lift and latch the front of the Duplex Assembly into position (Figure 2).
REP 1.19 Exit Sensor
Parts List on PL 4.1
Removal
1. Switch Off the Printer and disconnect the Power Cord.
2. Remove the following covers:
a. Remove the Left and Right Side Covers (REP 1.2).
b. Remove the Rear Cover (REP 1.4).
3. Remove the Fuser Module (REP 1.17)
4. Press the Latch on the underside of the frame to release the Exit Sensor Mounting Plate
from the frame (Figure 1).
Figure 1 Exit Sensor Plate Latch Release (Bottom View)
5. Remove the Exit Sensor (Figure 2):
a. Release the wires from the cable clamps.
b. Unlatch and remove the Exit Sensor, disconnect the connector.
Pivot Hole
Pivot Cutout
Latch

Xerox Phaser 3260 Specifications

General

Print Technology	Laser
Print Speed	Up to 29 ppm
First Page Out	As fast as 8.5 seconds
Duplex Printing	Automatic
Monthly Duty Cycle	Up to 30, 000 pages
Output Capacity	150 sheets
Processor Speed	600 MHz
Memory	128 MB
Supported Operating Systems	Windows, Mac OS, Linux
Connectivity	USB 2.0
Input Capacity	250 sheets
Media Sizes Supported	A4, A5, A6, B5, Executive, Folio, Legal, Letter, Oficio
PDL	PCL 6, PCL 5e, PostScript 3
