Xerox® Phaser® 3052/3260 Service Manual
REP 1.21, REP 1.22
Repairs
4. Release the WNPC PWB from the latches and remove it (Figure 2).

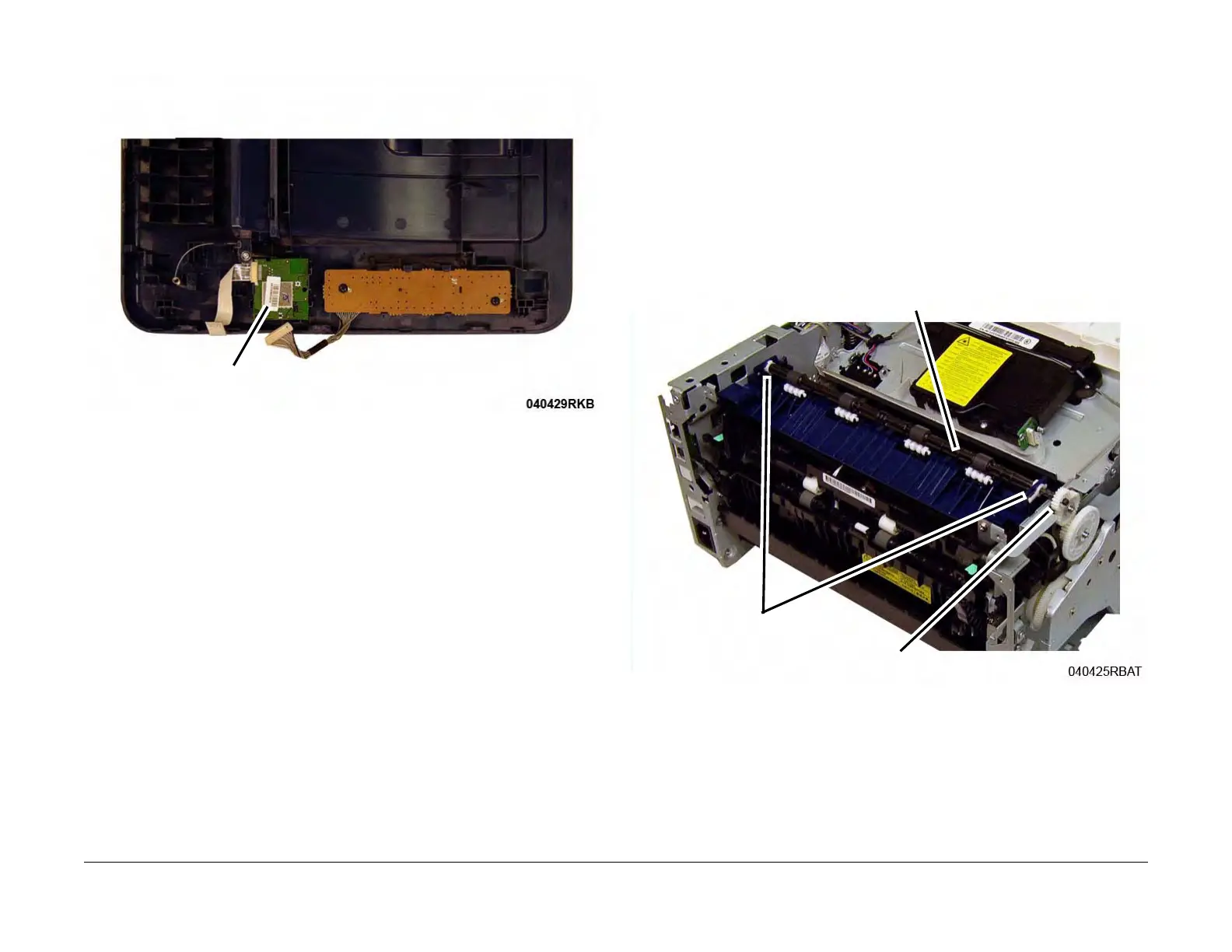

Figure 2 WNPC PWB (Underside of Top Cover)
Replacement
Install the components in the reverse of removal.
REP 1.22 Exit Roll and Bushings
Parts List on PL 4.3
Removal
1. Switch Off the Printer and unplug the Power Cord.
2. Remove the following covers:
a. Remove the Left and Right Side Covers (REP 1.2).
b. Remove the Rear Cover (REP 1.4).
c. Remove the Top Cover (REP 1.3).
3. Remove the Exit Roll and Bushings (Figure 1).
a. Remove the Drive Gear, release the latch.
b. Remove the Bushings (2), release the latch and rotate the bushing.
c. Remove the Exit Roll.
Figure 1 Exit Roll and Bushing (Top View)
Replacement
Install the components in the reverse of removal.
WNPC PWB
Exit Roll
Bushings
Drive Gear

Xerox Phaser 3260 Specifications

General

Print Technology	Laser
Print Speed	Up to 29 ppm
First Page Out	As fast as 8.5 seconds
Duplex Printing	Automatic
Monthly Duty Cycle	Up to 30, 000 pages
Output Capacity	150 sheets
Processor Speed	600 MHz
Memory	128 MB
Supported Operating Systems	Windows, Mac OS, Linux
Connectivity	USB 2.0
Input Capacity	250 sheets
Media Sizes Supported	A4, A5, A6, B5, Executive, Folio, Legal, Letter, Oficio
PDL	PCL 6, PCL 5e, PostScript 3
