Xerox® Phaser® 3052/3260 Service Manual
REP 1.23
Repairs
REP 1.23 Manual Paper Tray
Parts List on PL 4.4
Removal
1. Switch Off the Printer and unplug the Power Cord.
2. Remove the following covers:
a. Remove the Left and Right Side Covers (REP 1.2).
b. Remove the Rear Cover (REP 1.4).
c. Remove the Top Cover (REP 1.3).
3. Remove the Manual Paper Tray bottom screws (2) (Figure 1).

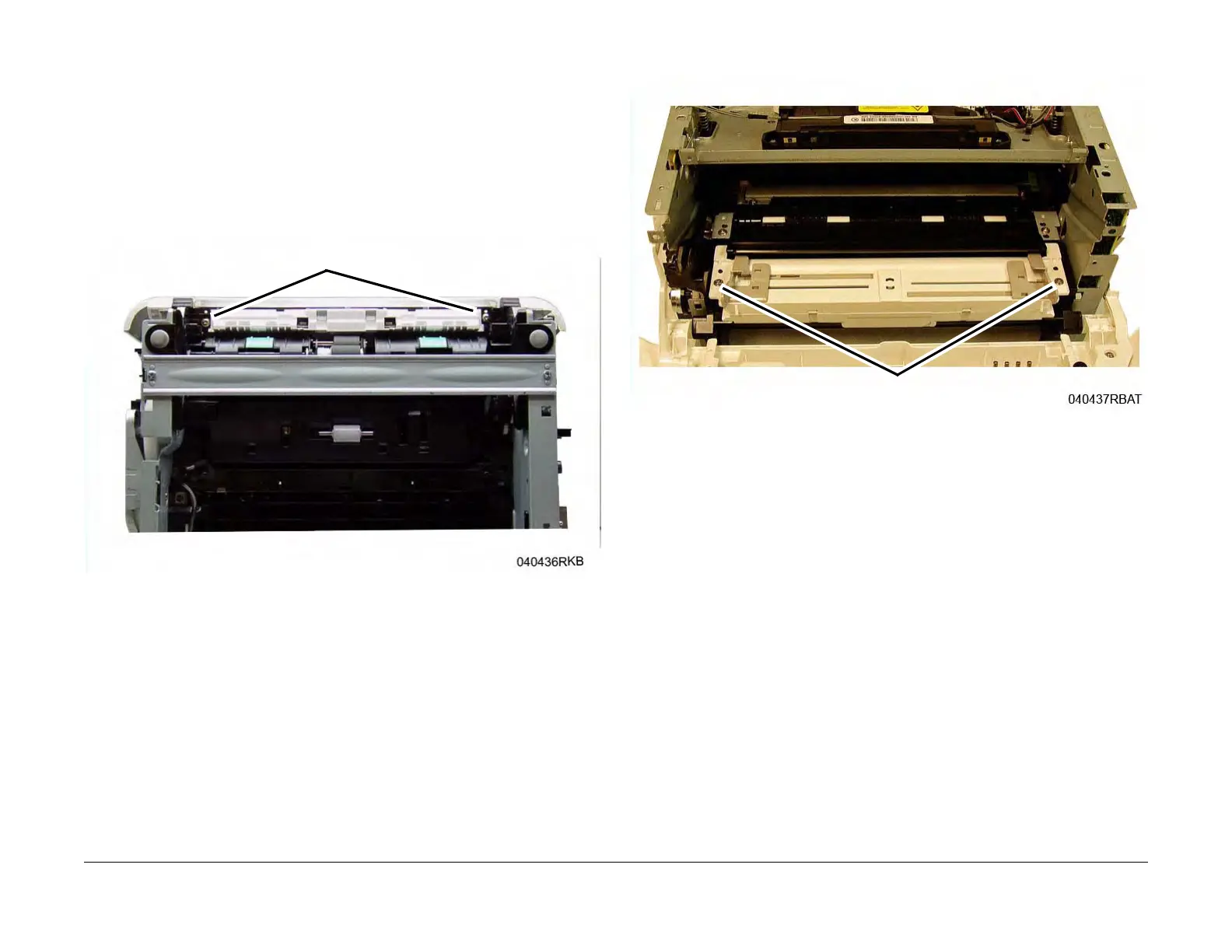

Figure 1 Manual Paper Tray Bottom Screws (Bottom View)
4. Remove the Manual Paper Tray top screws (2) and the paper tray (Figure 2).
Figure 2 Manual Paper Tray Top Screws (Top View)
Replacement
Install the components in the reverse of removal.
Screws
Screws

Xerox Phaser 3260 Specifications

General

Print Technology	Laser
Print Speed	Up to 29 ppm
First Page Out	As fast as 8.5 seconds
Duplex Printing	Automatic
Monthly Duty Cycle	Up to 30, 000 pages
Output Capacity	150 sheets
Processor Speed	600 MHz
Memory	128 MB
Supported Operating Systems	Windows, Mac OS, Linux
Connectivity	USB 2.0
Input Capacity	250 sheets
Media Sizes Supported	A4, A5, A6, B5, Executive, Folio, Legal, Letter, Oficio
PDL	PCL 6, PCL 5e, PostScript 3
