Xerox® Phaser® 3052/3260 Service Manual
REP 1.3
Repairs
REP 1.3 Top Cover
Parts List on PL 3.1
Removal
1. Switch Off the Printer and disconnect the Power Cord.
2. Remove the following covers:
a. Remove the Left and Right Side Covers (REP 1.2).
b. Remove the Front Cover (REP 1.1).
c. Remove the Rear Cover (REP 1.4).
3. Disconnect the Control Panel connector from the Main PWB (Figure 1).
For a Phaser 3052 also disconnect the WNPC (WiFi) connector.

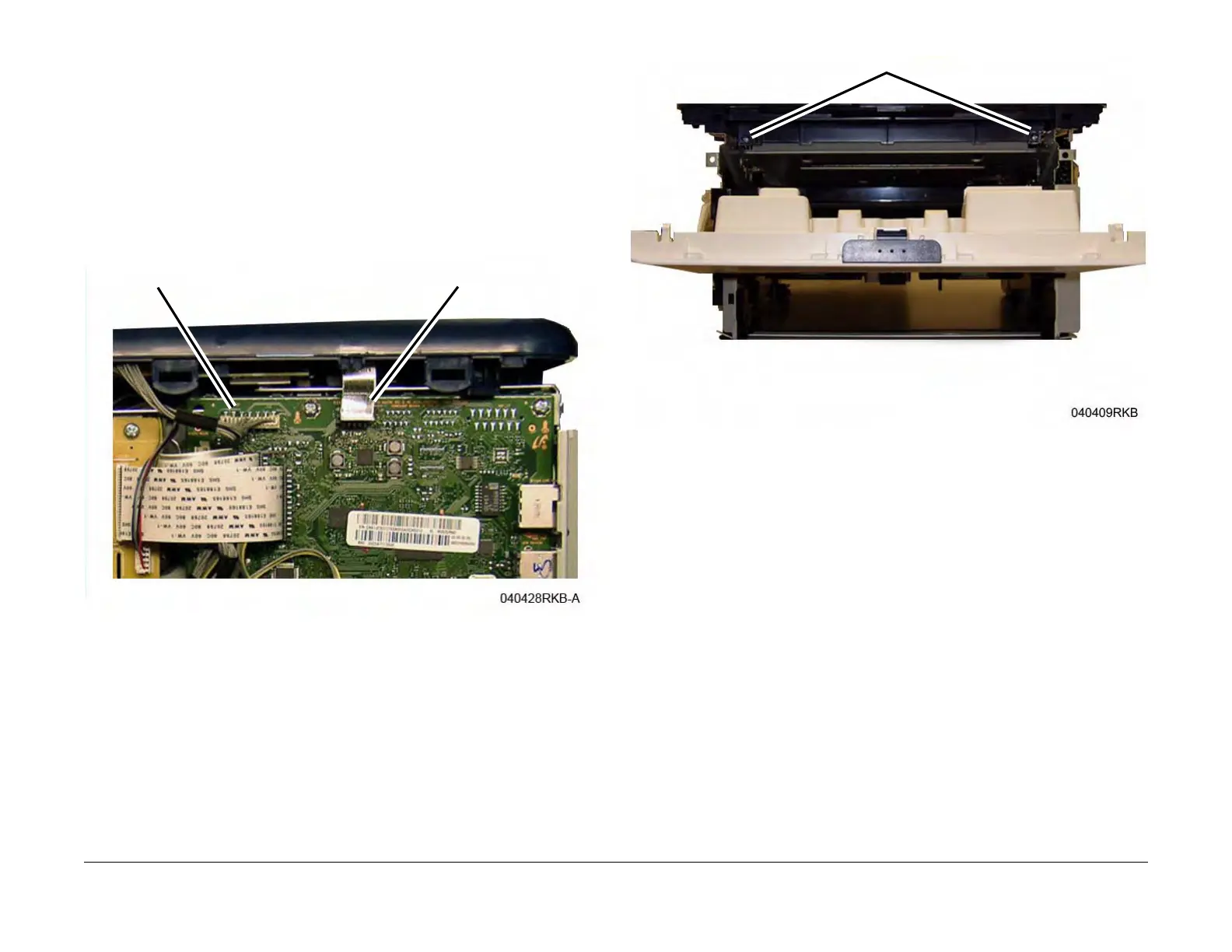

Figure 1 Main PWB Connectors to Disconnect
4. Remove the Top Cover screws (2) at the front of the printer (Figure 2).
Figure 2 Top Cover Screws (Front View)
5. Release the Latch Hooks (2) at the rear of the printer, and remove the Top Cover (Figure
3).
WNPC (WiFi) Connector
Control Panel Connector
Screws

Xerox Phaser 3260 Specifications

General

Print Technology	Laser
Print Speed	Up to 29 ppm
First Page Out	As fast as 8.5 seconds
Duplex Printing	Automatic
Monthly Duty Cycle	Up to 30, 000 pages
Output Capacity	150 sheets
Processor Speed	600 MHz
Memory	128 MB
Supported Operating Systems	Windows, Mac OS, Linux
Connectivity	USB 2.0
Input Capacity	250 sheets
Media Sizes Supported	A4, A5, A6, B5, Executive, Folio, Legal, Letter, Oficio
PDL	PCL 6, PCL 5e, PostScript 3
