Xerox Phaser 3260 User Manual

June 2014
4-20
Xerox® Phaser® 3052/3260 Service Manual
REP 1.11, REP 1.12
Repairs
a. Release the wire harness from the top of the LSU and disconnect the connectors (2)
at the LSU (Figure 1).
b. Remove the screws (3) (Figure 2).

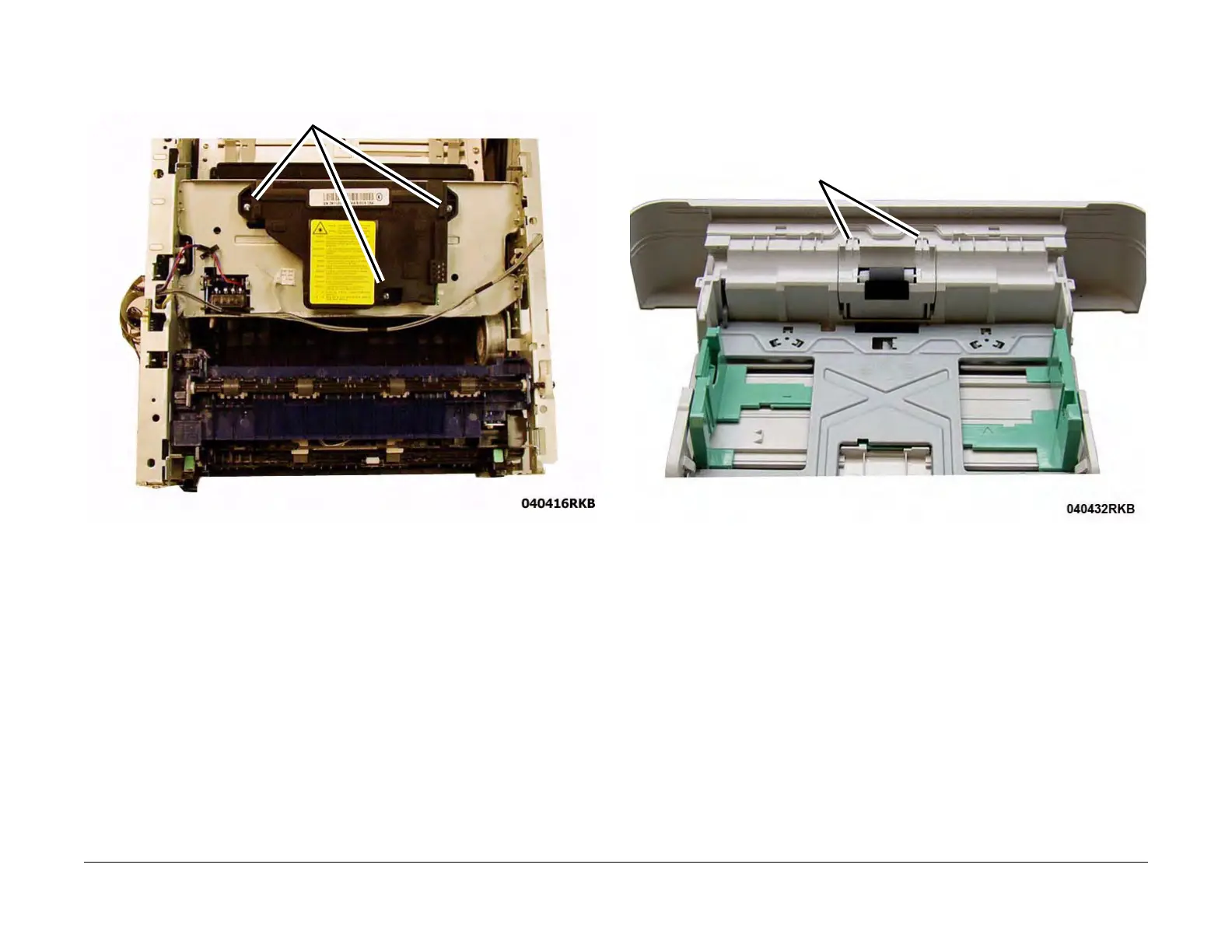

Figure 2 LSU Removal (Top View)
Replacement
Install the components in the reverse of removal.
REP 1.12 Retard Roll
Parts List on PL 6.1
Removal
1. Remove the Paper Tray and any paper from the tray.
2. In the Paper Tray, pull down on the latches (2) to open the Retard Roll Cover (Figure 1).
Figure 1 Retard Roll Cover Latches
3. Rotate the Retard Roll Holder up and remove it from the Paper Tray (Figure 2).
Screws
Latches

Xerox Phaser 3260 Specifications

General

Print Technology	Laser
Print Speed	Up to 29 ppm
First Page Out	As fast as 8.5 seconds
Duplex Printing	Automatic
Monthly Duty Cycle	Up to 30, 000 pages
Output Capacity	150 sheets
Processor Speed	600 MHz
Memory	128 MB
Supported Operating Systems	Windows, Mac OS, Linux
Connectivity	USB 2.0
Input Capacity	250 sheets
Media Sizes Supported	A4, A5, A6, B5, Executive, Folio, Legal, Letter, Oficio
PDL	PCL 6, PCL 5e, PostScript 3
