3052/3260 Printer Service Manual
June 2014
BSDs
PL 1.1
MAIN PWB
A B C D E F G H J
1
2
3
4
5
6

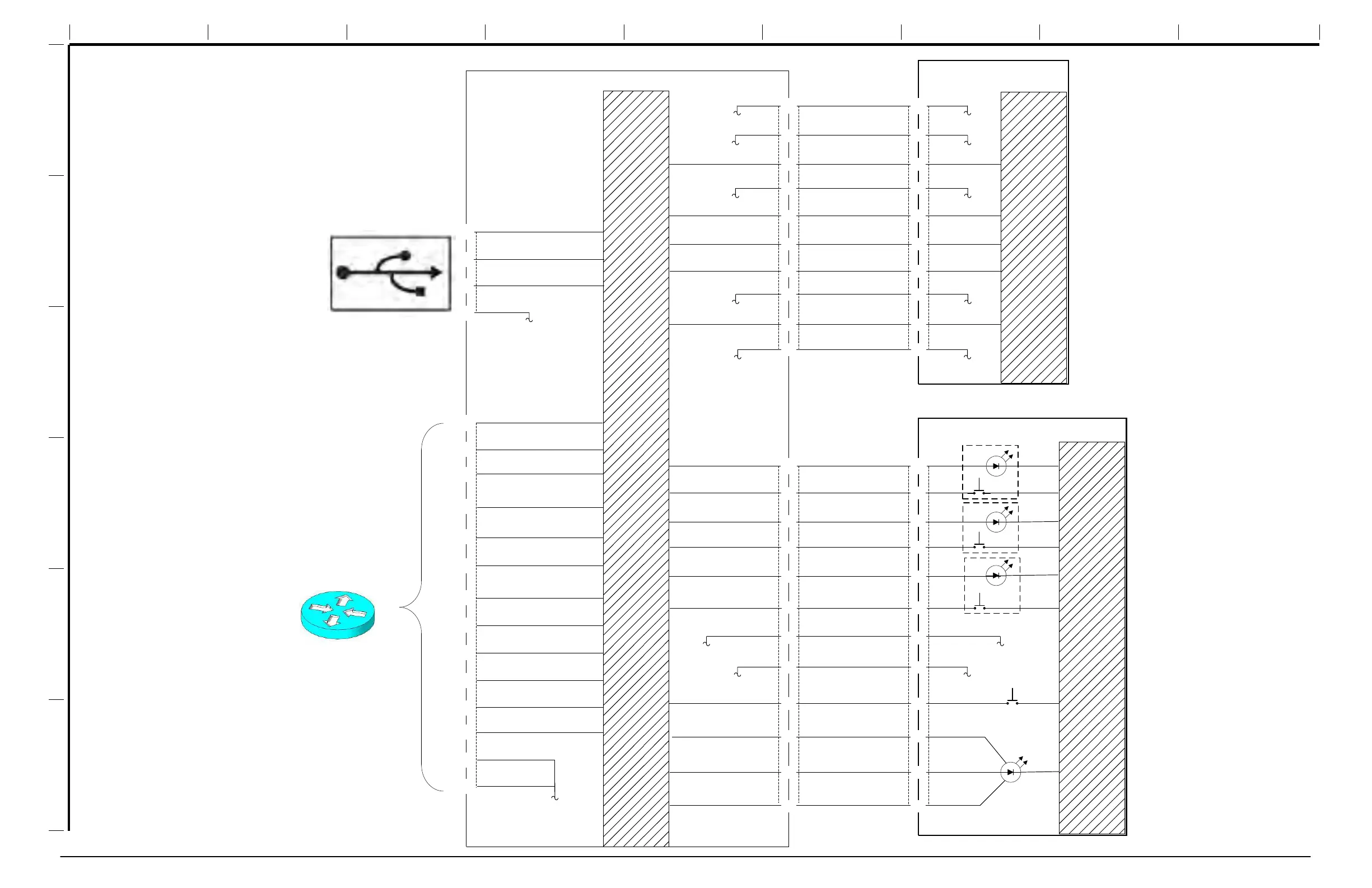

3.1A COMMUNICATIONS (1 of 2)
USB
3
J16
2
1
4
DC COM
PL 1.1
WNPC (WiFi) PWB
DC COM
+3.3 VDC
1
P1J1
1
8
9
5
6
3
3
5
6
8
9
DC COM
+3.3 VDC
11 11
10
10
+3.3 VDC +3.3 VDC
DC COM DC COM
2
2
DC COM DC COM
4
4
PL 3.1
CONTROL PANEL PWB
DC COM
+5 VDC
1
P11J11
1
8
6
6
8
DC COM
+5 VDC
10
10
2
2
4
4
9
9
ECO LED
ECO KEY
WPS LED
WPS KEY
5
5
POWER LED
7
7
POWER KEY
CANCEL KEY
READY LED
11 11
ERROR LED
12 12
13 13
TONER LED
DC COM
+5 VDC
1
J17
2
3
4
5
6
7
8
9
10
11
12
13
14
ROUTER
DC COM
LED Y ANODE
LED Y ENABLE
LED G ANODE
LED G ENABLE
TERMINATE
TERMINATE
SIGNAL
TERMINATE
TERMINATE
SIGNAL
SIGNAL
SIGNAL
+3.3 VDC
DC COM
DC COM
DC COM
+3.3 VDC
DC COM
SIGNAL
SIGNAL
SIGNAL
SIGNAL
SIGNAL
7-2
