June 2014

4-3

Xerox® Phaser® 3052/3260 Service Manual

REP 1.1

Repairs

REP 1.1 Front Cover

Parts List on PL 2.1

Removal

1. Switch Off the Printer and disconnect the Power Cord.

2. Remove the Left and Right Side Covers (REP 1.2).

3. Disconnect the wire harness to the Front Cover (Figure 1).

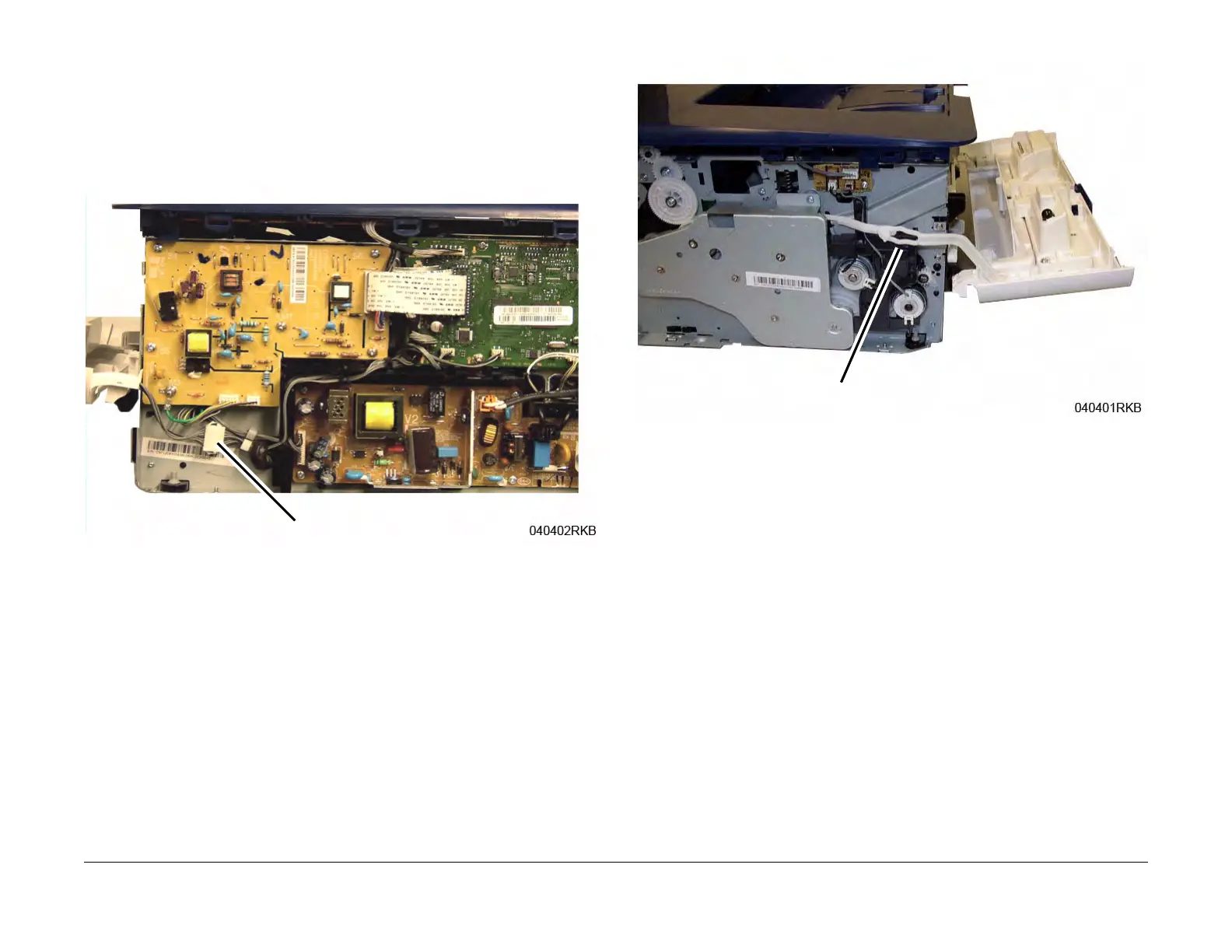

Figure 1 Front Cover P/J Connector

4. Disconnect the Front Cover Support Arm (Figure 2).

Figure 2 Front Cover Support Arm

Connector

Front Cover Support Arm
