Xerox® Phaser® 3052/3260 Service Manual
REP 1.15
Repairs

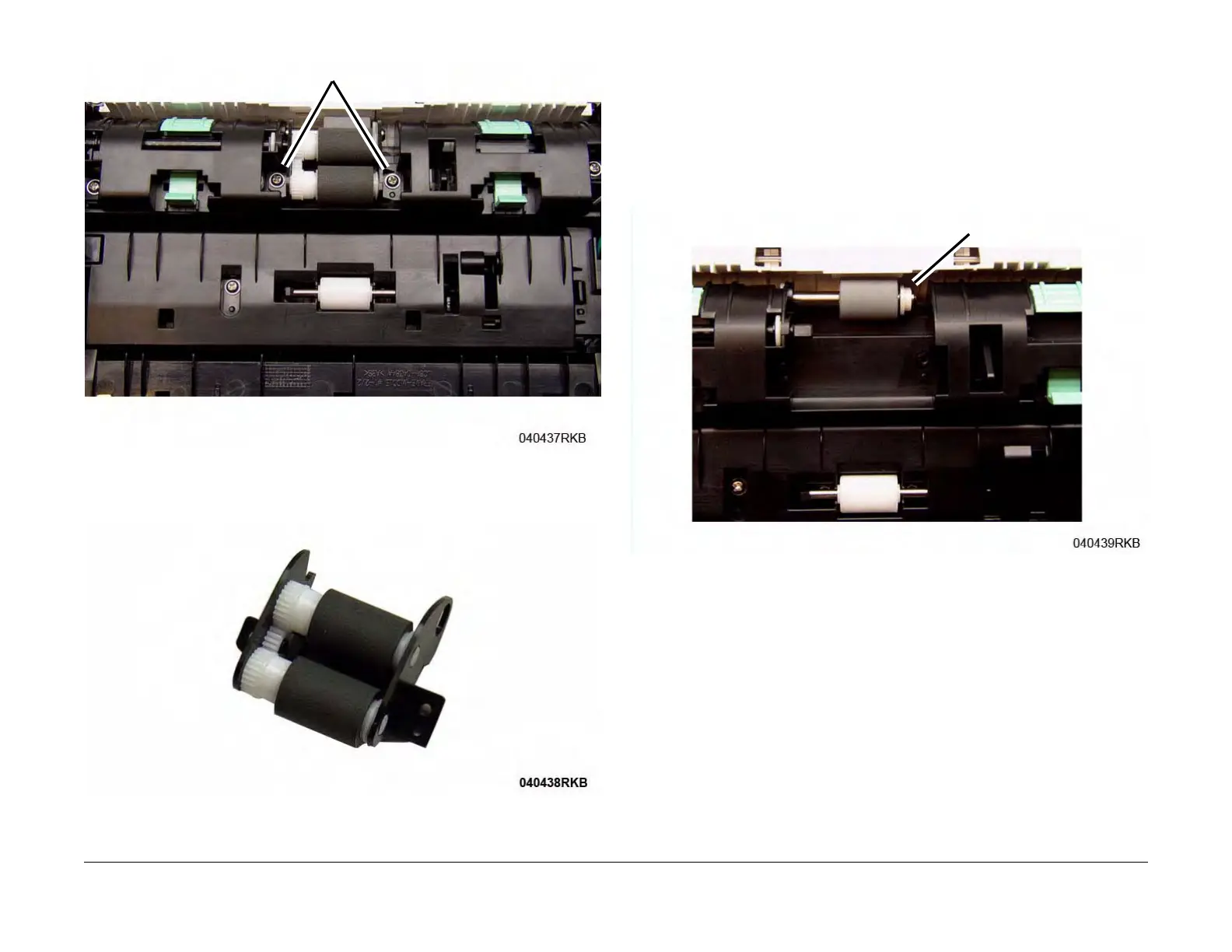

Figure 2 Removing the Feed and Forward Roll Assembly (Bottom View)
7. Remove the Feed and Forward Rolls from the assembly (Figure 3).
Figure 3 Removing the Feed and Forward Roll
Replacement
Install the components in the reverse of removal.
NOTE: Tapered Plastic Screws and Round Machine Screws are used to hold the cover to the
frame. Make sure that the Plastic Screws go into plastic components and Machine Screws go
into the metal frame.
NOTE: When replacing the Feed and Forward Roll Assembly made sure the Flat on the Bush-
ing is lined up with the Flat on the Assembly (Figure 4).
Figure 4 Bushing Flat (Bottom View)
Screws
Bushing Flat
