4-36
Xerox® Phaser® 3052/3260 Service Manual
REP 1.25
Repairs
5. Perform the Following (Figure 3):
a. Disconnect CN3 from the paper Feed PWB, and remove the screw (1).
b. Remove the Feed and Registration Clutches, remove the Snap Rings and Washer
from the Clutches.
c. Remove the Feed and Registration Clutch Assembly and the PWB, release the
latches (2).

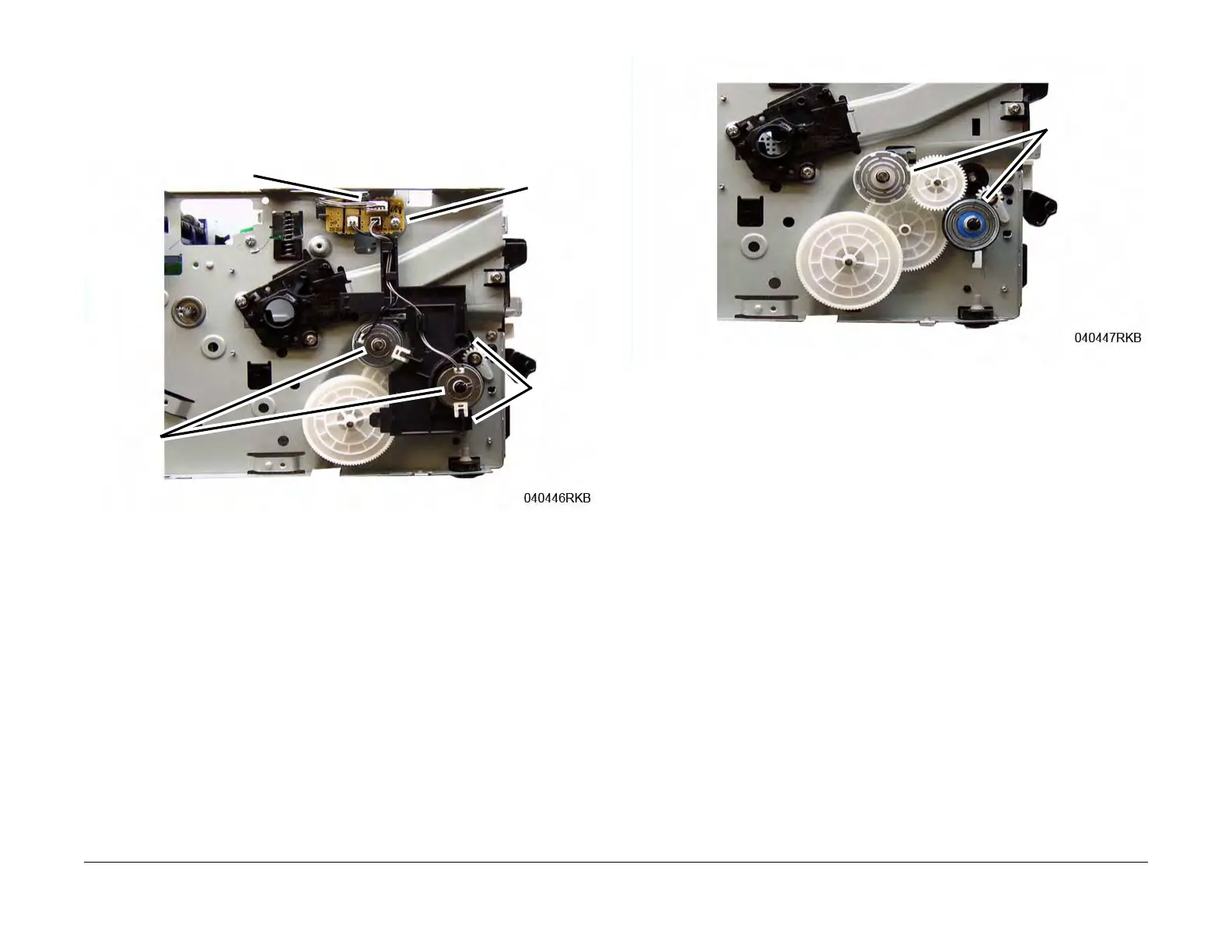

Figure 3 Feed and Registration Clutch / Paper Feed PWB
6. Remove the Feed and Registration Clutch Drive Gears (Figure 4).
Figure 4 Feed and Registration Clutch Drive Gears
Screw
CN3
Snap Rings
& Washers
Latches
Clutch Drive
Gears

Xerox Phaser 3260 Specifications

General

Print Technology	Laser
Print Speed	Up to 29 ppm
First Page Out	As fast as 8.5 seconds
Duplex Printing	Automatic
Monthly Duty Cycle	Up to 30, 000 pages
Output Capacity	150 sheets
Processor Speed	600 MHz
Memory	128 MB
Supported Operating Systems	Windows, Mac OS, Linux
Connectivity	USB 2.0
Input Capacity	250 sheets
Media Sizes Supported	A4, A5, A6, B5, Executive, Folio, Legal, Letter, Oficio
PDL	PCL 6, PCL 5e, PostScript 3
