4-43
Xerox® Phaser® 3052/3260 Service Manual
REP 1.26
Repairs
13. Remove the LSU Assembly (4 screws), 2 on each side of the printer (Figure 10, Figure
11).

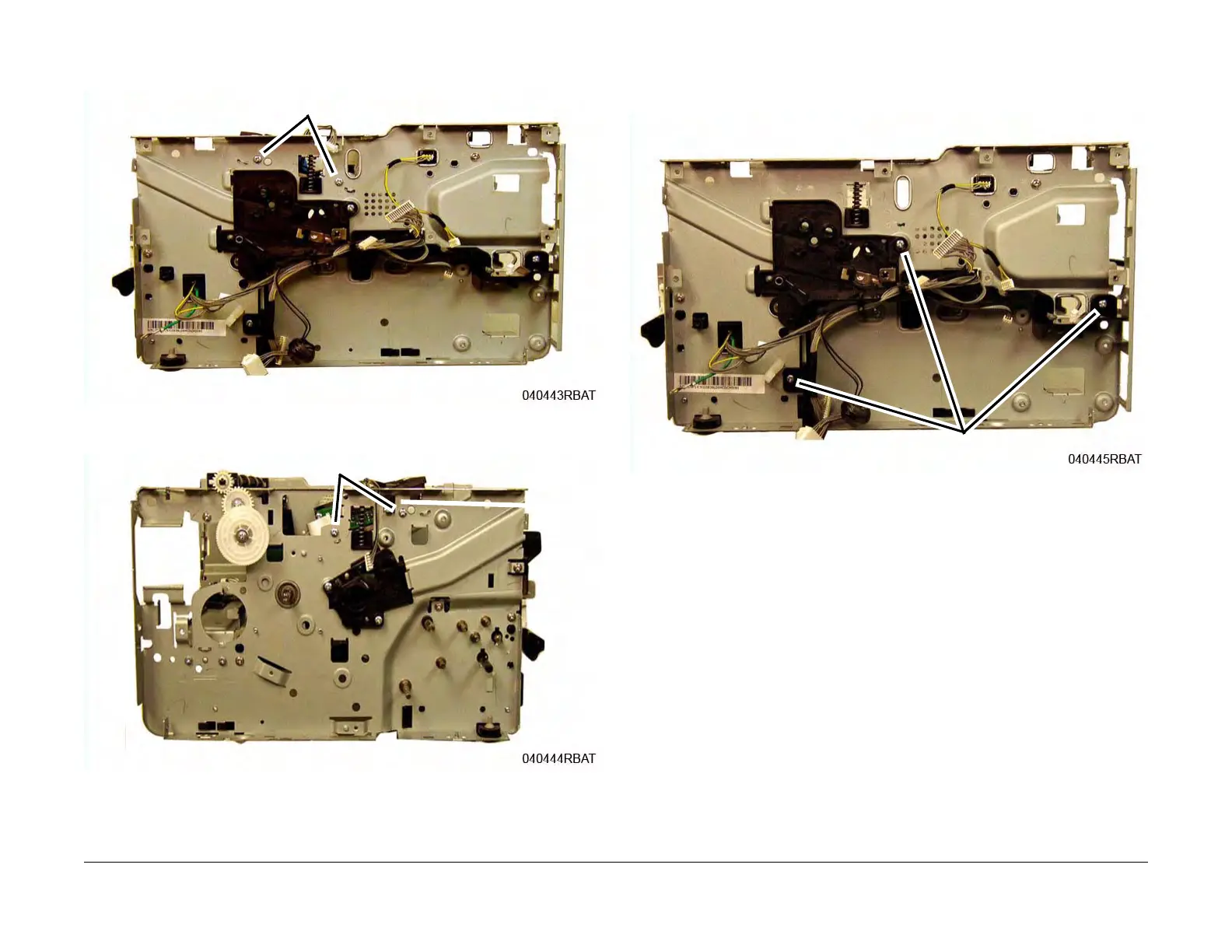

Figure 10 LSU Left Side Screws
Figure 11 LSU Right Side Screws
14. Remove the following (Figure 12):
Wire harness guide (2 screws).
High voltage contact guide (2 screws).
Figure 12 Wire Guides and HV Contact Guide
Screws
Screws
Screws

Xerox Phaser 3260 Specifications

General

Print Technology	Laser
Print Speed	Up to 29 ppm
First Page Out	As fast as 8.5 seconds
Duplex Printing	Automatic
Monthly Duty Cycle	Up to 30, 000 pages
Output Capacity	150 sheets
Processor Speed	600 MHz
Memory	128 MB
Supported Operating Systems	Windows, Mac OS, Linux
Connectivity	USB 2.0
Input Capacity	250 sheets
Media Sizes Supported	A4, A5, A6, B5, Executive, Folio, Legal, Letter, Oficio
PDL	PCL 6, PCL 5e, PostScript 3
