June 2014
4-45
Xerox® Phaser® 3052/3260 Service Manual
REP 1.26
Repairs

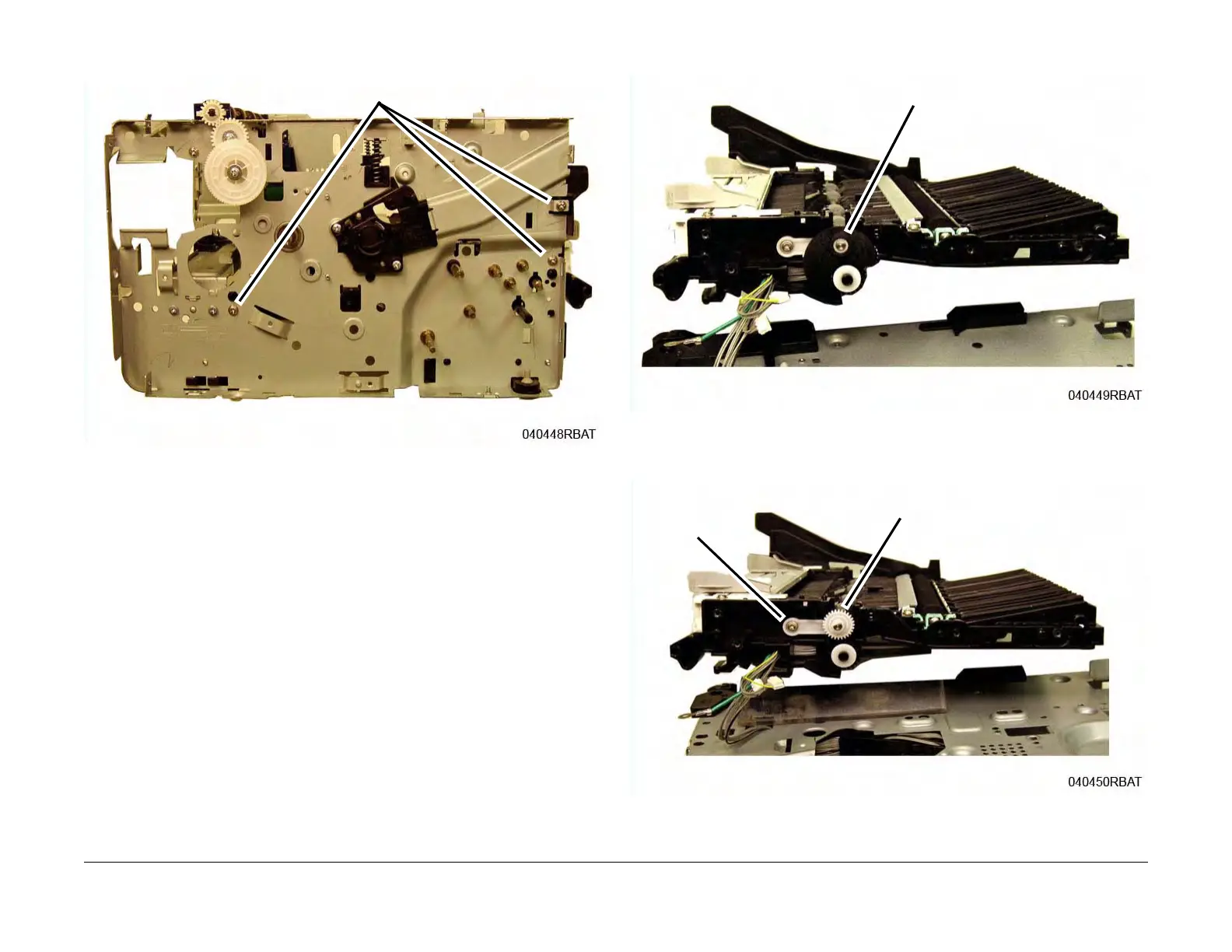

17. Remove the Left Frame Paper Path screws (3) (Figure 15).
Figure 15 Left Frame Screw Removal
18. Separate the Left and Right Frames from the Paper Path Frame, route the wires through
the frames as needed.
19. Remove the Reg Roll Drive Pivot Gears from the Paper Path Frame (Figure 16).
Figure 16 Registration Roll Drive Pivot Gears
20. Remove the Reg Roll Drive Gear and Bushing (1 screw) (Figure 17).
Figure 17 Registration Roll Drive Gear and Bushing
Screws
Pivot Drive Gears
Screw
Drive Gear
