174 7 Maintenance
Cleaning the Feed Rolls for the Trays 2 - 5
The following explains how to clean the feed rolls for Tray 2. The procedure is the same for
all trays.

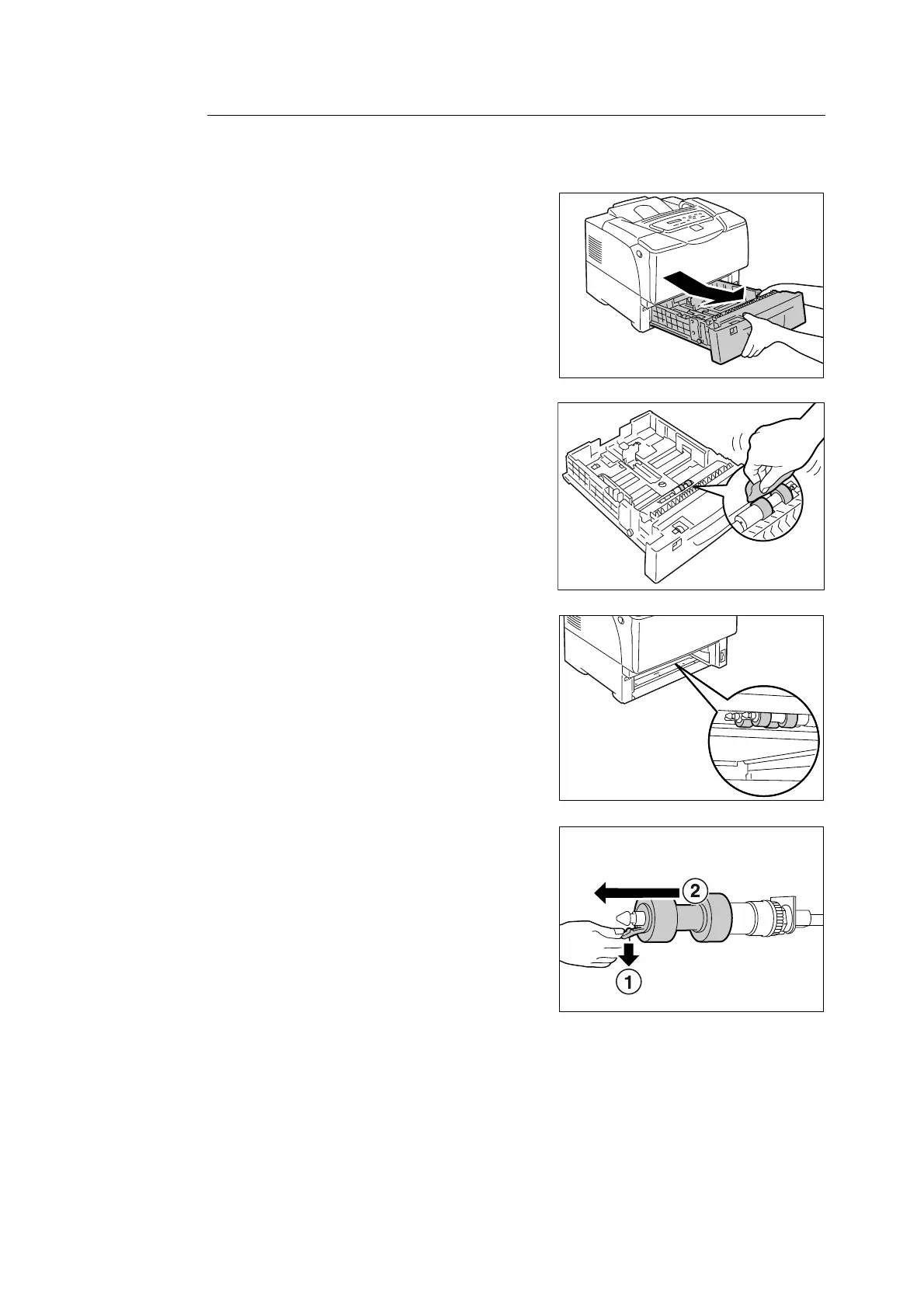

1. Pull out the tray until it stops. Hold the tray
with both hands, lift it up slightly, and then
pull it out completely.
2. Open the roll cover by holding its both
sides. While rotating the feed roll, wipe the
rubber part with a soft, damp cloth
moistened with water.
3. Clean the feed rolls inside the printer. First,
identify the location of the feed rolls. There
are two orange feed rolls on the upper side
of the tray slot.
4. Remove the tab of the feed roll on the front
shaft to unlock the feed roll, and pull the
feed roll out of the shaft.
5. Remove the feed roll from the back shaft in
the same manner.
To Next Page
