Xerox Phaser 7400 User Guide

Clearing Paper Jams
Phaser® 7400 Color Printer
6-3
Jams in the Printer
This section includes:
■ Jam Under Imaging Units on page 6-3
■ Jam in Fuser or Jam at Duplex Entrance on page 6-8
■ Jam in Duplex Unit on page 6-13
■ Jam at Door A or Misfeed at Tray 1 (MPT) on page 6-19
■ Jam at Door B or Misfeed at Tray 2 on page 6-24
■ Jam at Door C or Misfeed at Trays 3–6 on page 6-27
■ Jam at Door D on page 6-30
■ Jam at Door E on page 6-33
Jam Under Imaging Units
Follow these steps to clear the jam.

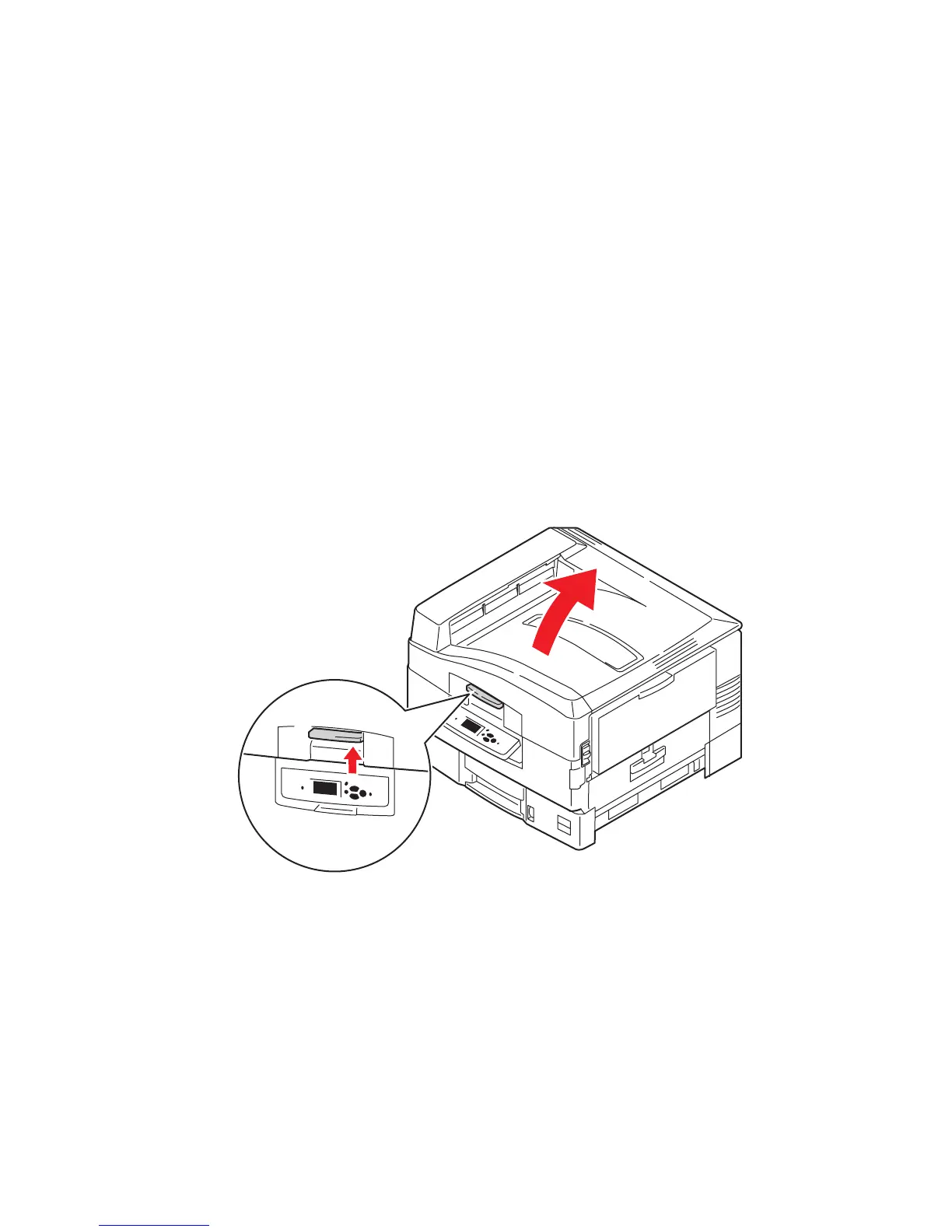

1. Lift the latch on the front of the printer to open the top cover and raise it to its fully open
position.
Caution: To prevent print-quality problems, avoid touching or handling the LED bars.
7400-055

Xerox Phaser 7400 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	600 x 1200 DPI
Time to first page (black, normal)	12 s
Print speed (black, normal quality, A4/US Letter)	40 ppm
Print speed (color, normal quality, A4/US Letter)	36 ppm
Storage media	HDD
Internal memory	512 MB
Processor model	PowerPC
Maximum internal memory	1 MB
Internal storage capacity	20 GB
Total input capacity	800 sheets
Maximum input capacity	3000 sheets
Paper tray 2 input capacity	350 sheets
Auto document feeder (ADF) input capacity	1650 sheets
Maximum print size	297 x 420 mm
Paper tray media types	Envelopes, Labels, Transparencies
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Letter (media size), Statement (140 x 216mm), Legal (media size)
Maximum ISO A-series paper size	A3
Power requirements	100-240V, 50/60Hz
Networking features	Fast Ethernet
Supported media weight(s)	270 g/m²
Maximum operating temperature range (T-T)	10 - 32 °C
Certification	FCC p.15 A, CE
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	-4 - 140 °F
Storage relative humidity (H-H)	10 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Maximum duty cycle	150000 pages per month

Weight and Dimensions

Dimensions (WxDxH)	1438 x 623 x 975 mm
