Paper and Media
Xerox
®
VersaLink
®
B7025/B7030/B7035 Multifunction Printer 171
User Guide
Loading Labels in Trays 3 and 4
1. Pull out Tray 3 or Tray 4 until it stops. Wait for the tray to lower and stop.
Note: Ensure that labels are the correct size for the tray. Do not load custom-size paper into
Trays 3 or 4.

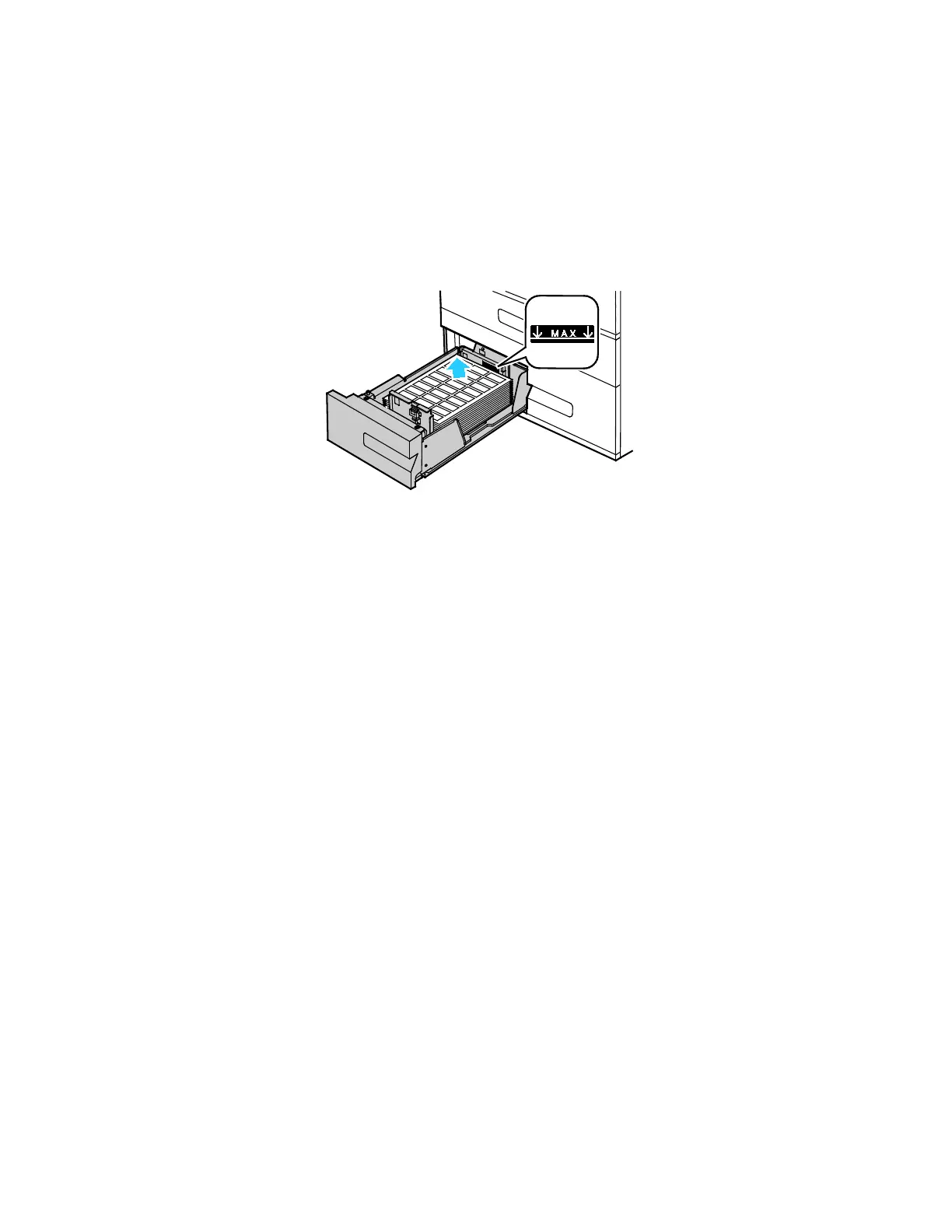

2. To load labels in the tray, insert labels face up with the top edge toward the back. Stack the labels
against the left-rear corner of the tray as shown.
3. S
lide the tray back into the printer.
4. At the control panel, select the correct paper type and color. Ensure that the paper type is set to
Labels.
Note: To change the paper settings when the tray is set to Dedicated mode, refer to Configuring
Tray Settings on page 149.
5. To confirm the settings, touch OK.
6. To return to the Home screen, press the Home button.
