Xerox WorkCentre 3025NI Service Manual

June 2014
5-10
Xerox® WorkCentre® 3025 Multifunction Printer Service Manual
PL 4.2
Parts Lists

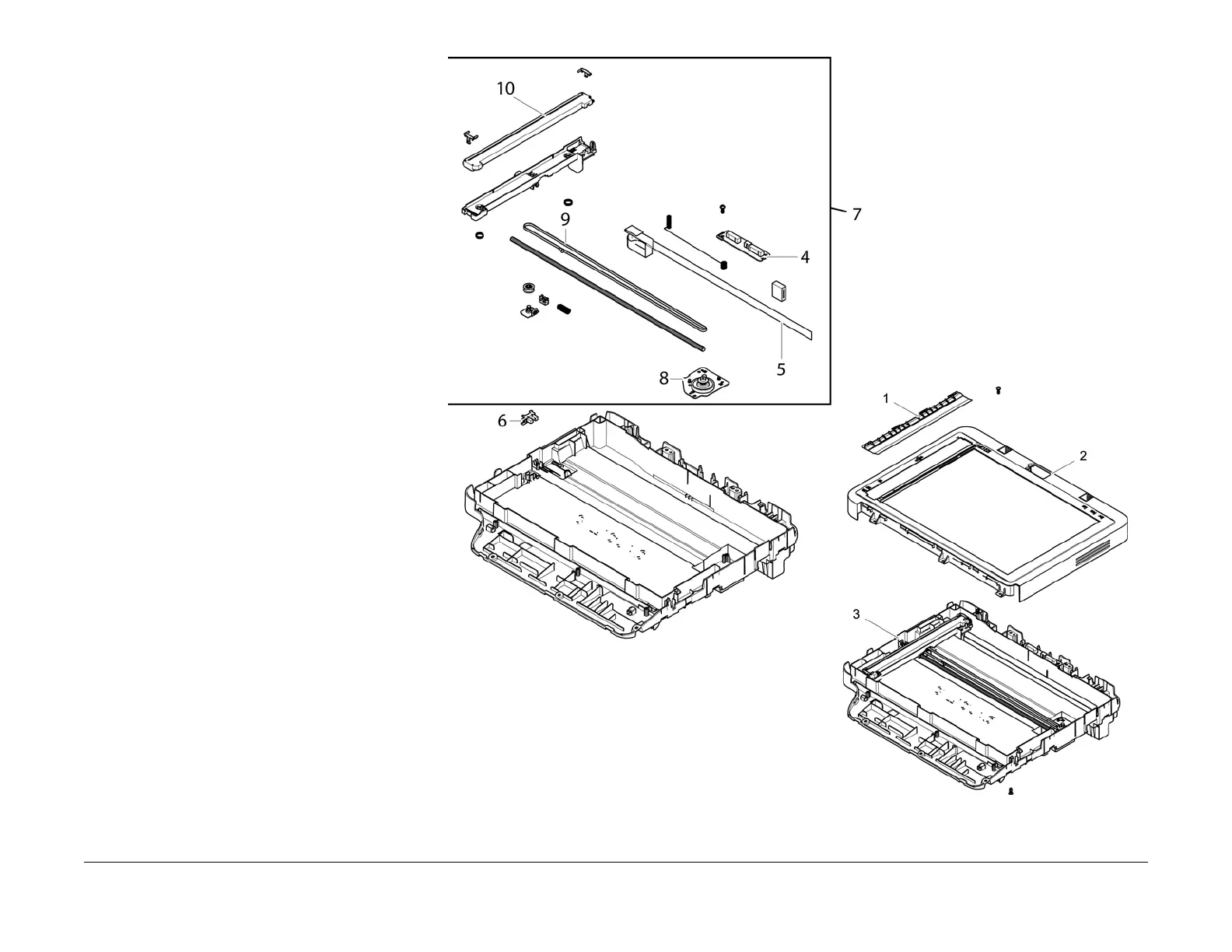

PL 4.2 Scanner
Item Part Description
1 – Paper Guide
2 – Upper Scanner Frame
3 – Lower Scanner Frame
4 – Scanner PWB
5 – Flat Cable
6 – Sensor
7 – Platen Scanner
8 – Platen Drive
9 – Drive Belt
10 – Contact Image Sensor
