Xerox® WorkCentre® 3025 Multifunction Printer Service Manual
REP 1.4, REP 1.5
Repairs
Replacement
1. IMPORTANT
If the Middle Cover is being replaced, remove the Tag Matrix from the old cover and install
it on to the new Middle Cover (Figure 4).

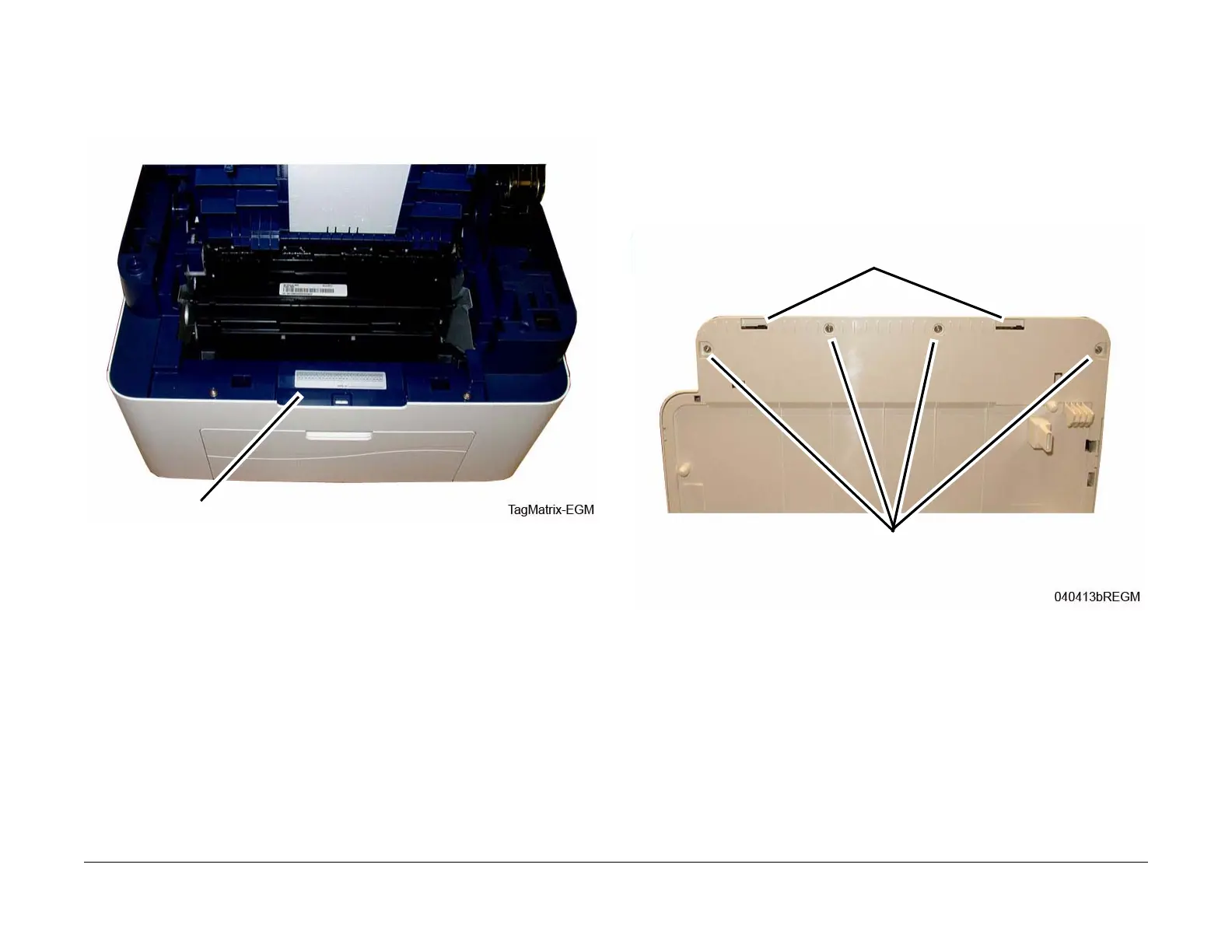

Figure 4 Tag Matrix Location
NOTE: Tapered Plastic Screws and Round Machine Screws are used to hold the PWB to the
frame. Make sure that the Plastic Screws go into plastic components and Machine Screws go
into the metal frame.
Install the components in the reverse of removal.
REP 1.5 Control Panel PWB
Parts List on PL 3.1 and PL 3.2
Removal
1. Switch Off the Printer and unplug the Power Cord.
2. For the 3025 NI, remove the ADF (REP 1.22).
3. Open the Scanner and release the Control Panel from the Scanner (Figure 1).
a. Remove the screws (4).
b. Release the latches (2).
Figure 1 Releasing the Control Panel (Bottom View)
Tag Matrix
Latches
Screws
