Xerox WorkCentre 3025NI Service Manual

June 2014
4-9
Xerox® WorkCentre® 3025 Multifunction Printer Service Manual
REP 1.5
Repairs
4. Disconnect the connectors (3) and remove the Control Panel:
a. For the 3025 BI refer to (Figure 2).
b. For the 3025 NI refer to (Figure 3)

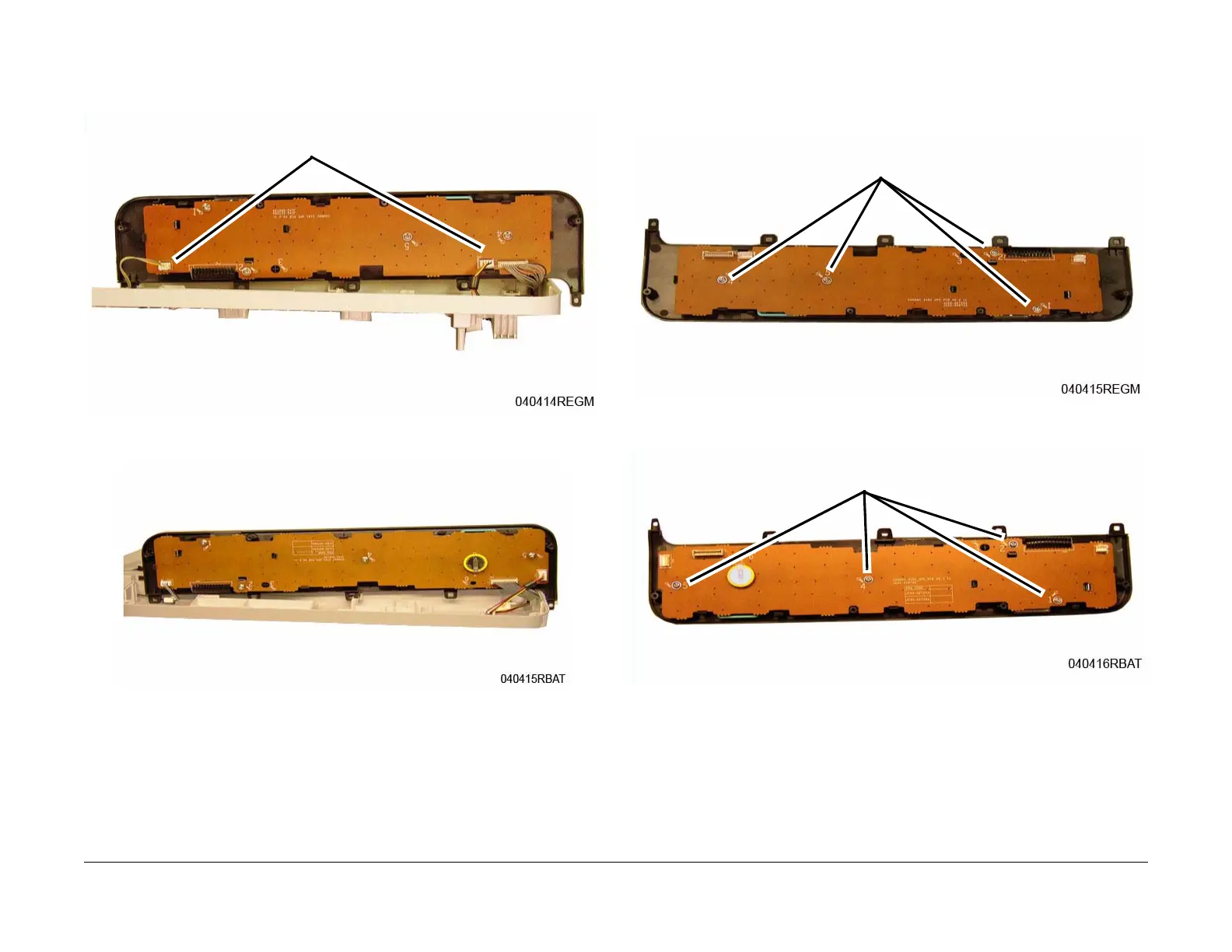

Figure 2 Control Panel Removal 3025 BI (Front View)
Figure 3 Control Panel Removal 3025 NI (Front View)
5. Remove the Control Panel PWB:
a. Remove the screws (4), release the latches and remove the PWB.
For the 3025 BI refer to (Figure 4).
For the 3025 NI refer to (Figure 5).
Figure 4 Control Panel PWB Removal 3025 BI
Figure 5 Control Panel PWB Removal 3025 NI
Replacement
Install the components in the reverse of removal.
Connectors
Screws
Screws
