Xerox® WorkCentre® 3025 Multifunction Printer Service Manual
REP 1.24, REP 1.25
Repairs
Replacement
NOTE: Make sure the post on the Separation Pad is positioned inside the Spring (Figure 3).
Install the components in the reverse of removal.

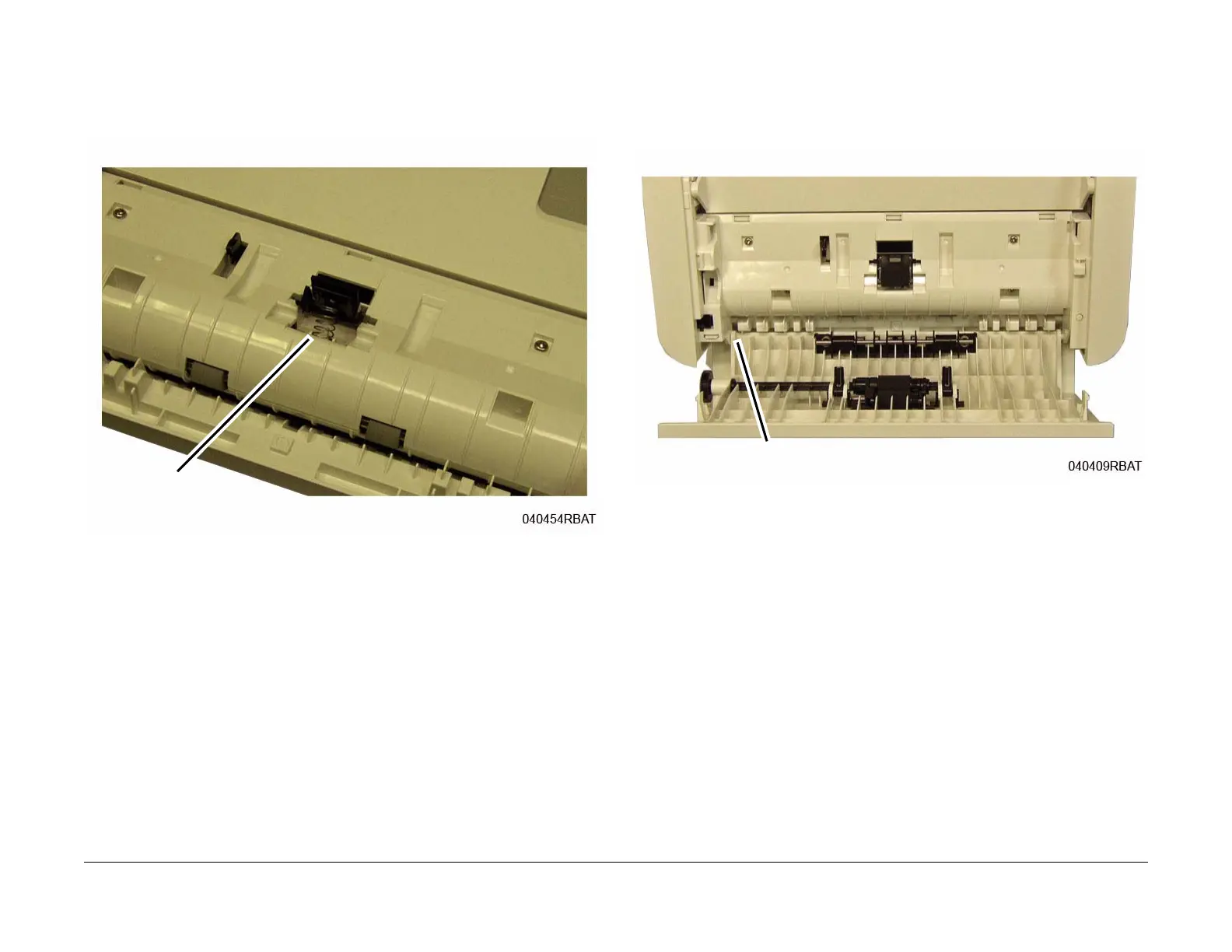

Figure 3 Separation Pad Spring (Top View)
REP 1.25 ADF Feed Rolls Assembly
Parts List on PL 1.3
Removal
1. Remove the ADF Cover, release the Rear Pivots and remove the cover (Figure 1).
Figure 1 ADF Cover Pivots (Top View)
Spring
Rear Pivot
