Xerox WorkCentre 3025NI Service Manual

June 2014
4-14
Xerox® WorkCentre® 3025 Multifunction Printer Service Manual
REP 1.8
Repairs
REP 1.8 Left Frame and Drive Motor
Parts List on PL 5.4
Removal
1. Switch Off the Printer and unplug the Power Cord.
2. Remove the Print Cartridge.
3. Remove the Middle Cover (REP 1.4).
4. Disconnect the Drive Motor connector (Figure 1).

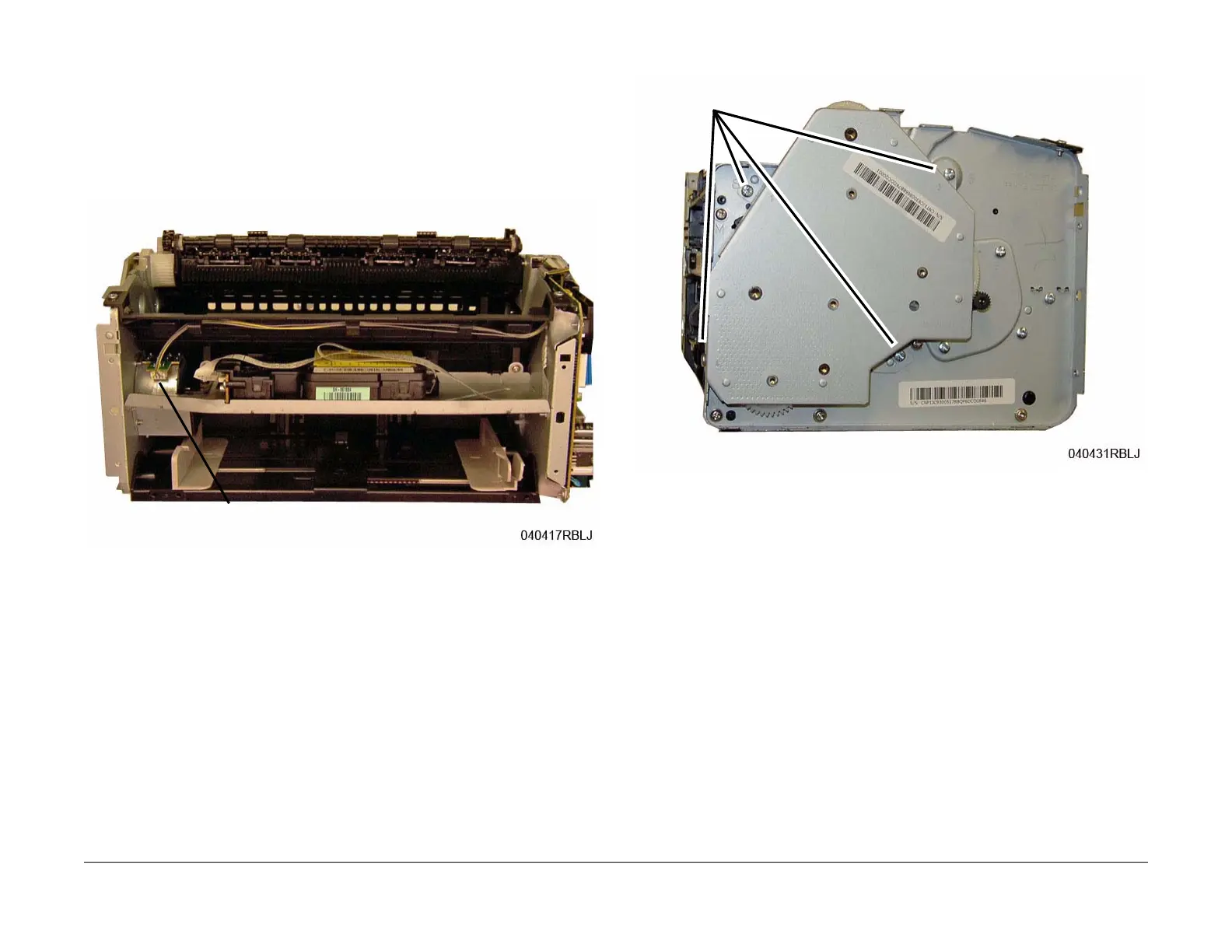

Figure 1 Drive Motor Connector (Front View)
5. Remove the Fuser Module (REP 1.17).
6. Remove the Main Drive Unit (4 screws) (Figure 2).
Figure 2 Main Drive Unit Removal (Left View)
Connector
Screws
