Xerox WorkCentre 3025NI Service Manual

June 2014
5-12
Xerox® WorkCentre® 3025 Multifunction Printer Service Manual
PL 5.2
Parts Lists

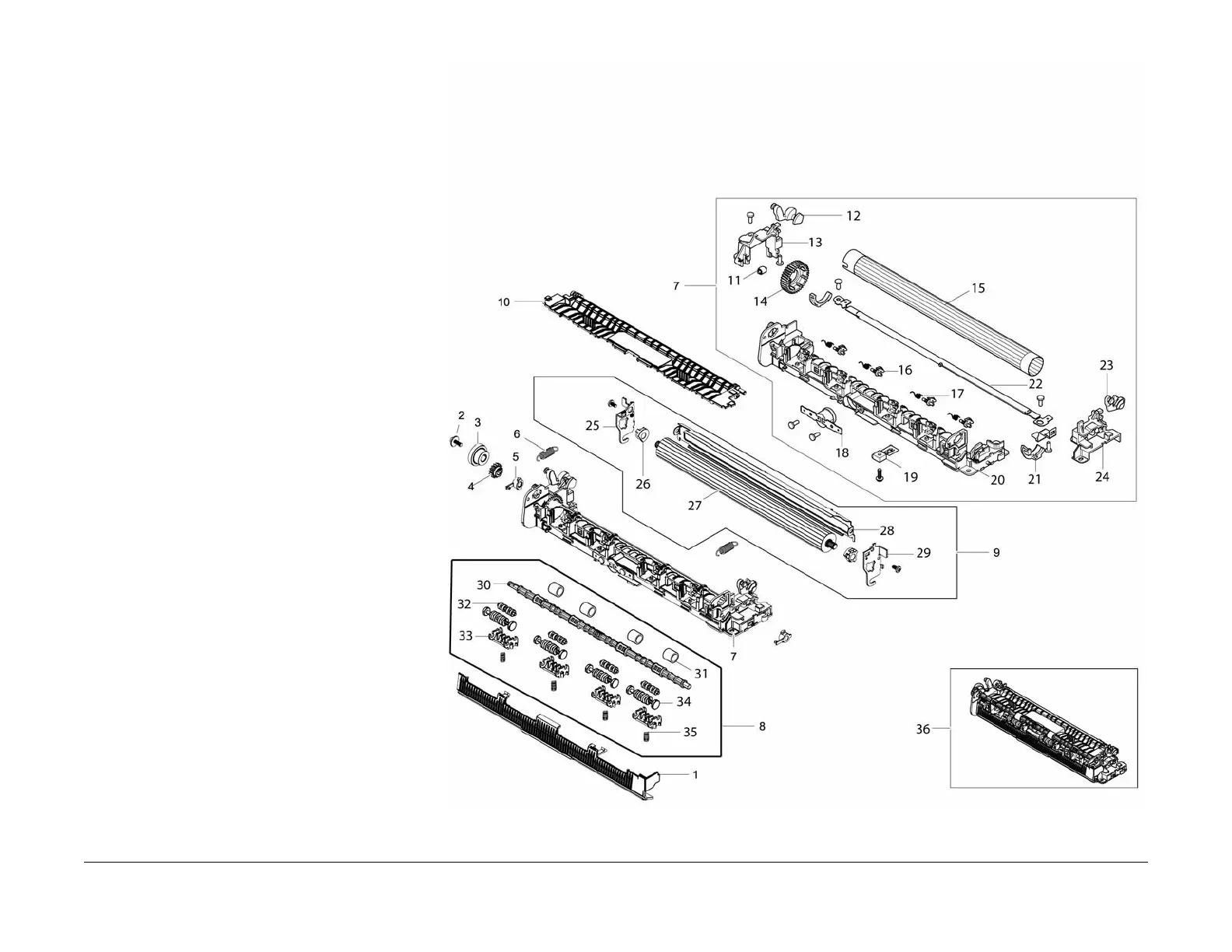

PL 5.2 Fuser
Item Part Description
1 – Exit Cover
2– Screw
3 – Exit Drive Gear
4 – Exit Gear
5 – Exit Shaft Bushing
6– Spring
7 – Upper Fuser
8 – Exit Roller
9 – Lower Fuser
10 – Fuser Cover
11 – Gear
12 – Jam Lever
13 – Lamp Cover
14 – Gear
15 – Heat Roll
16 – Claw Guide
17 – Spring
18 – Thermostat
19 – Thermistor
20 – Fuser Cover
21 – Bushing
22 – Fuser Lamp
23 – Right Jam Lever
24 – Lamp Cover
25 – Bracket
26 – Bushing
27 – Pressure Roll
28 – Frame
29 – Bracket
30 – Exit Shaft
31 – Rubber Rolls
32 – Exit Roll
33 – Exit Holder
34 – Exit Roll
35 – Spring
36 126N00432 FUSER Module 110V
– 126N00433 FUSER Module 220V
