Xerox® WorkCentre® 3025 Multifunction Printer Service Manual
REP 1.1
Repairs
REP 1.1 Left and Right Side Covers
Parts List on PL 1.1 and PL 1.2
Removal
1. Switch Off the Printer and disconnect the Power Cord.
2. Remove the Front Cover (REP 1.2).
3. Remove the screw (1) for the Left or Right Side Cover at the rear of the printer (Figure 1).

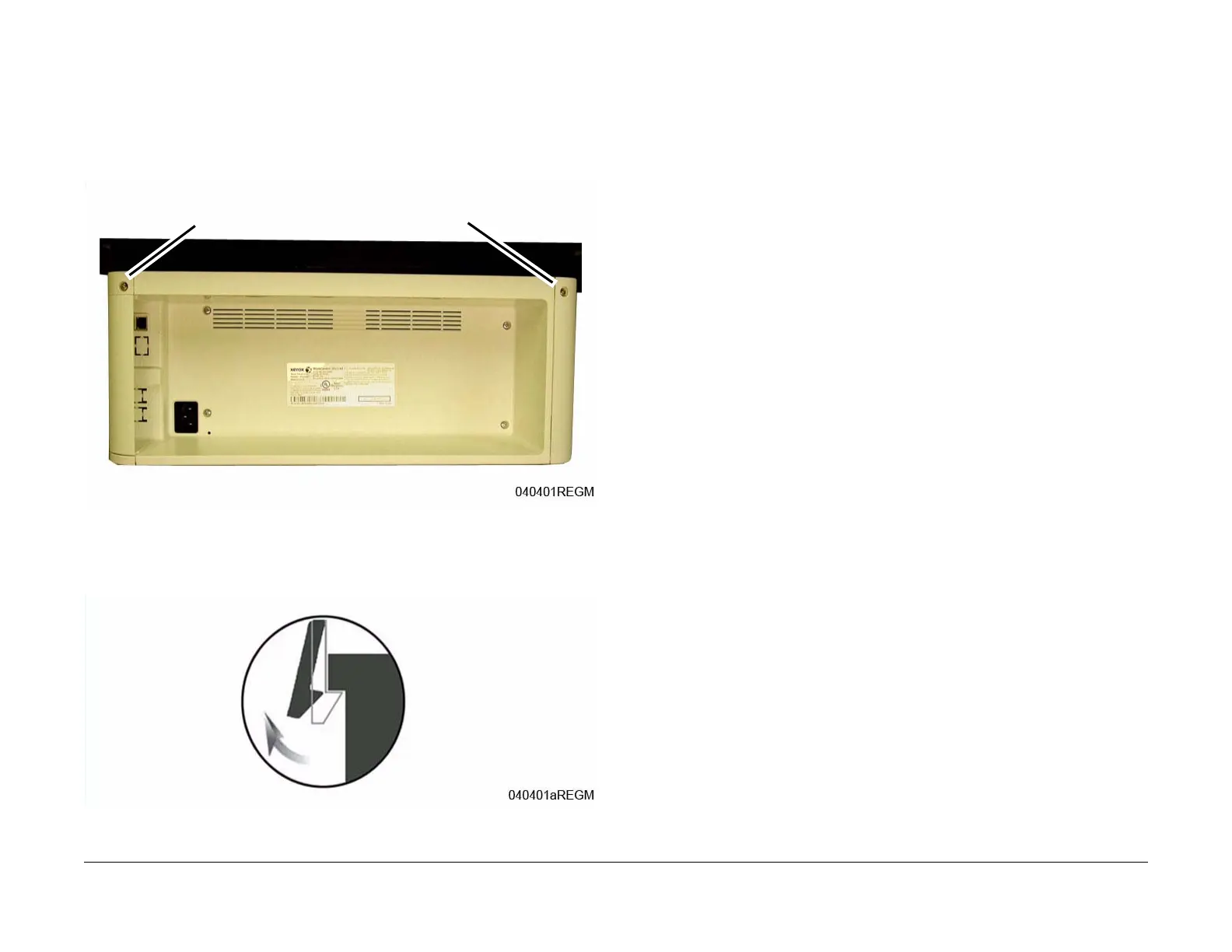

Figure 1 Left and Right Cover Screws (Rear View)
4. Remove the Side Covers being careful not to damage the Fastening Hooks (Figure 2):
a. Pull the bottom of the cover away from the printer to remove it.
Figure 2 Fastening Hooks
Replacement
Install the components in the reverse of removal.
Right Cover Screw
Left Cover Screw
