June 2014
4-5
Xerox® WorkCentre® 3025 Multifunction Printer Service Manual
REP 1.3
Repairs
REP 1.3 Rear Cover
Parts List on PL 1.1 and PL 1.2
Removal
1. Switch Off the Printer and disconnect the Power Cord.
2. Remove the following covers:
a. The Front Cover (REP 1.2).
b. The Left and Right Side Covers Cover (REP 1.1).
3. Release the wires from the wire guides on the Rear Cover (Figure 1).

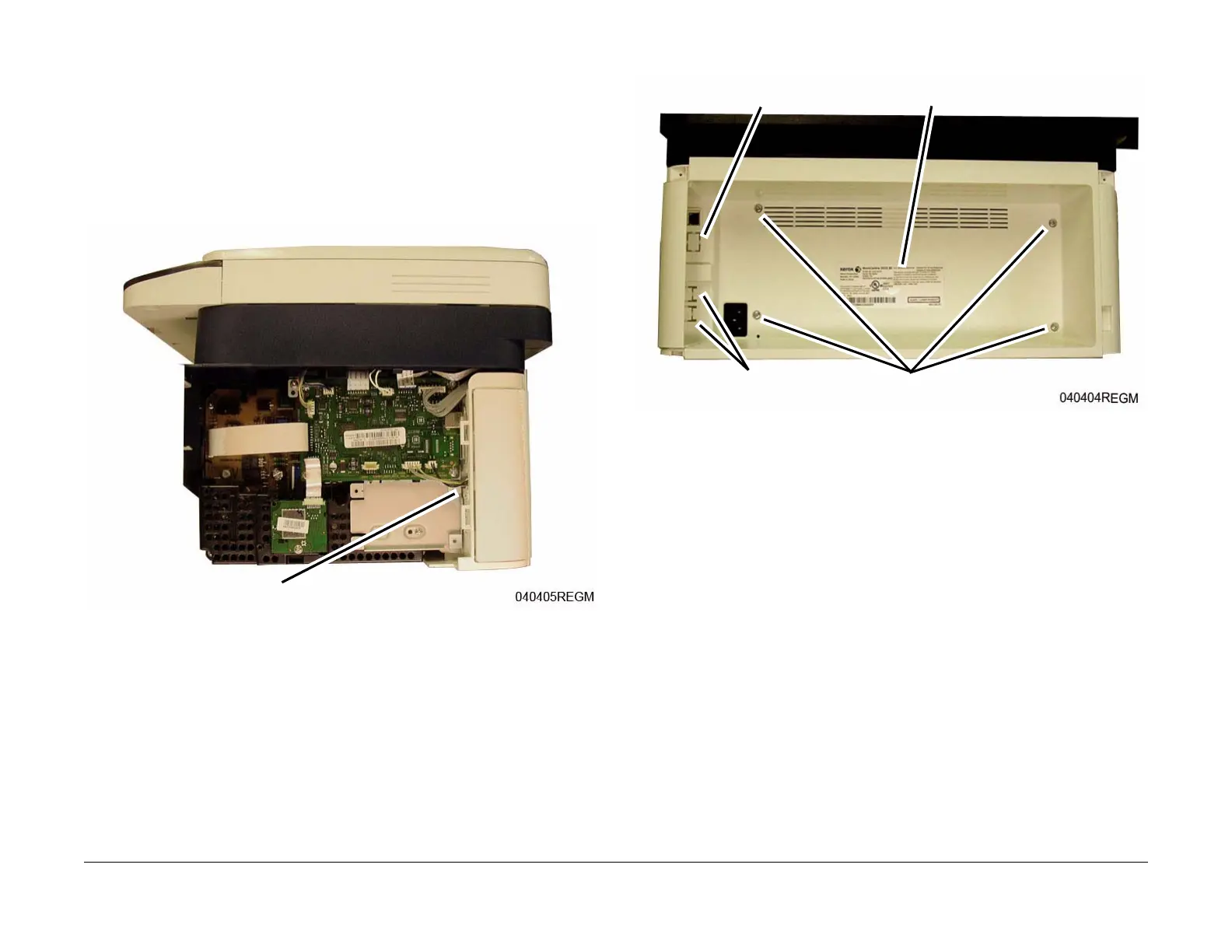

Figure 1 Rear Cover Wires to Release
4. Remove the Scanner Module (REP 1.10).
5. Remove the Rear Cover screws (4) (Figure 2).
Figure 2 Rear Cover Screws and Connector Locations (Rear View 3025 BI)
Wire Guides
Screws
Network
FAX
Data Plate Label
To Next Page
