Xerox® WorkCentre® 3025 Multifunction Printer Service Manual
IQ9, IQ10
Image Quality
IQ9 Residual Image (Ghosting) RAP
The image from a previous print appears on the current print (Figure 1).
Procedure
Switch Off the Power.
Check the Transfer Roller for the following PL 5.1:
• Wear or damage.
• The left and right tension springs for damage.
• Be sure all parts are installed correctly.
The Transfer Roll is OK.
YN
Replace the Transfer Roll; (REP 1.17), PL 5.1.
If problem persists, Replace components in the following order:
• Print Cartridge, refer to WorkCentre® 3025 User Guide for detailed instructions on how to
replace the Print Cartridge.
• Fuser Module; (REP 1.19), PL 5.2.
• LVPS / HVPS PWB; (REP 1.6), PL 5.1.

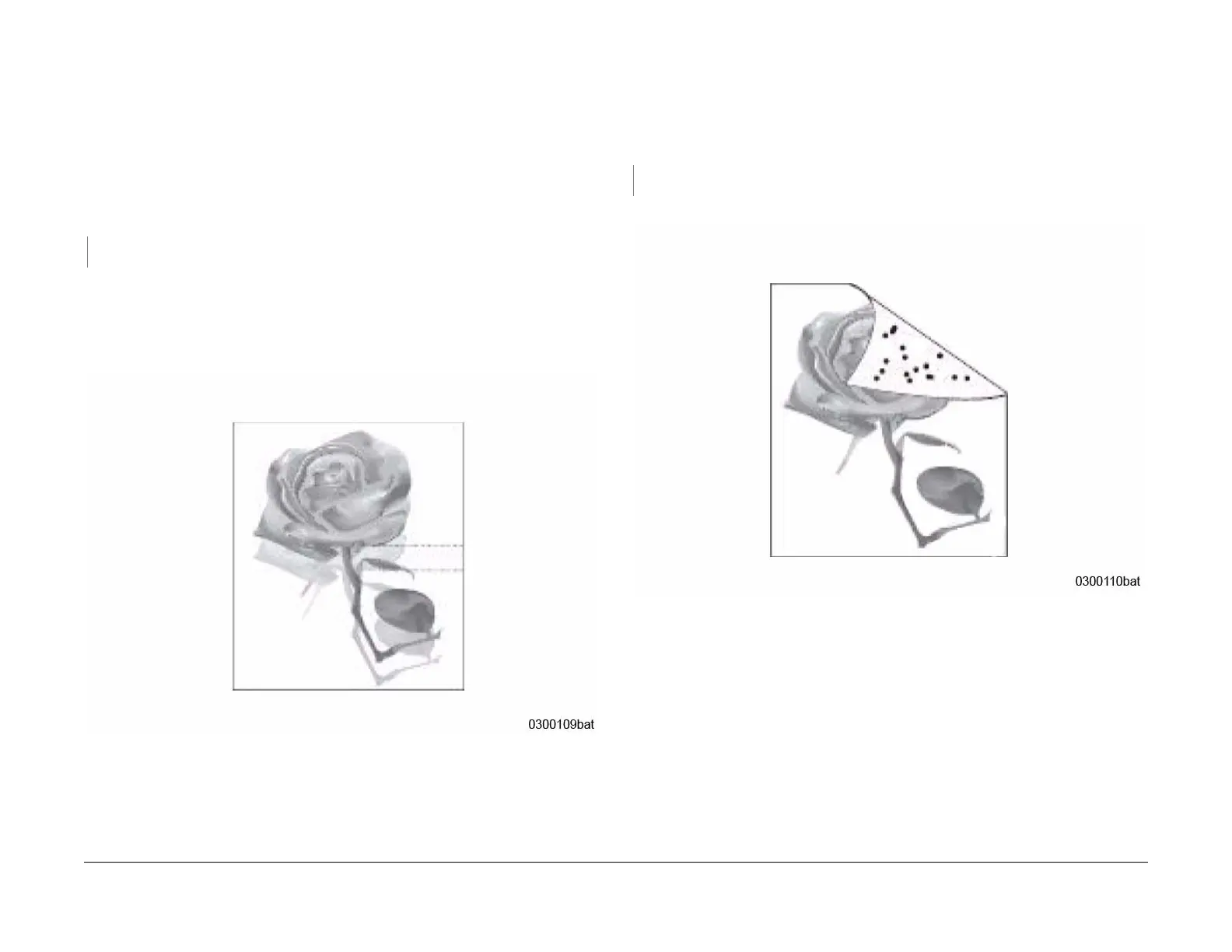

Figure 1 Ghost Image
IQ10 Side 2 Staining
Side 2 of a simplex print is stained (Figure 1).
Procedure
Switch Off the power. Check the Transfer Roller for wear or contamination. The Transfer
Roller is OK.
YN
Replace the Transfer Roll; (REP 1.17), PL 5.1.
If problem persists, replace the Fuser Module;(REP 1.19), PL 5.2.
Figure 1 Side 2 Staining
