4-4
Xerox® WorkCentre® 3025 Multifunction Printer Service Manual
REP 1.2
Repairs
REP 1.2 Front Cover
Parts List on PL 1.1 and PL 1.2
Removal
1. Switch Off the Printer and disconnect the Power Cord.
2. Open the Top Cover and Jam Clearance Cover.
3. Remove the Paper Tray Cover (Figure 1).
Release the Left Hinge, then the Right Hinge.

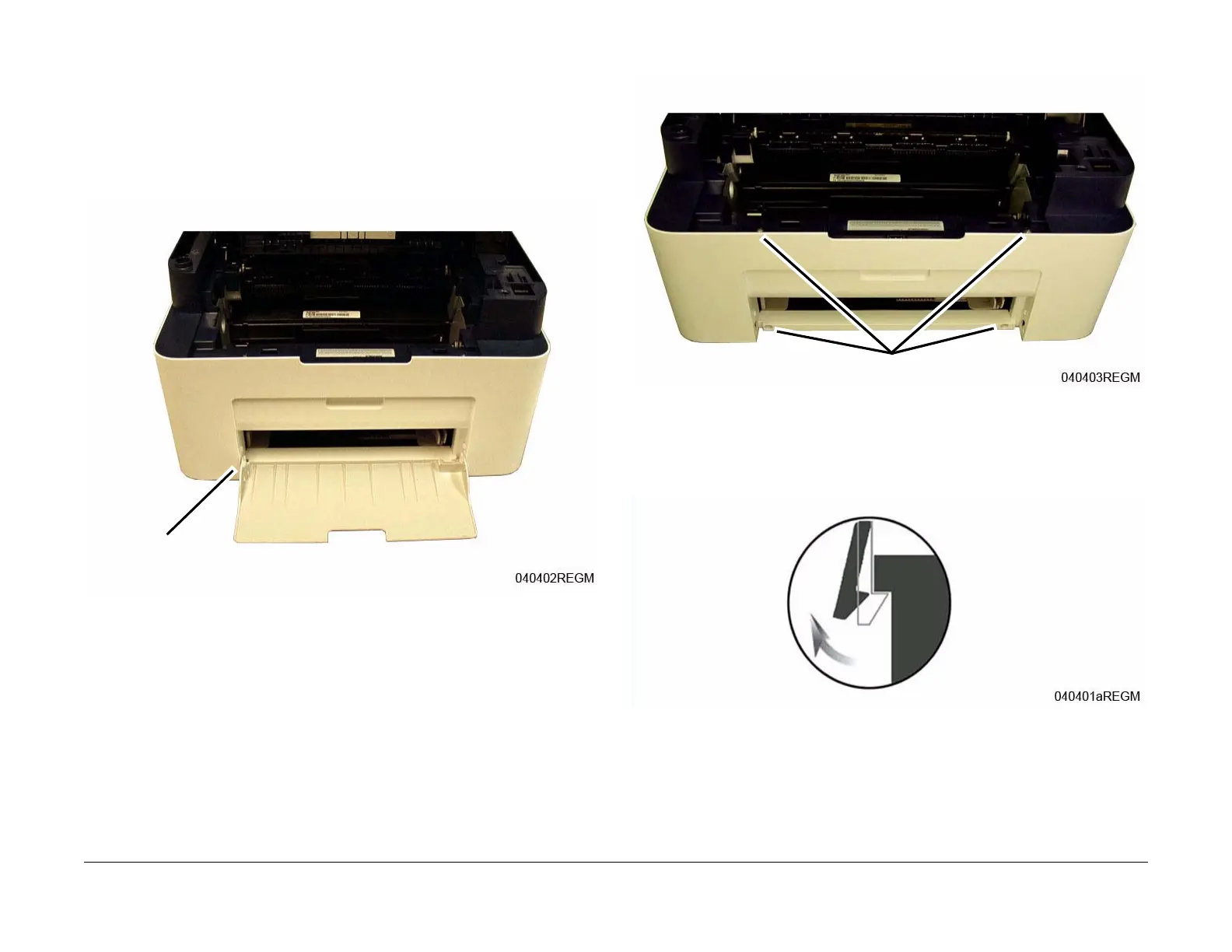

Figure 1 Paper Tray Cover Removal (Front View)
4. Remove the screws (4) (Figure 2).
Figure 2 Front Cover Screws
5. Remove the Front Cover being careful not to damage the Fastening Hooks (Figure 3):
a. Release the Bottom fasteners.
b. Release the Side fasteners, then the Top fasteners.
Figure 3 Fastening Hooks
Replacement
Install the components in the reverse of removal.
Left Hinge
Screws
