Xerox WorkCentre 3025NI Service Manual

June 2014
4-20
Xerox® WorkCentre® 3025 Multifunction Printer Service Manual
REP 1.11
Repairs
5. Remove the Platen top screws (3) (Figure 3).

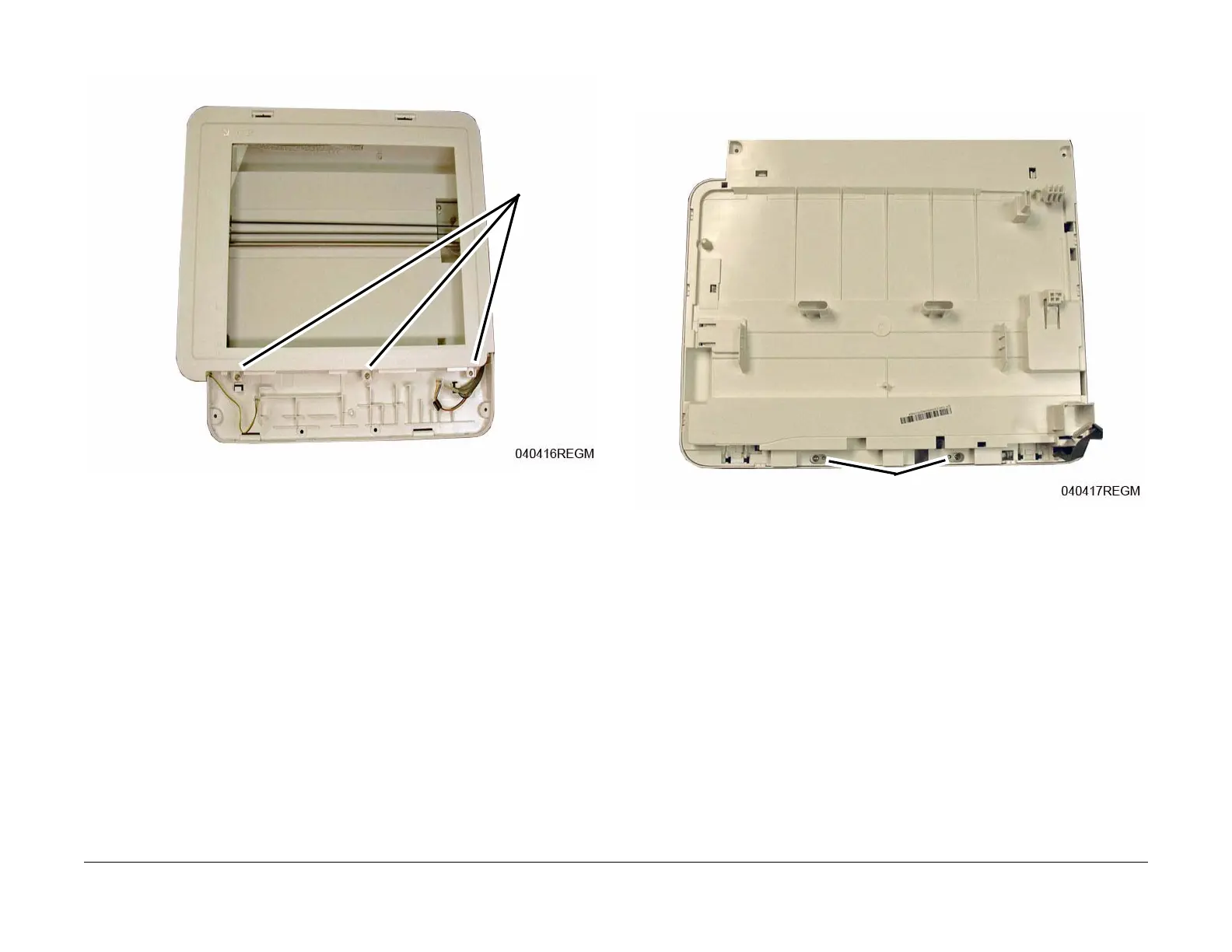

Figure 3 Platen Top Screws
6. Remove the Platen from the Scanner Module (Figure 4):
a. Remove the Platen bottom screws (2).
b. Release the latches (8) around the Platen and remove it.
Figure 4 Platen Removal
Screws
Screws
