June 2014
4-24
Xerox® WorkCentre® 3025 Multifunction Printer Service Manual
REP 1.13
Repairs

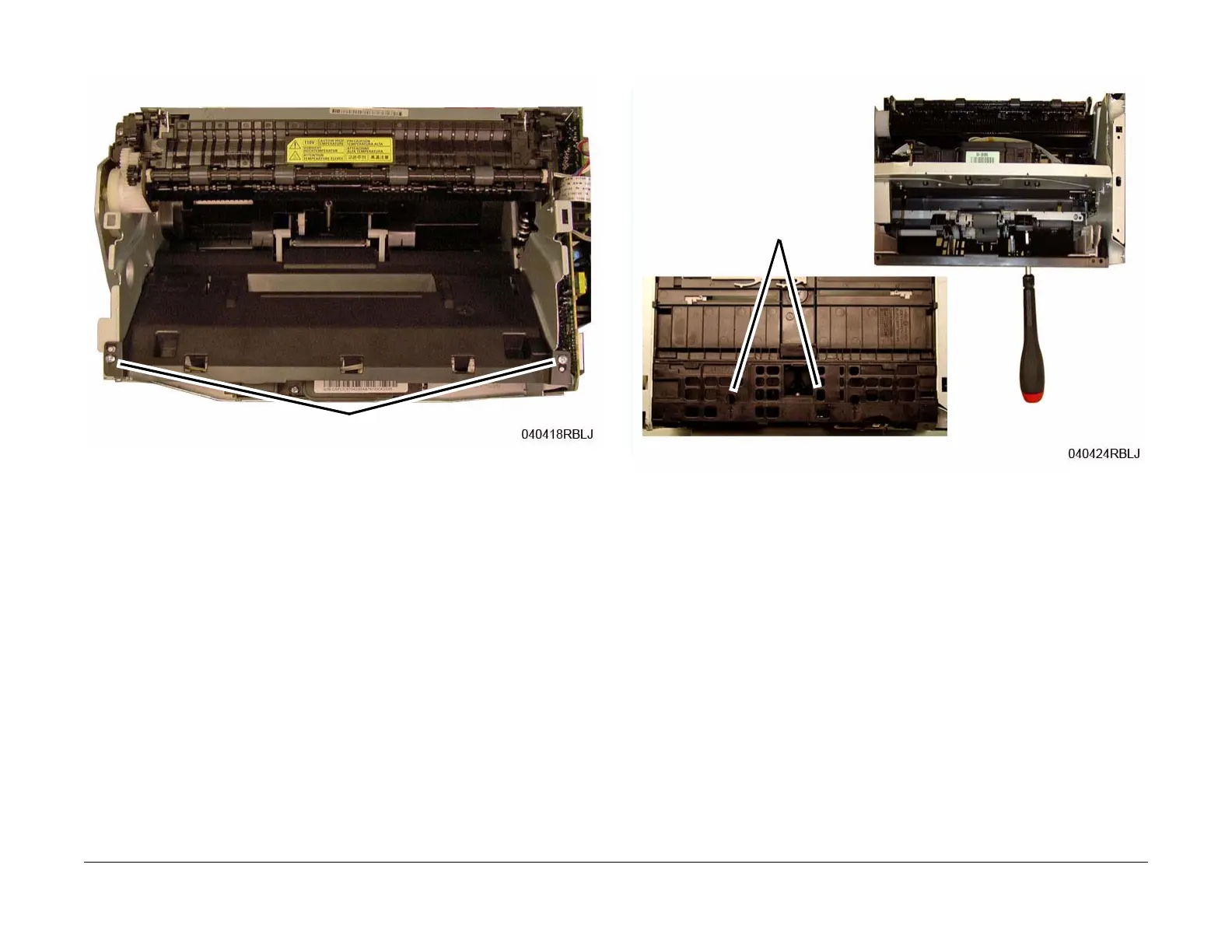

5. Remove the top LSU Cover screws (2) and the cover (Figure 2).
Figure 2 LSU Cover Top Screws (Top View)
6. Remove the Feed Rolls Assembly screws (2) through the bottom of the Printer (Figure 3).
Figure 3 Feed Rolls Assembly Screws Removal
Screw
Screwdriver Access Holes
Front View
