Xerox WorkCentre 5222 - Disconnecting the Connector (J0 St41106); Removing the IIT;IPS PWB (J0 St41107)

February, 2008
4-64
WorkCentre 5225, 5230
REP 11.3.2
Launch Version
Repairs and Adjustments
4. Disconnect the connector. (Figure 2)
1.Disconnect the connectors (x5).

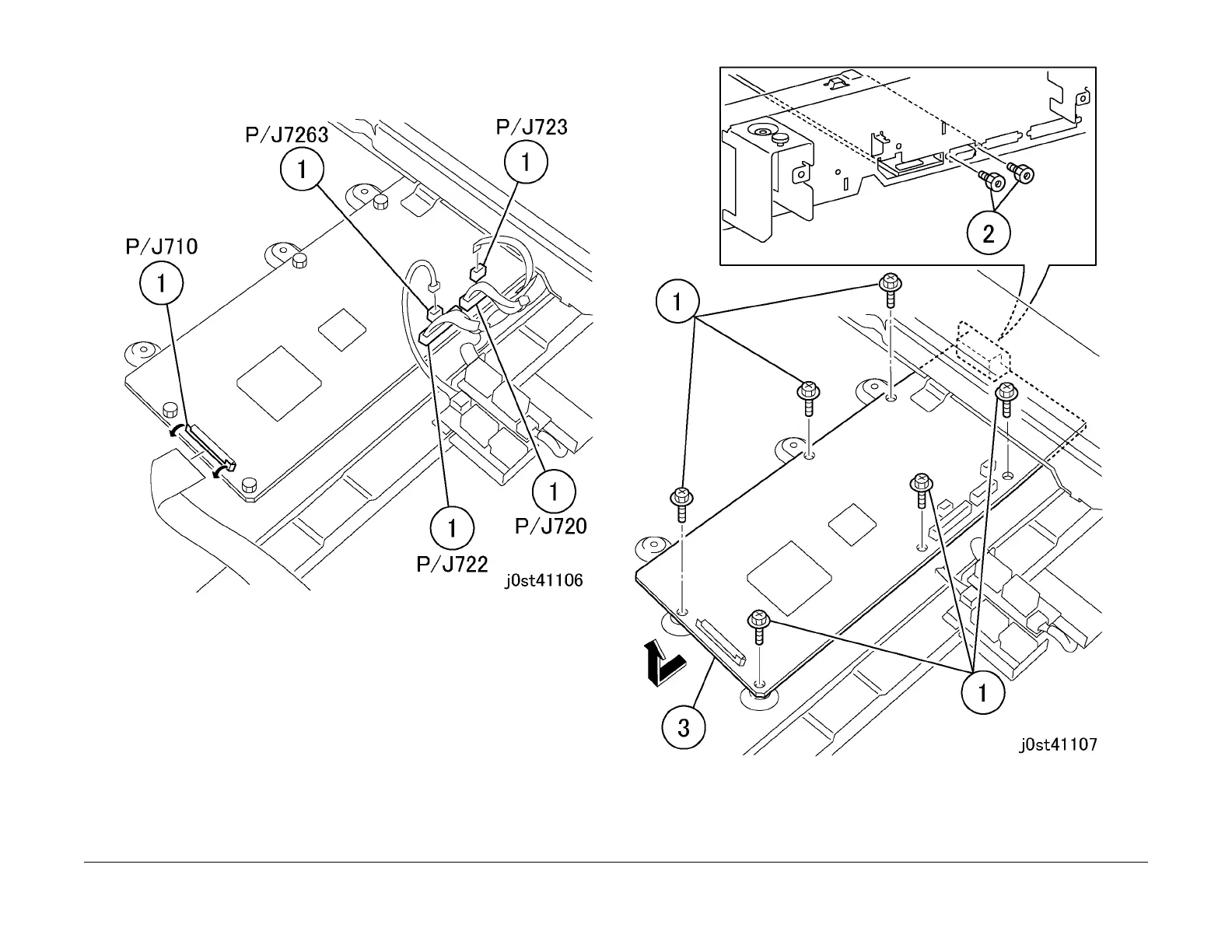

Figure 2 Disconnecting the connector (j0st41106)
5. Remove the IIT/IPS PWB. (Figure 3)
1. Remove the screws (x6).
2. Remove the screws (x2).
3. Remove the IIT/IPS PWB.
Figure 3 Removing the IIT/IPS PWB (j0st41107)
Replacement
1. To install, carry out the removal steps in reverse order.
