February, 2008
4-203
WorkCentre 5225, 5230
REP 22.8.3
Repairs and Adjustments
Launch Version
6. Remove the Bracket. (Figure 2)
(1)Remove Screw.
(2)Remove Bracket.

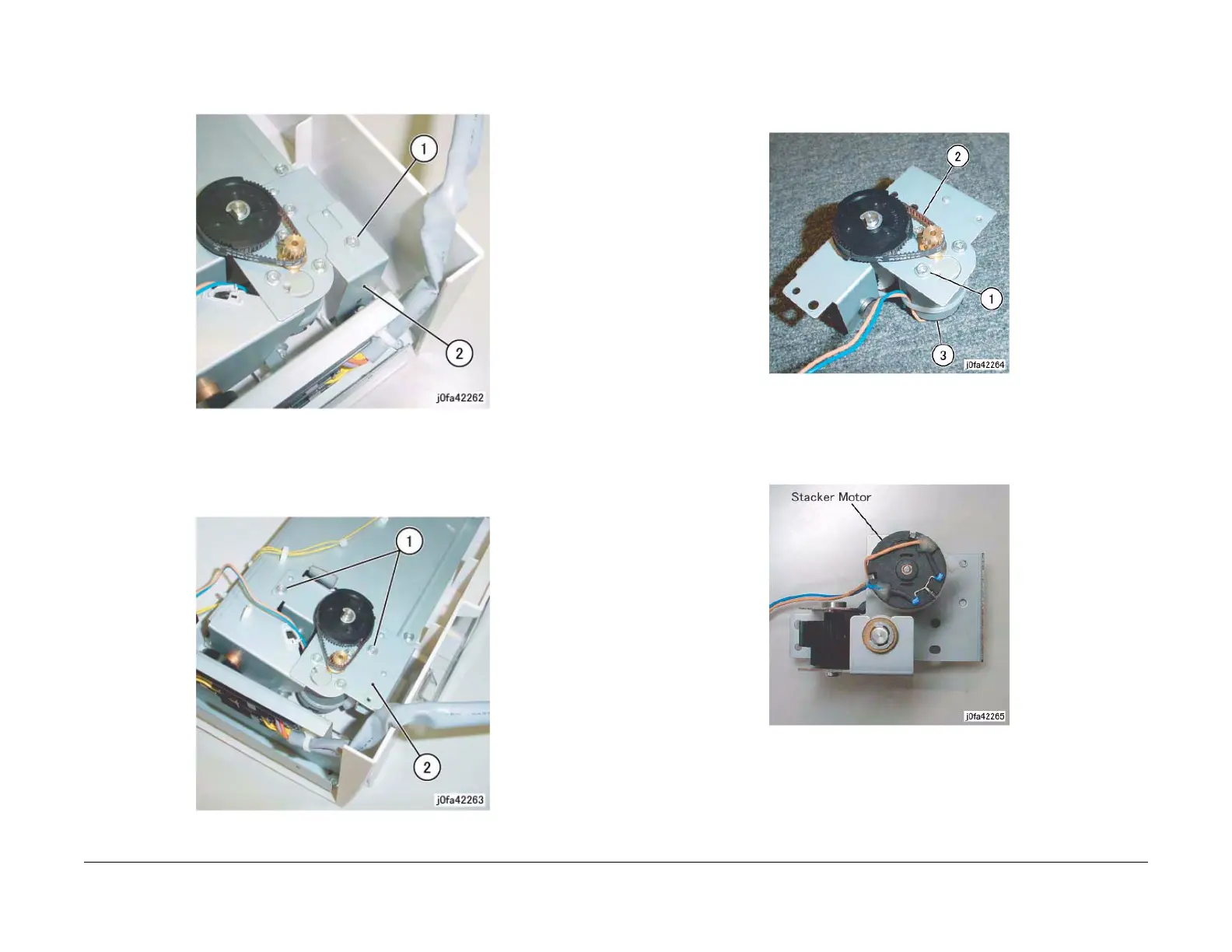

Figure 2 Removing the Bracket (j0fa42262)
7. Remove the Stacker Motor Assembly. (Figure 3)
(1)Remove Screws (2).
(2)Remove Stacker Motor Assembly.
Figure 3 Removing the Stacker Motor Assembly (j0fa42263)
8. Remove the Stacker Motor. (Figure 4)
(1)Remove Screws (3).
(2)Remove Belt from Pulley.
(3)Remove Stacker Motor.
Figure 4 Removing the Stacker Motor (j0fa42264)
Replacement
1. Reverse the removal procedure for replacement.
2. Install the Stacker Motor as shown in the figure. (Figure 5)
Figure 5 Installing the Stacker Motor (j0fa42265)
