Xerox WorkCentre 5222 - Disconnecting the CCD Flat Cable (J0 St41109); Removing the Lens Cover (J0 St41135)

February, 2008
4-66
WorkCentre 5225, 5230
REP 11.4.1
Launch Version
Repairs and Adjustments
2.Remove the Lens Cover.

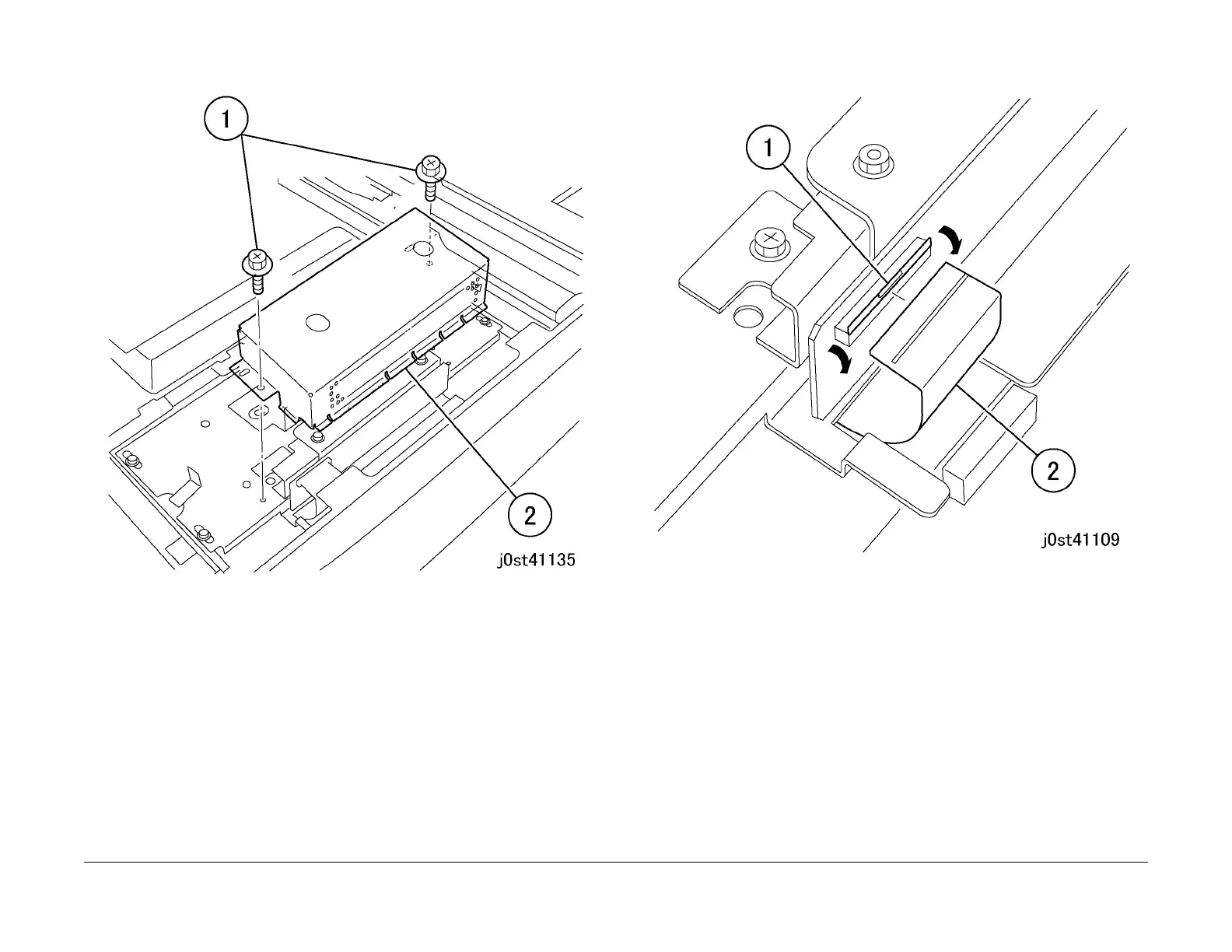

Figure 2 Removing the Lens Cover (j0st41135)
4. Disconnect the CCD Flat Cable. (Figure 3)
1.Take off the hook.
2.Disconnect the CCD Flat Cable.
Figure 3 Disconnecting the CCD Flat Cable (j0st41109)
5. Replace the Lens Kit Assembly. (Figure 4)
1. Remove the screws (x4).
2. Replace the Lens Kit Assembly.
