Xerox WorkCentre 5222 - Removing the MPT Feed Roll (J0 St40704); Removing the MPT Retard Pad (J0 St40705)

February, 2008
4-36
WorkCentre 5225, 5230
REP 7.2.1
Launch Version
Repairs and Adjustments

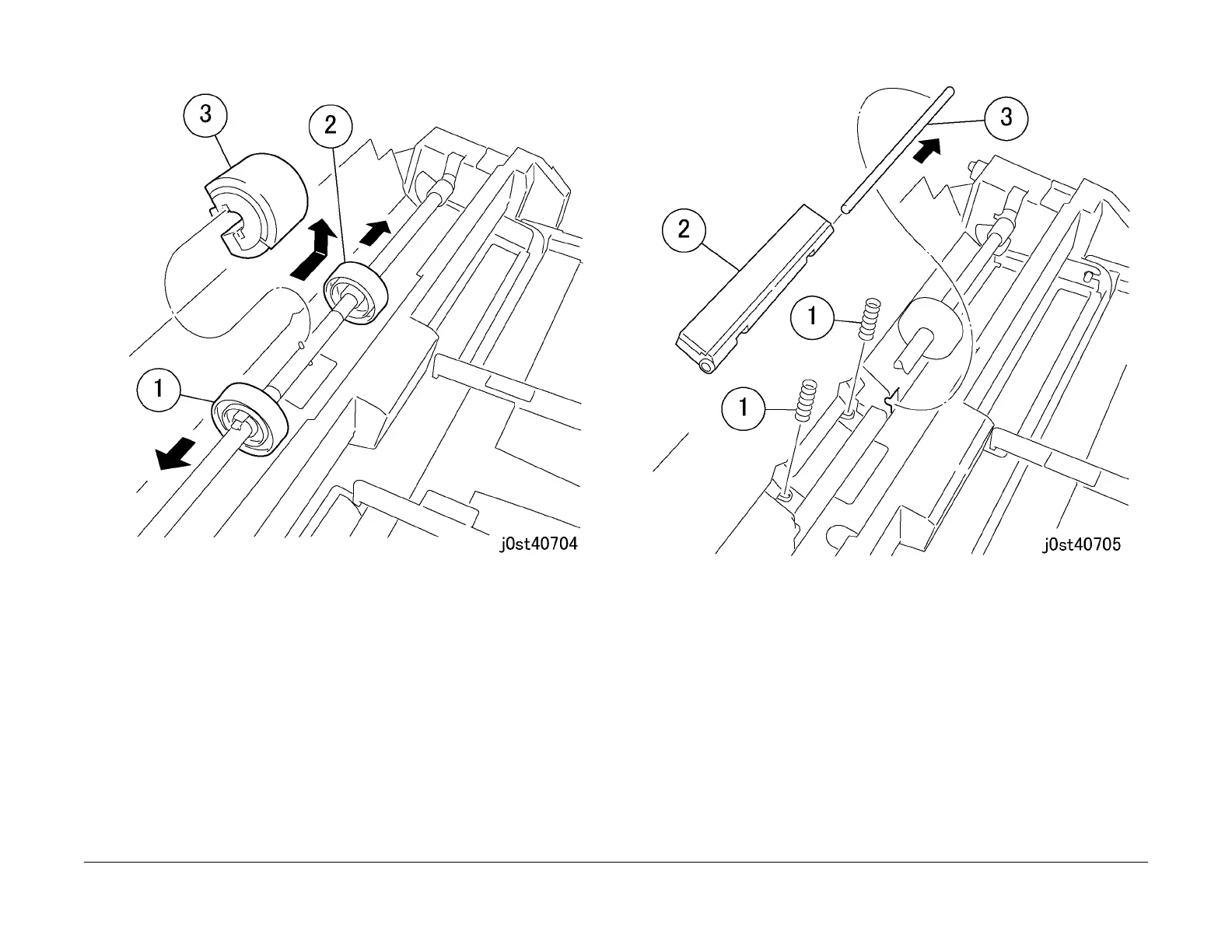

Figure 2 Removing the MPT Feed Roll (j0st40704)
4. Remove the MPT Retard Pad. (Figure 3)
1.Remove the springs (x2).
2.Remove the MPT Retard Pad.
3.Pull out the shaft.
Figure 3 Removing the MPT Retard Pad (j0st40705)
Replacement
1. To install, carry out the removal steps in reverse order.
