Xerox WorkCentre 5222 - Removing the Set Clamp Home Sensor (J0 Fa42223); Removing the Set Clamp Home Sensor Assembly (J0 Fa42222)

February, 2008
4-183
WorkCentre 5225, 5230
REP 22.4.3
Repairs and Adjustments
Launch Version
4. Remove the Set Clamp Home Sensor Assembly. (Figure 2)
(1)Remove Screw.
(2)Remove Set Clamp Home Sensor Assembly.

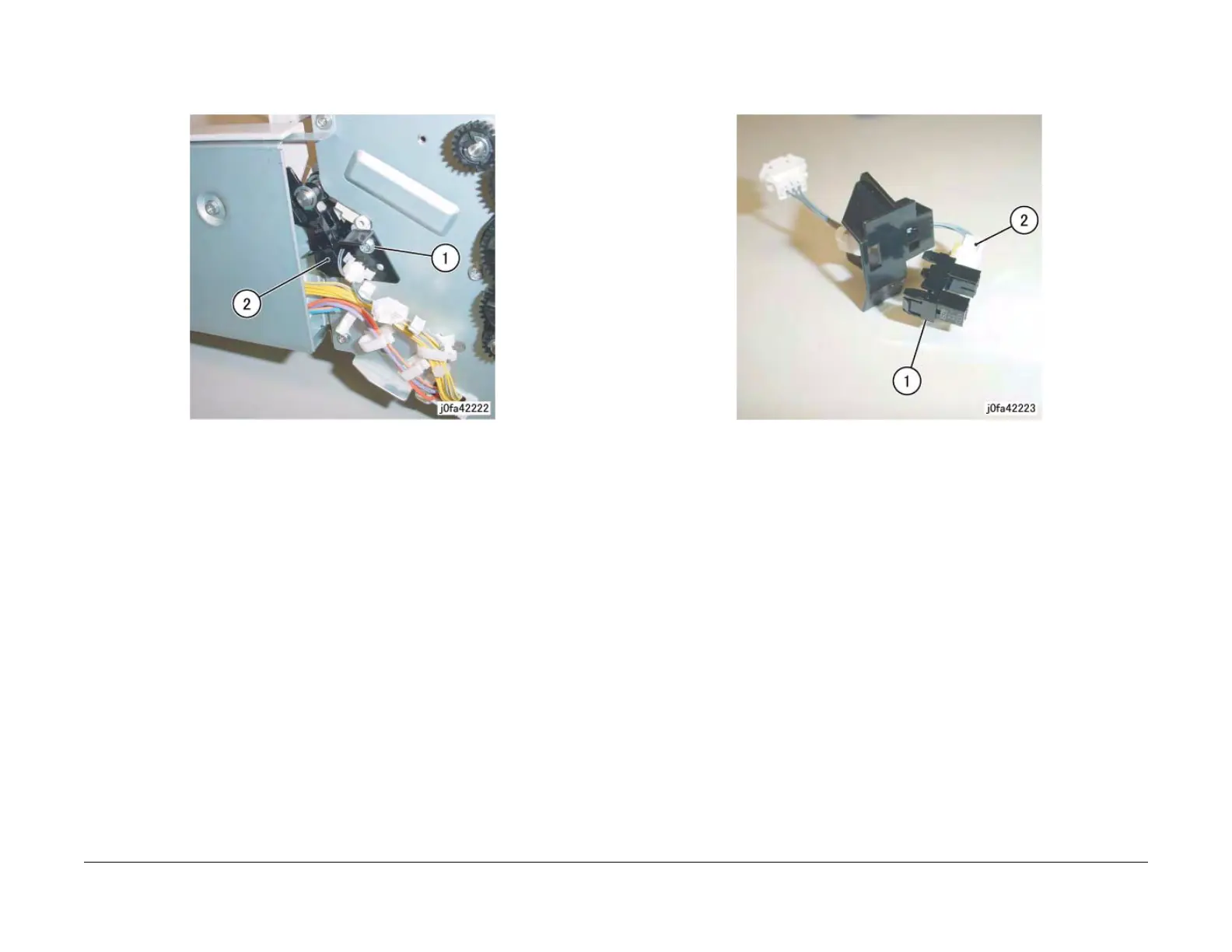

Figure 2 Removing the Set Clamp Home Sensor Assembly (j0fa42222)
5. Remove the Set Clamp Home Sensor. (Figure 3)
(1)Remove Set Clamp Home Sensor from Bracket.
(2)Disconnect Connector.
Figure 3 Removing the Set Clamp Home Sensor (j0fa42223)
Replacement
1. Reverse the removal procedure for replacement.
