Maintenance

194 Xerox

WorkCentre

7220/7220i/7225/7225i Color Multifunction Printer

User Guide

To clean the laser windows:

1. Turn off the secondary power switch, then wait 10 seconds after the touch screen goes dark before

proceeding.

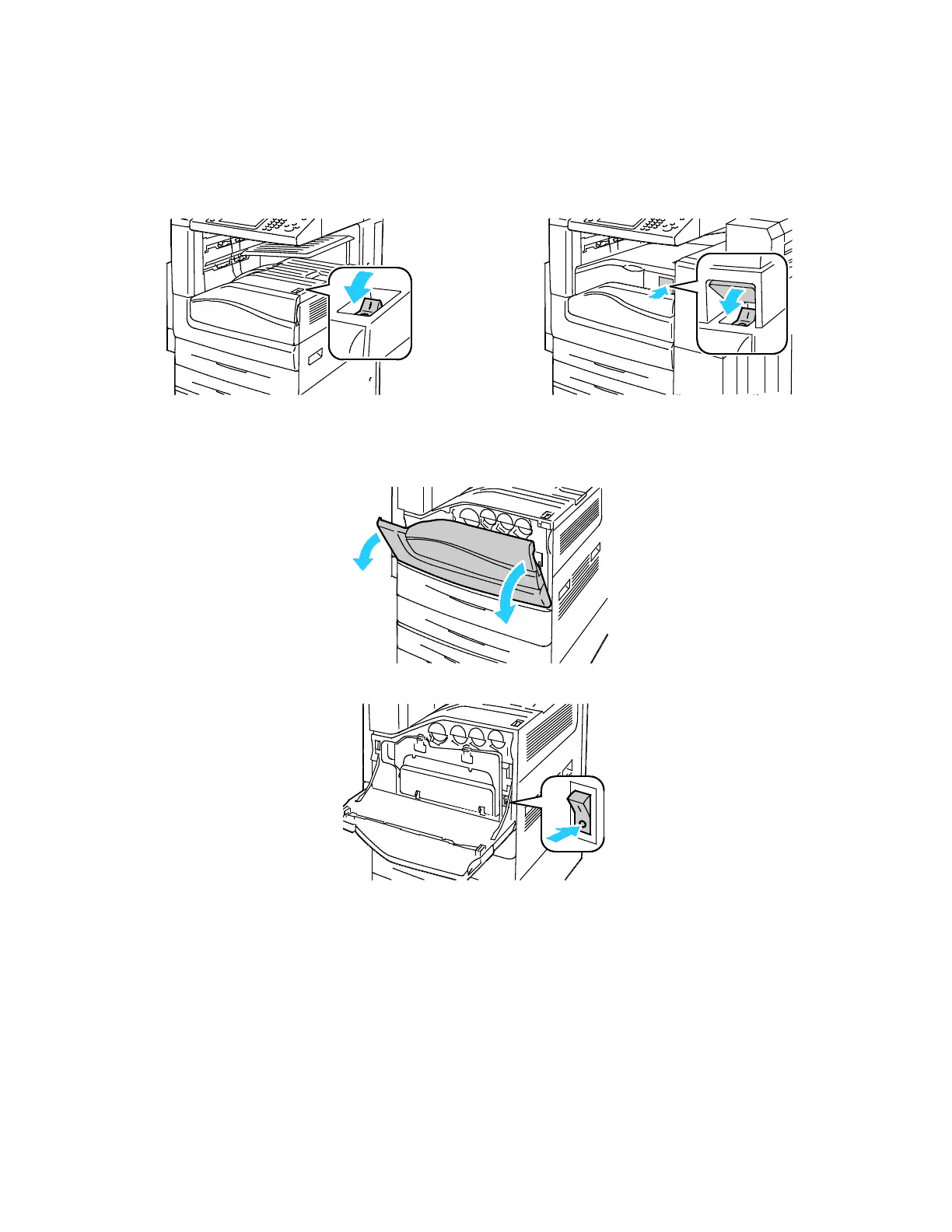

Secondary Power Switch Secondary Power Switch with Office Finisher LX

2. Open the front door.

3. Turn off the main power switch.
